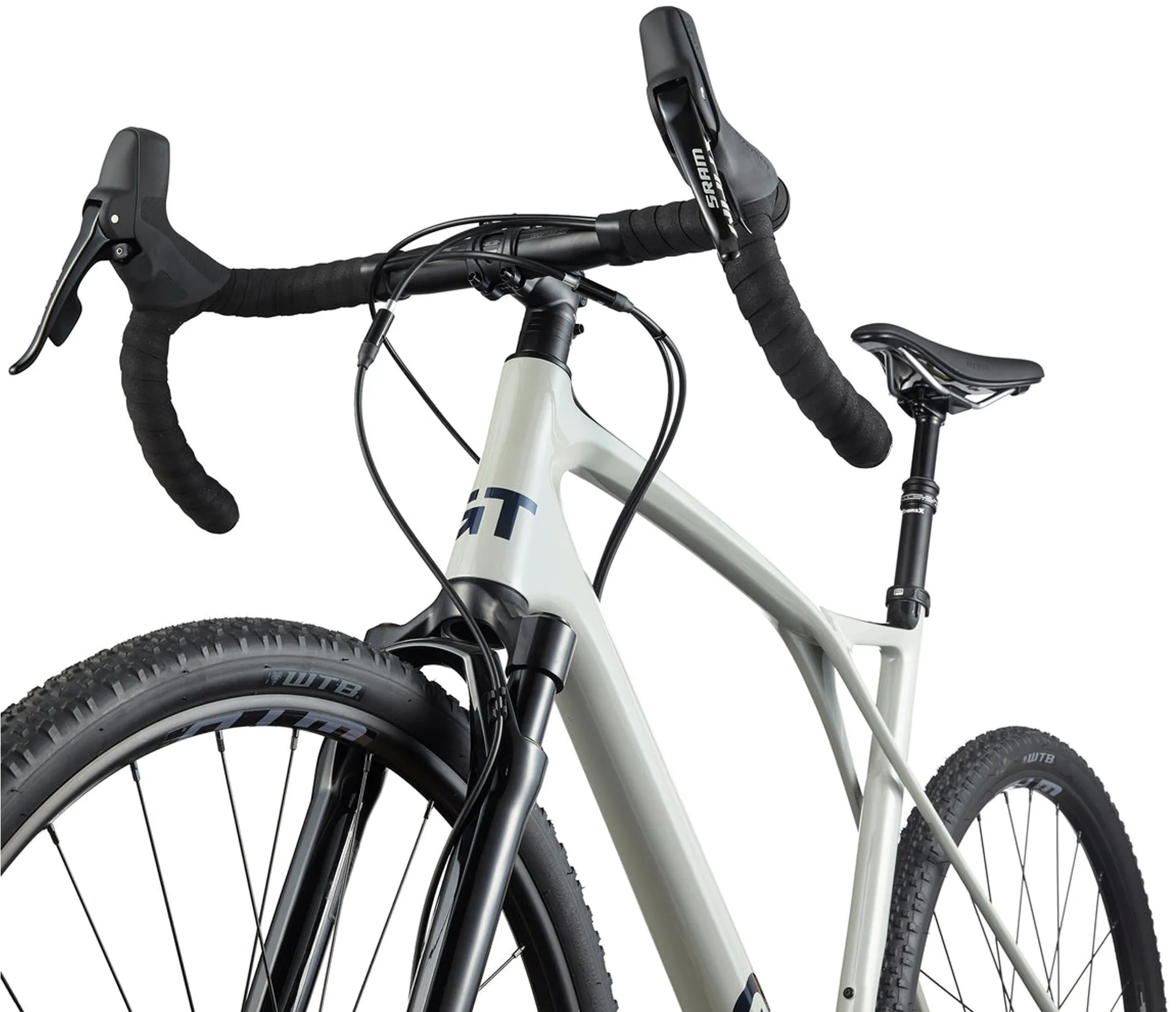

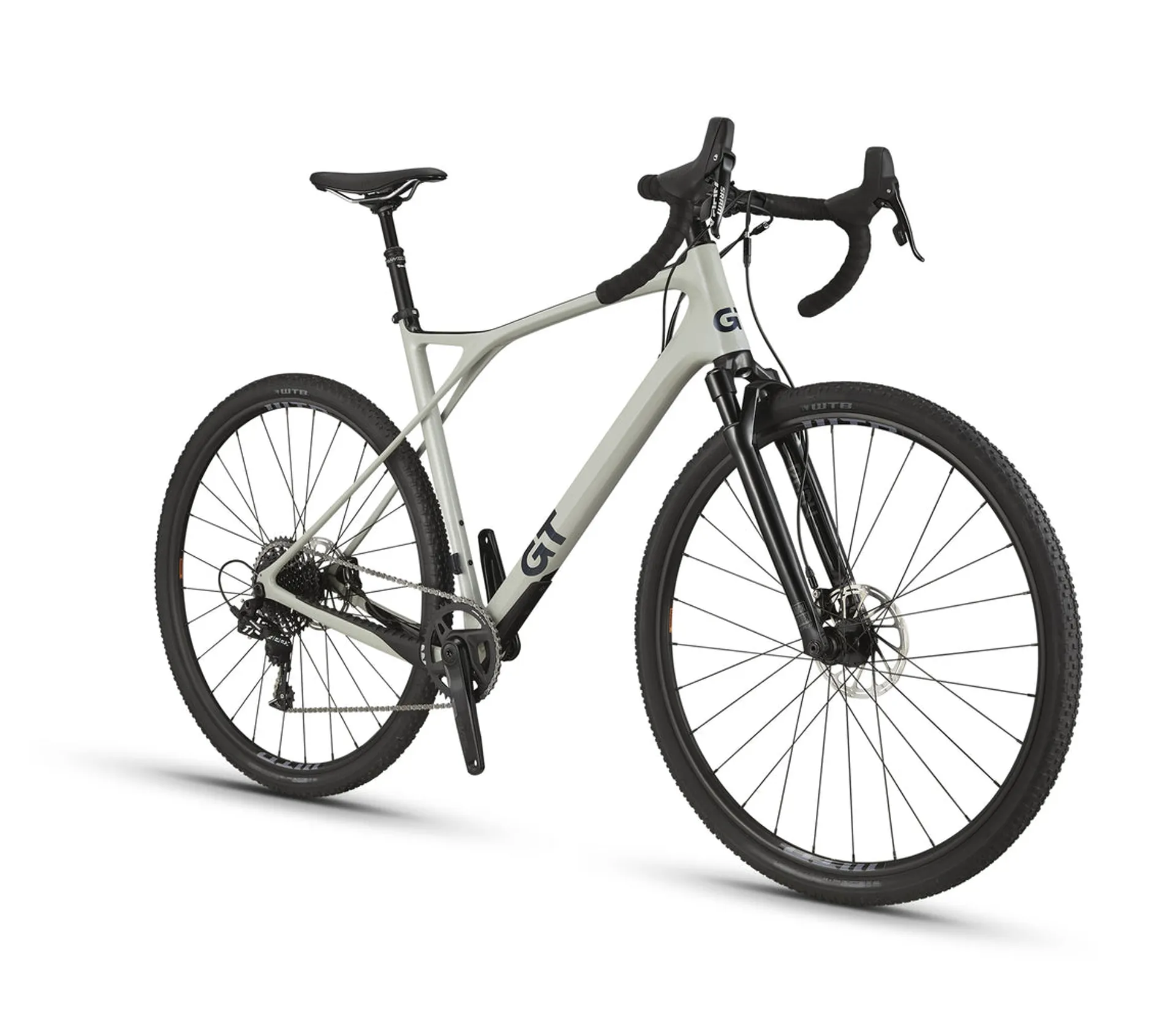

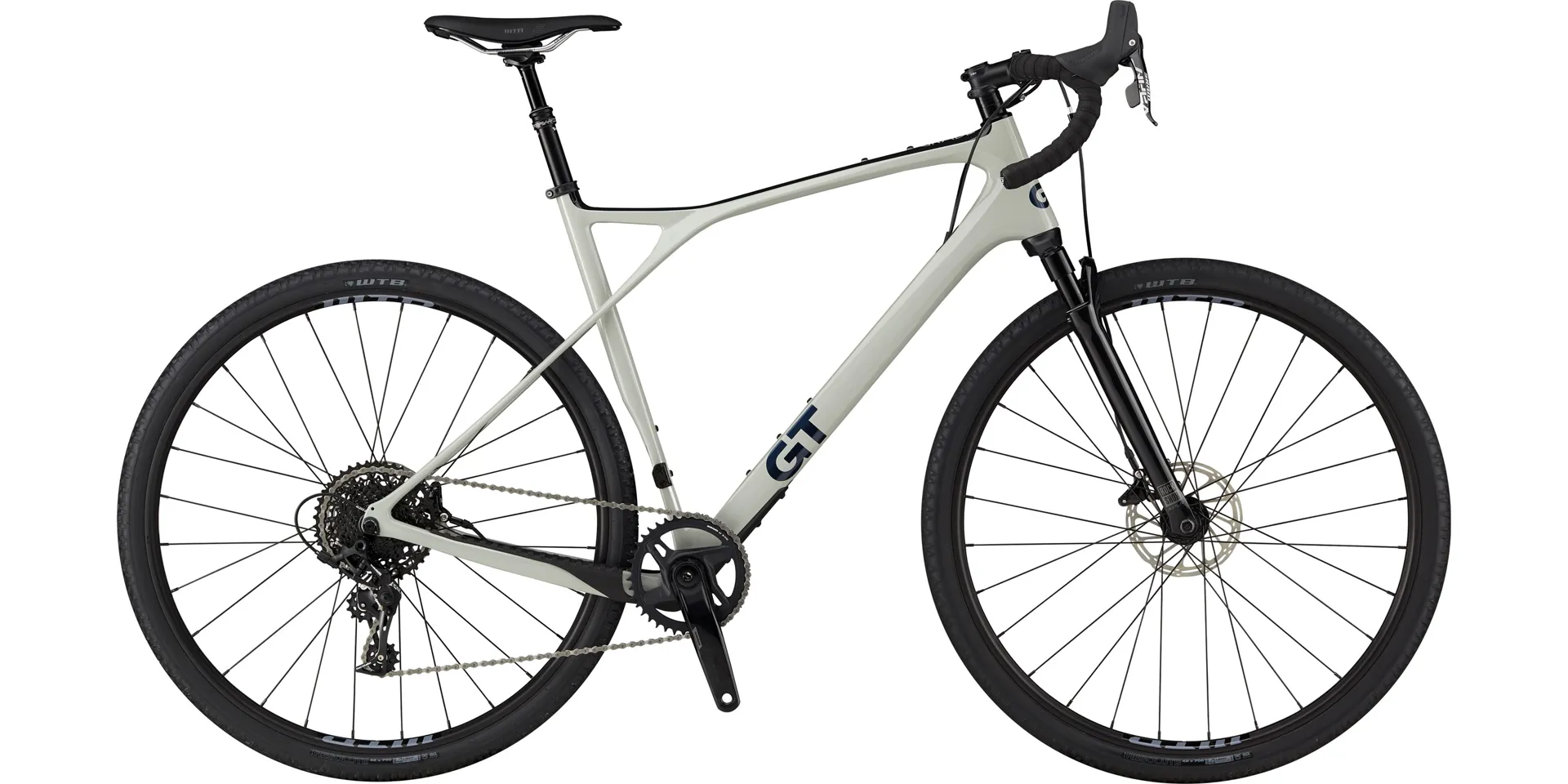

GT Grade Carbon X Gravel Bike in Battle Ship Grey

Season:2023

Brand:Gt

Code:G11402M10BattleShipGRY

The GT Grade Carbon X in now exclusive to Spokes.

Award winning carbon gravel bike with no limits for adventures with no plan. Go faster, farther and funner with Rockshox Rudy XPLR 40mm travel fork and 50mm Trans-X dropper post.

Features:
  • RockShox Rudy XPLR 40mm fork
  • TransX Dropper Post 50mm

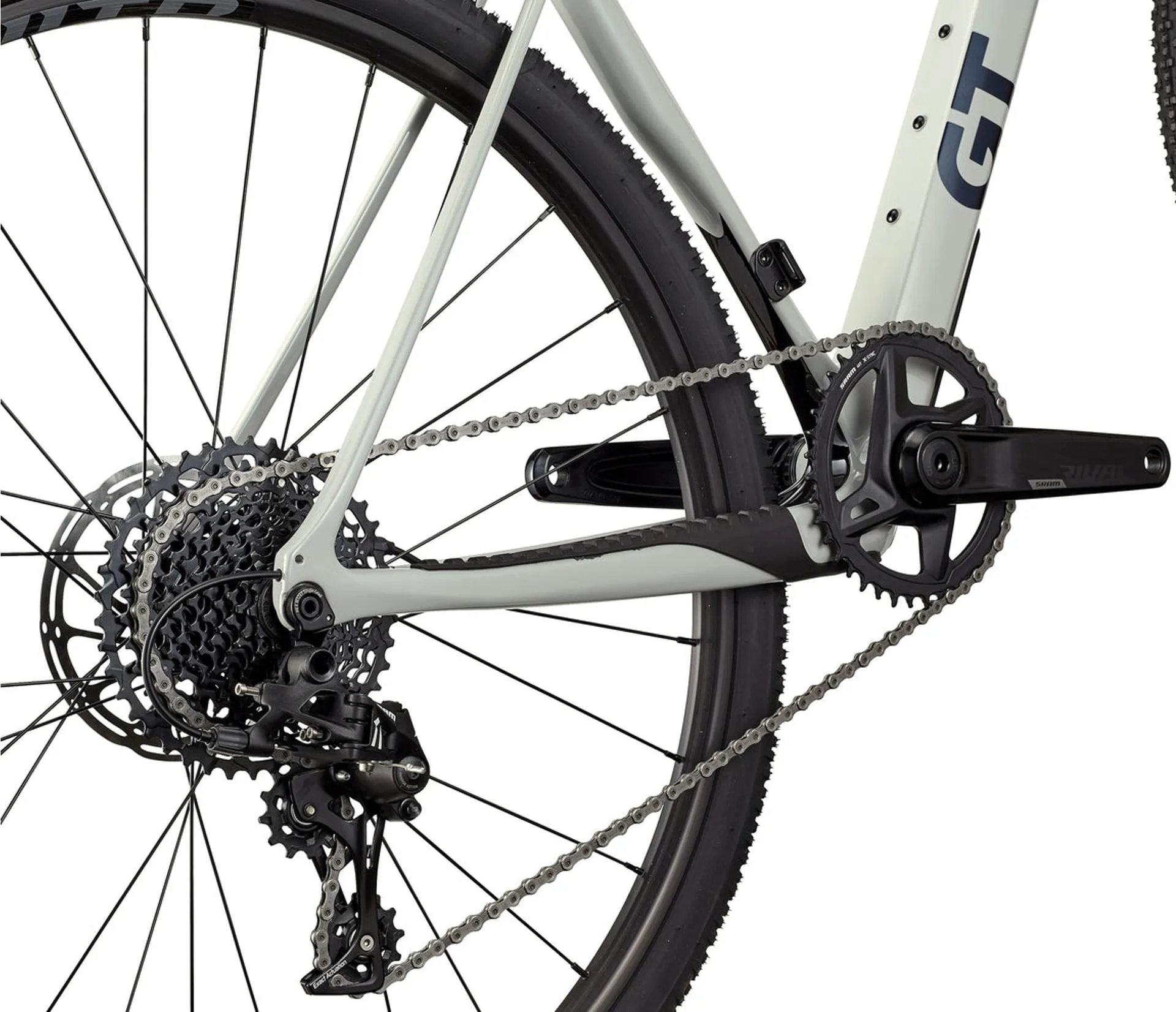

  • SRAM Apex1 Drivetrain
Gravel Travel

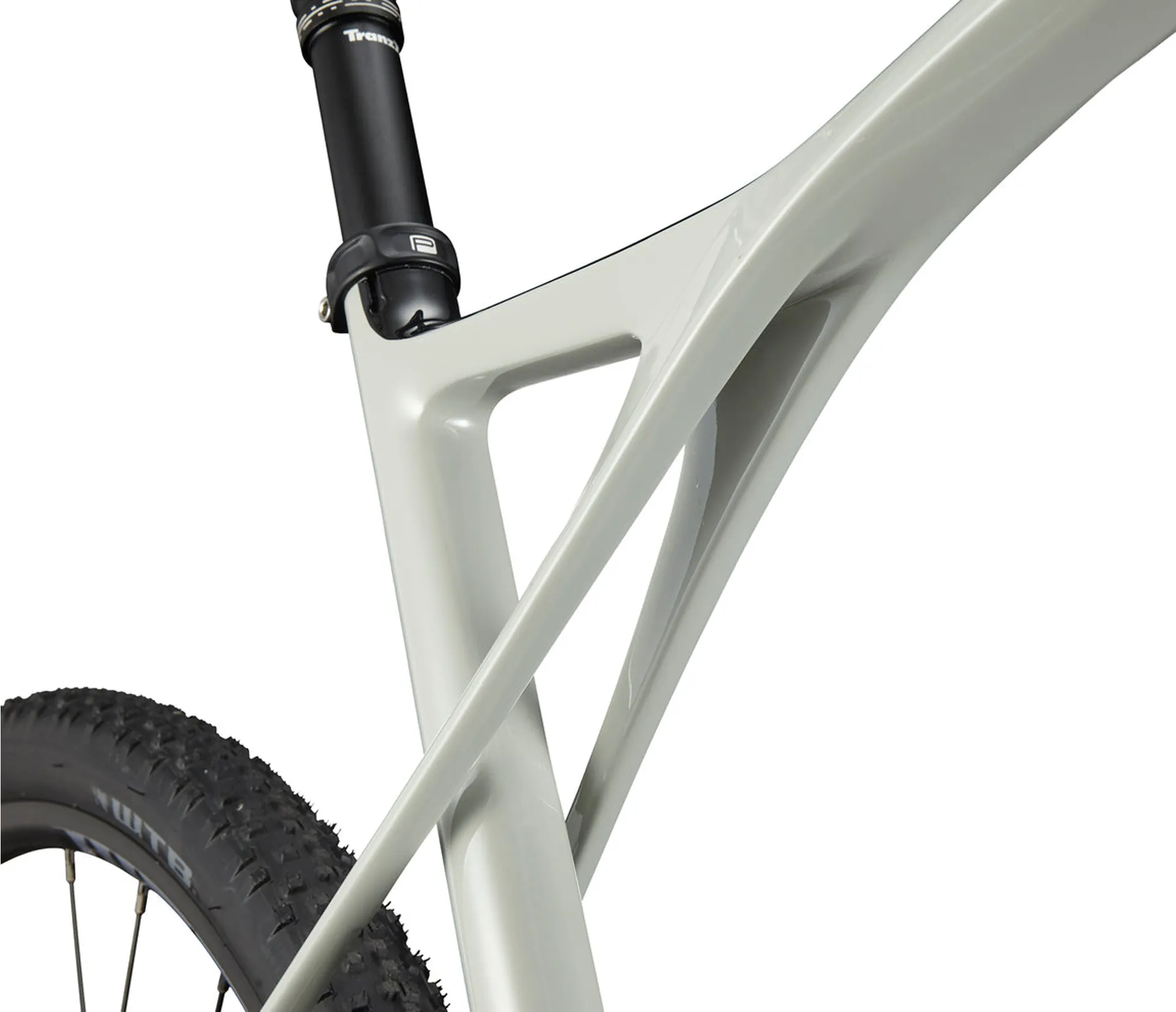

The Grade frame’s Triple Triangle design with floating stays offer as much as 30mm of “Gravel Travel” without rubber bumpers, pivots or mechanical features. This was achieved in part by our Dual Fiber Dynamics (DFD) located in the floating stays - a combination of low modulus, solid core, long strand glass fibers molded to an optimum shape and then wrapped in carbon for added strength and smooth transitions.

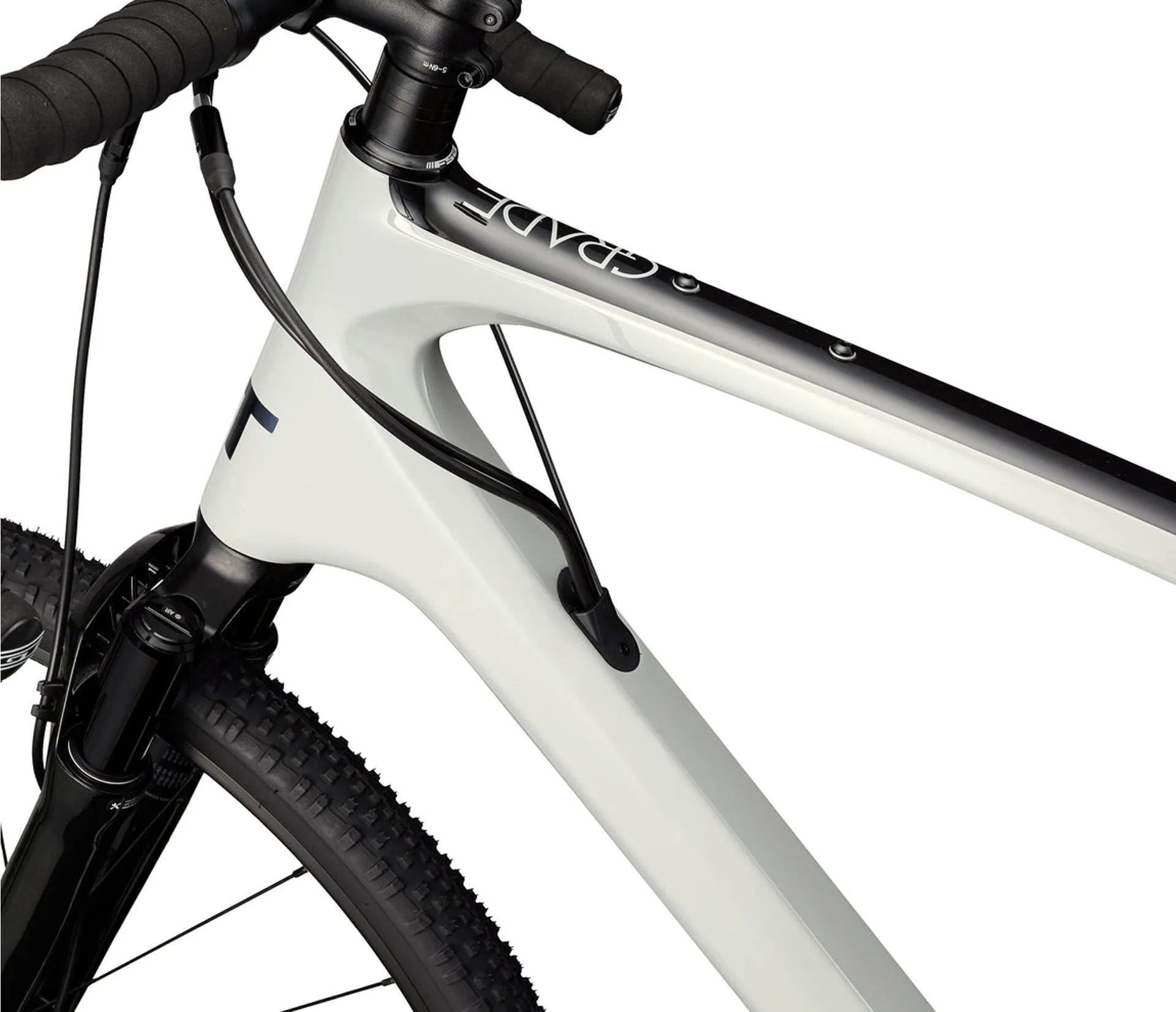

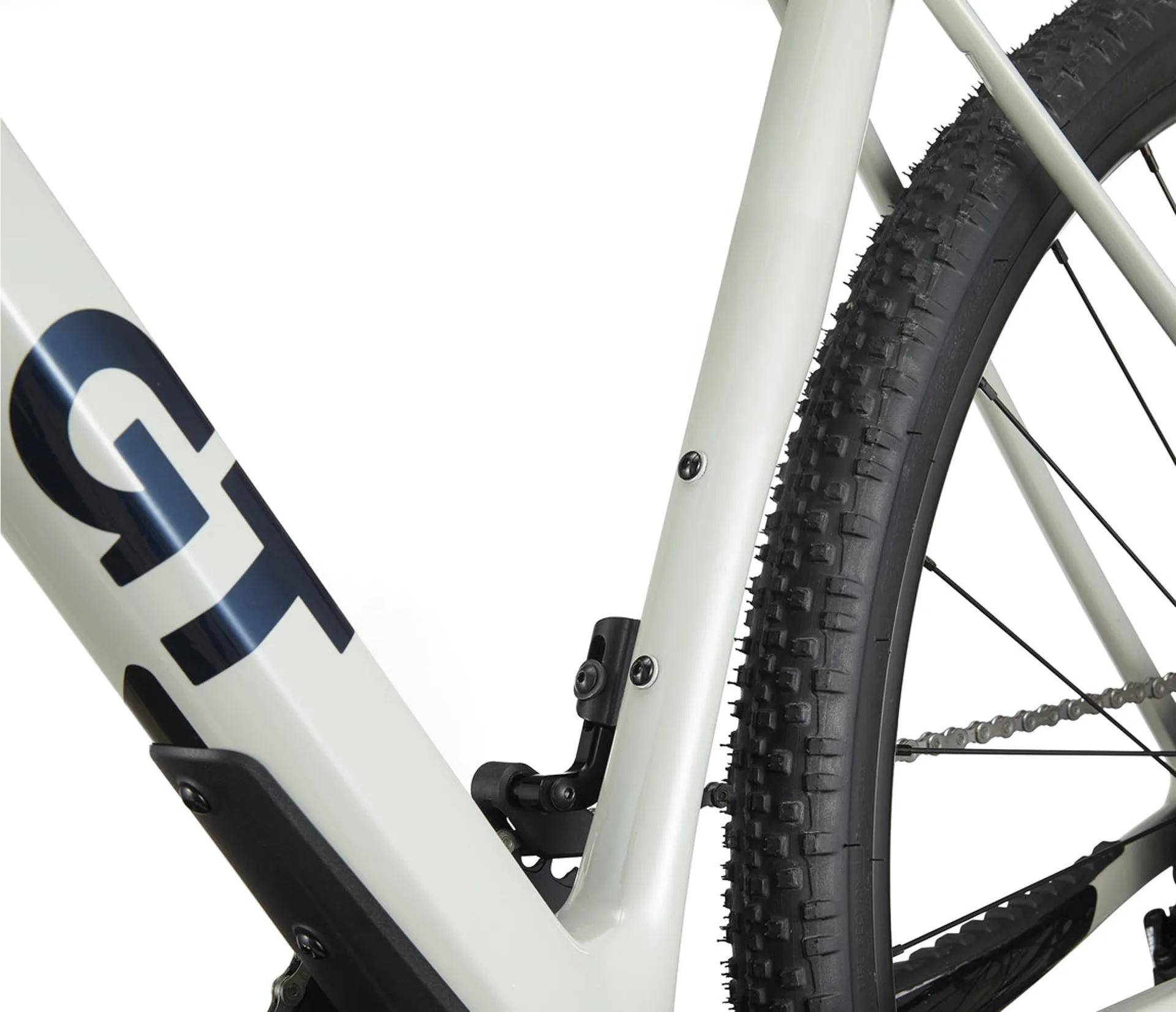

Integrated Frame Protection
Grade is just as comfortable on rough single track than it is on smooth tarmac. So, we’ve added robust frame protection on the downtube for the inevitable rock strikes and on the chainstay to safeguard against chain slap.

Suspension fork compatible
If the rough and chunky are your preference and you need more than Grade’s 30mm of Gravel Travel offers, add a suspension fork for even more rowdiness!
Technical Information
  • Frame
    Grade Carbon Frame, Triple Triangle Design feat. Floating Seatstays, 12x142mm Thru Axle
  • Fork
    Rockshox Rudy XPLR, 40mm, 51mm offset, Solo Air
  • Rear Shock
    Null
  • Rims
    WTB ST Light i23 TCS 2.0, 28h, Tubeless Ready
  • Hubs
  • Front Hub
    Formula, 12x100mm 6-Bolt
  • Rear Hub
    Formula, 12x142mm 6-bolt
  • Spokes
    Null
  • Tires
    WTB Resolute TCS Light, 700x42c, SG2 Dual DNA Compound, TCS Aramid Bead
  • Front Tire
    WTB Resolute TCS Light, 700x42c, SG2 Dual DNA Compound, TCS Aramid Bead
  • Rear Tire
    WTB Resolute TCS Light, 700x42c, SG2 Dual DNA Compound, TCS Aramid Bead
  • Pedals
    Null

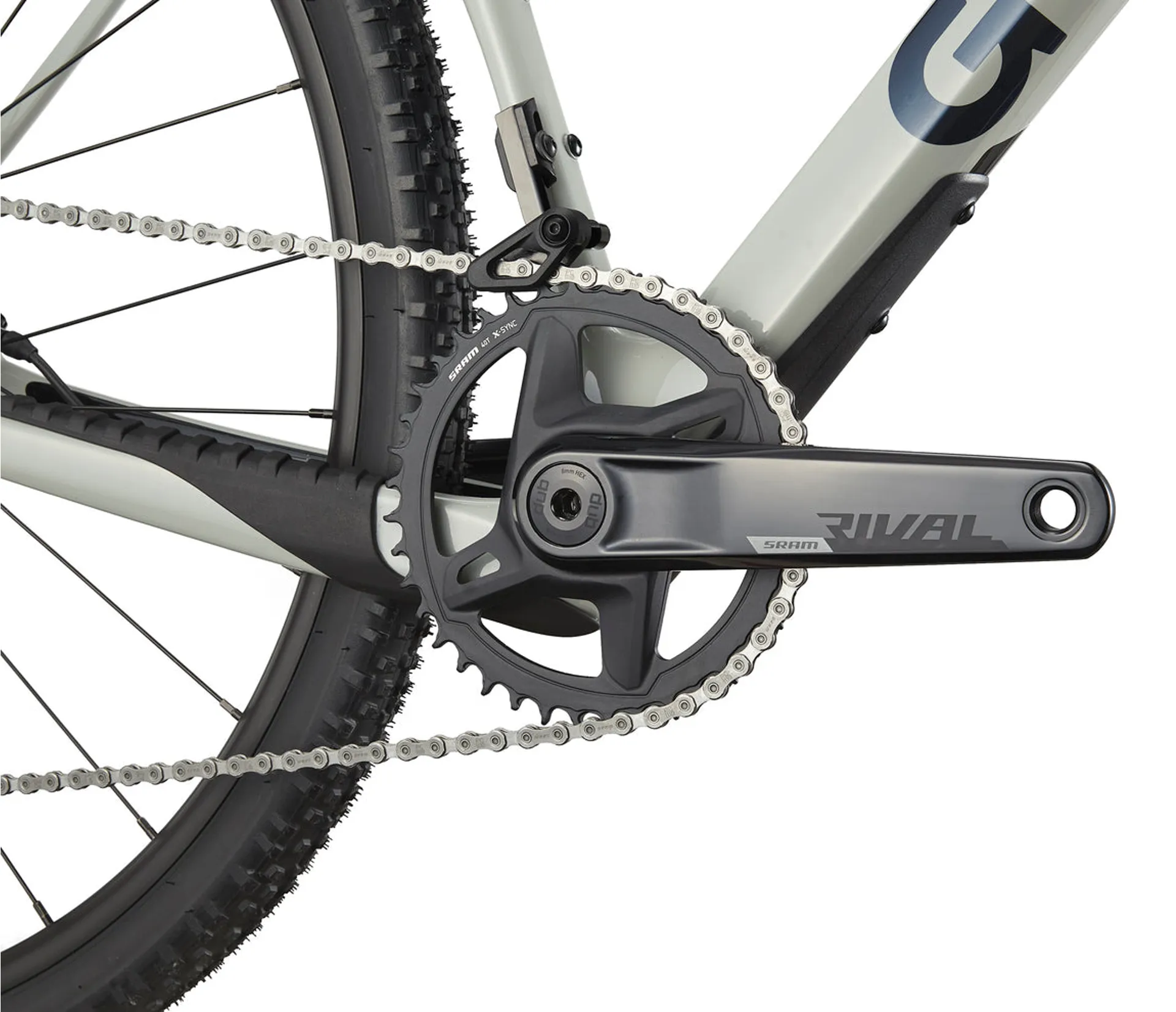

  • Crank
    SRAM Apex 1 Wide, DUB, 40T
  • Bottom Bracket
    SRAM DUB BSA, 68mm Wide
  • Chain
    SRAM Apex, 11-speed

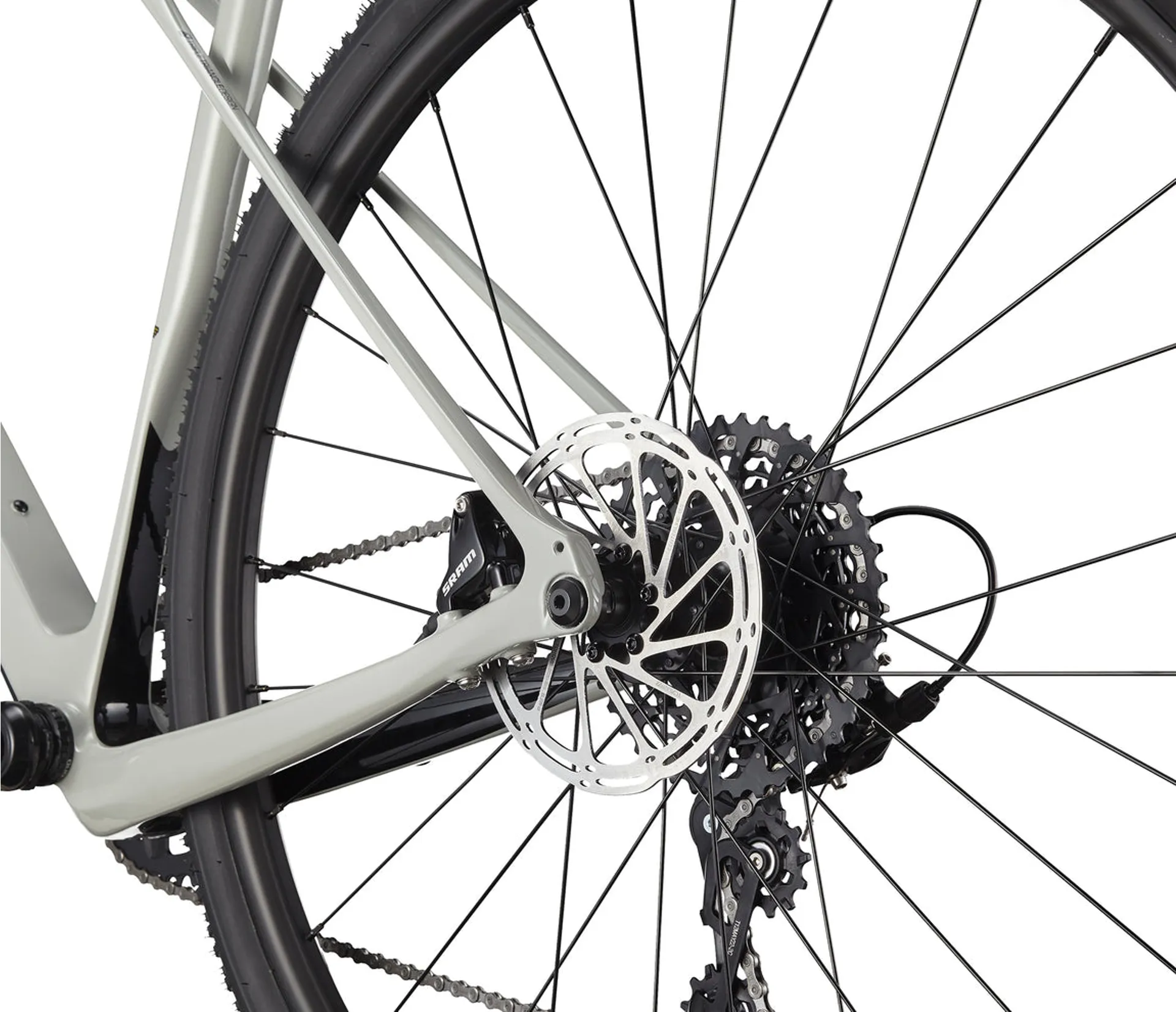

  • Rear Cogs
    SRAM PG-1130, 11-42T
  • Front Derailleur
    Null
  • Rear Derailleur
    SRAM Apex1
  • Shifters
    SRAM Apex1, Left Side Dropper Actuator
  • Handlebar
    GT DropTune RS, Alloy, 16° Flare
  • Grips
    GT Gravel Grip Premium Tape
  • Stem
    GT 3D Forged SL Alloy, 31.8
  • Headset
    FSA No.42 ACB
  • Brakes
    SRAM Apex 1, 160/160mm
  • Brake Levers
    Null
  • E-bike Display
    Null
  • E-Bike Battery
    Null
  • E-bike Charger
    Null
  • E-bike Drive Unit
    Null
  • Saddle
    WTB Silverado SL Fusion
  • Seatpost
    TranzX Dropper Post, 27.2mm (S/M-50mm, L/XL-70mm)
  • Weight
  • Chain Device
    Null
  • Material
    Carbon
Sizing Information

GT Bicycles Size Guide

Inches5'0" - 5'3"5'3" - 5'6"5'6" - 5'9"5'9" - 6'0"6'0" - 6'3"6'3" - 6'6"
cm152 - 160160 - 168168 - 175175 - 183183 - 191191 - 198
Road/Gravel BikeXS - 50cmS - 52cmM - 54cmM - L - 56cmL - 58cmXL - 60cm
Hybrid BikeXSSMM - LLXL
Mountain BikeXSSMM - LLXL


Geometry

geoDiagram
SMLXL
Reach385mm405mm425mm445mm
Stack550mm577mm603mm630mm
Head Tube Angle70°70°70°70°
Seat Tube Length450mm500mm550mm600mm
Front Center430mm430mm430mm430mm
BB Height284mm284mm284mm284mm
BB Drop75mm75mm75mm75mm
Wheelbase1040mm1069mm1099mm1129mm
Chainstay Length440mm440mm440mm440mm
Head Tube Length106mm134mm162mm191mm
Top Tube Length530mm560mm591mm623mm
Seat Tube Angle73°73°73°73°
Standover Height730mm753mm792mm816mm
Eye to Eye LengthN/AN/AN/AN/A
