Platform
Supersix Evo
Model Name
Supersix Evo Hi-Mod 2
Model Code
C11015u

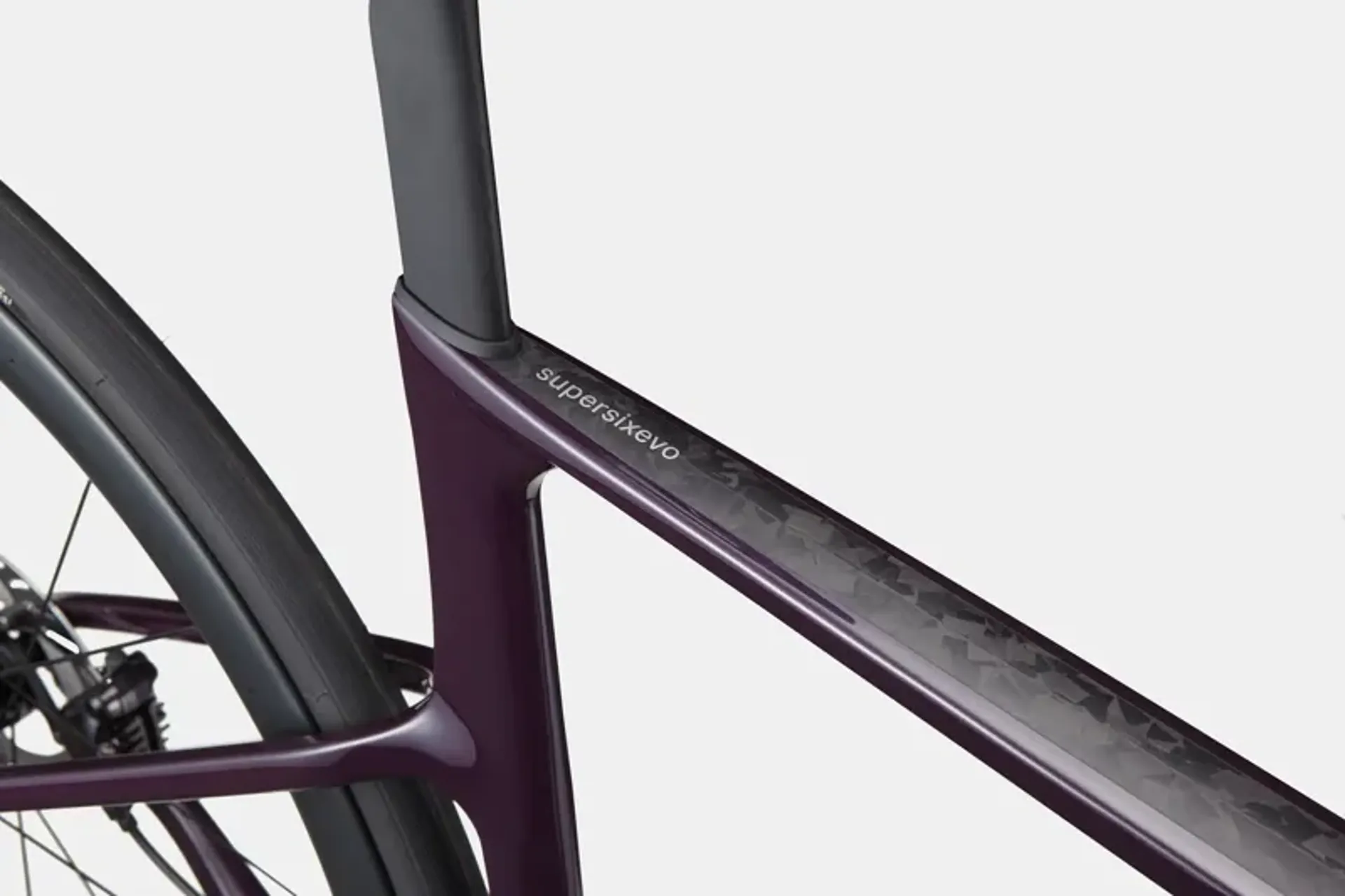

Frame
Supersix Evo Hi-Mod Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Fork
Supersix Evo Hi-Mod Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Headset
Integrated, 1-1/8" - 1-1/4"

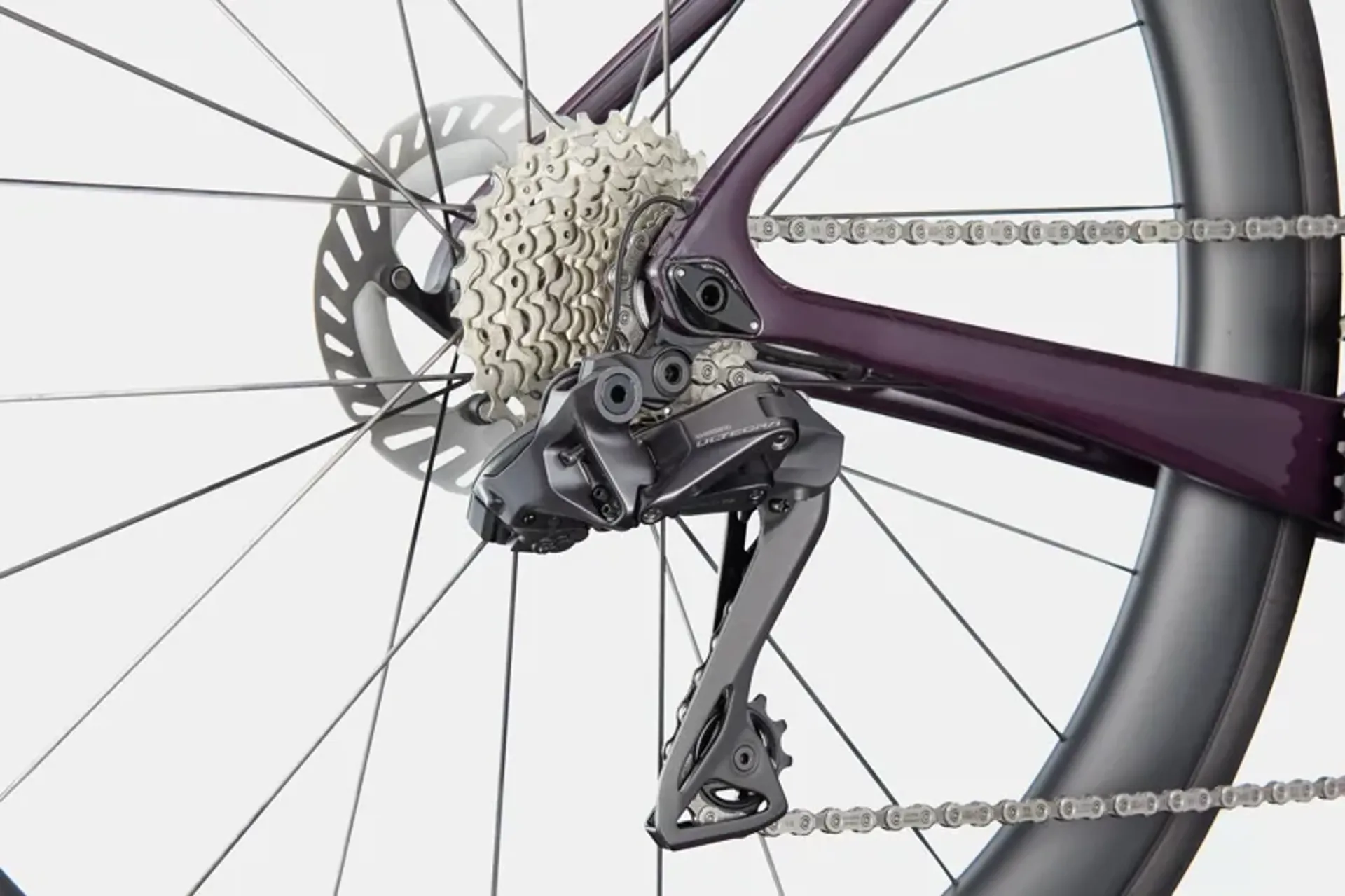

Rear Derailleur
Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Shifters
Shimano Ultegra Di2 R8170, wireless, 12-speed
Chain
Shimano Ultegra, 12-speed

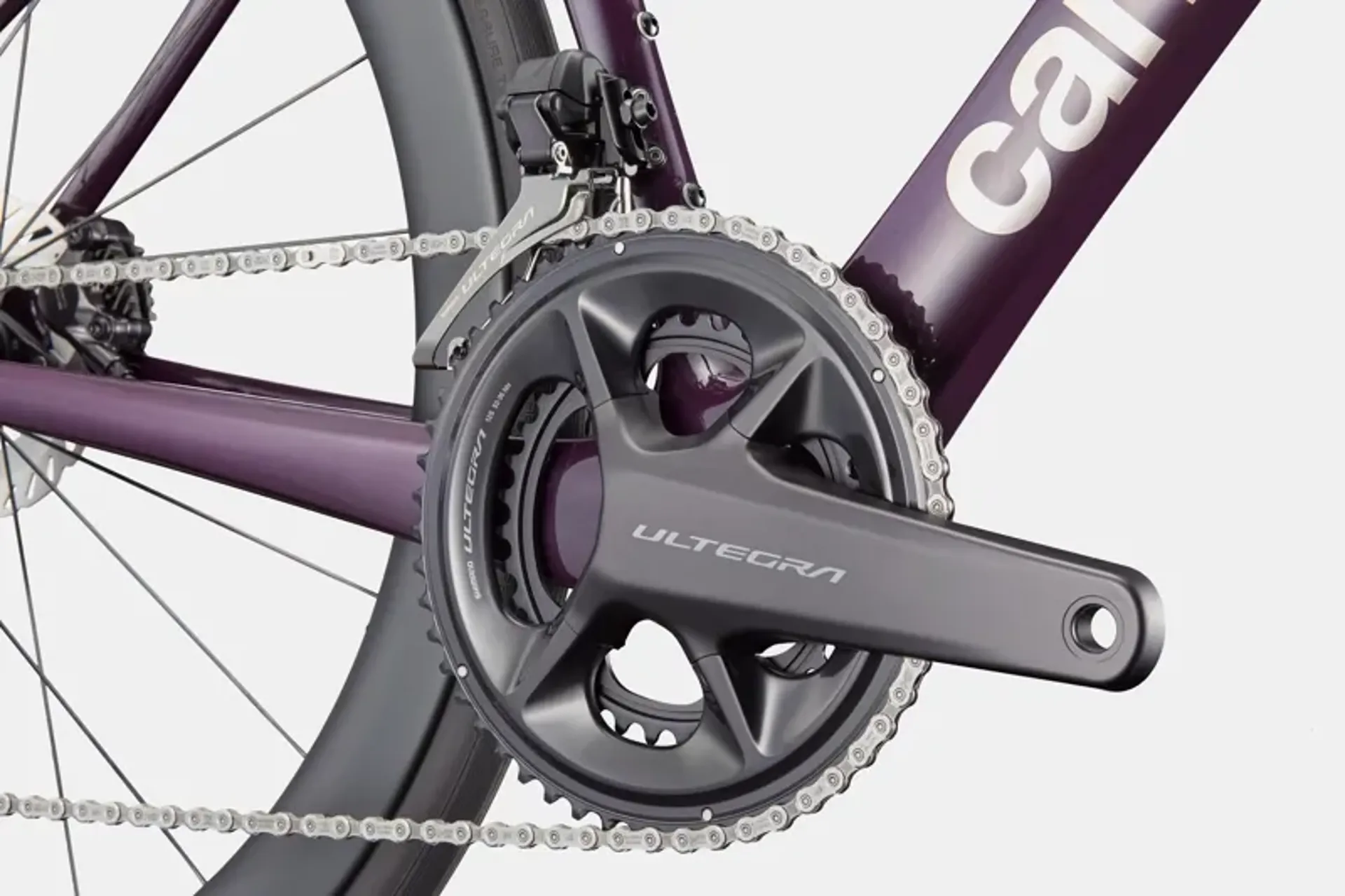

Crank
Shimano Ultegra R8100, 52/36
Rear Cogs
Shimano Ultegra R8100, 11-30, 12-speed
Bottom Bracket
Shimano BSA 68
Brakes
Shimano Ultegra R8170, 160/140mm CL800 rotors

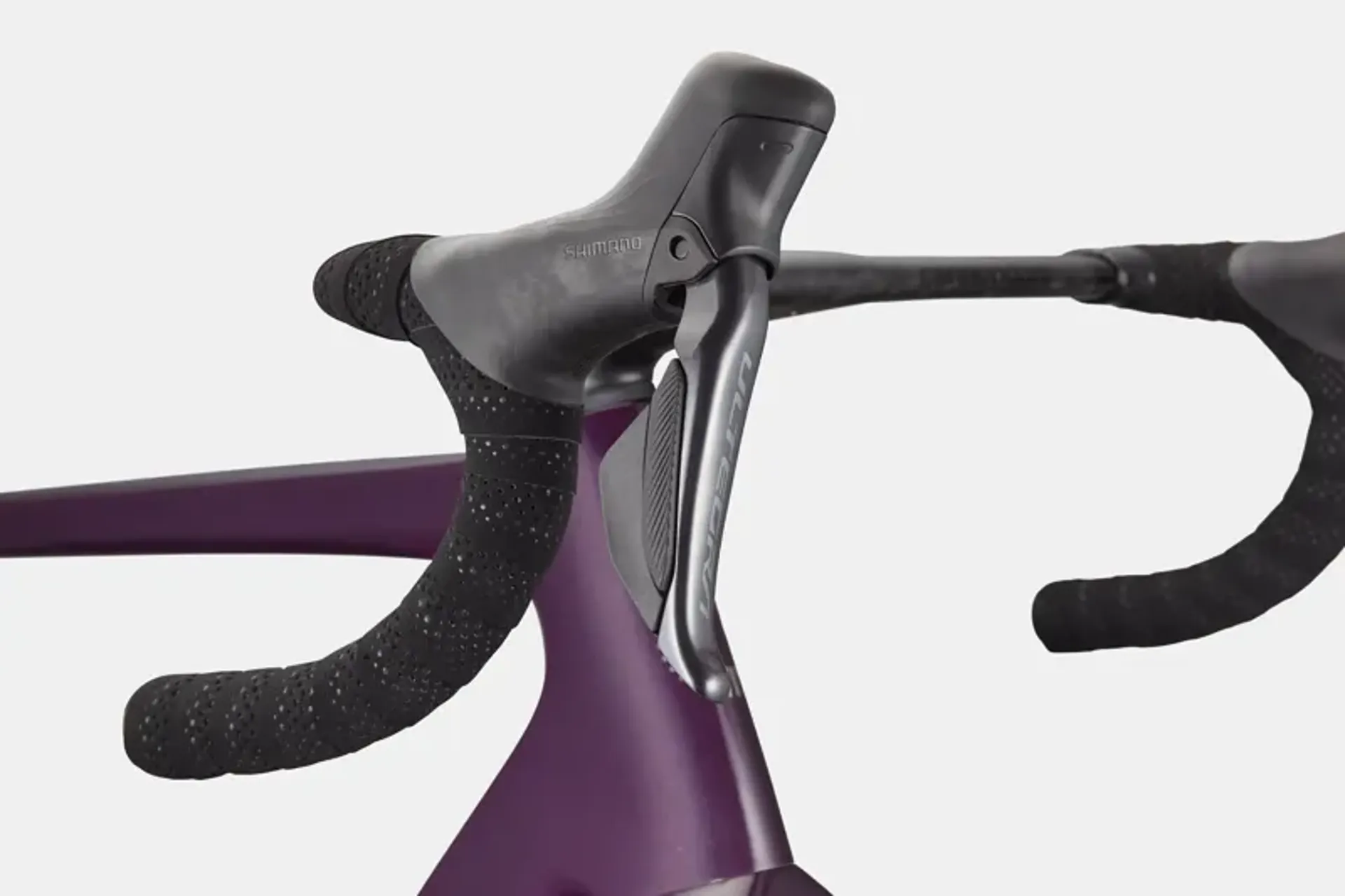

Brake Levers
Shimano Ultegra Di2 R8170 hydraulic disc
Front Hub
Hollowgram, sealed bearing 12x100mm centerlock
Rear Hub
Hollowgram, 12x142mm centerlock w/ DT Swiss 240 internals
Rims
Hollowgram R-SL 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
Spokes
DT Swiss Aerolite, straight pull
Tire Size
28
Wheel Size
700c
Tires
Vittoria Corsa N.EXT, 700x28c, tubeless ready
Front Tire
Vittoria Corsa N.EXT, 700x28c, tubeless ready
Rear Tire
Vittoria Corsa N.EXT, 700x28c, tubeless ready

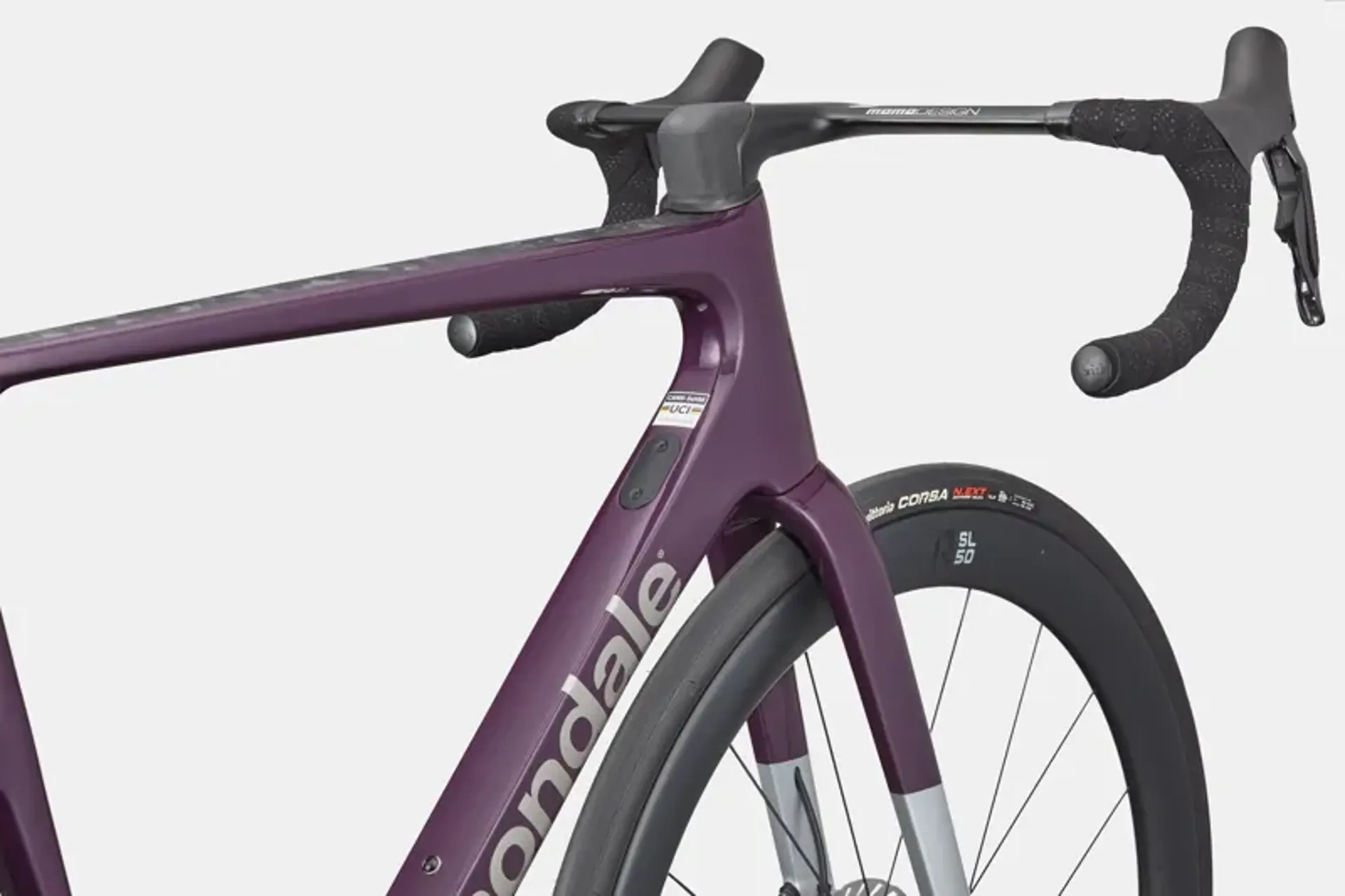

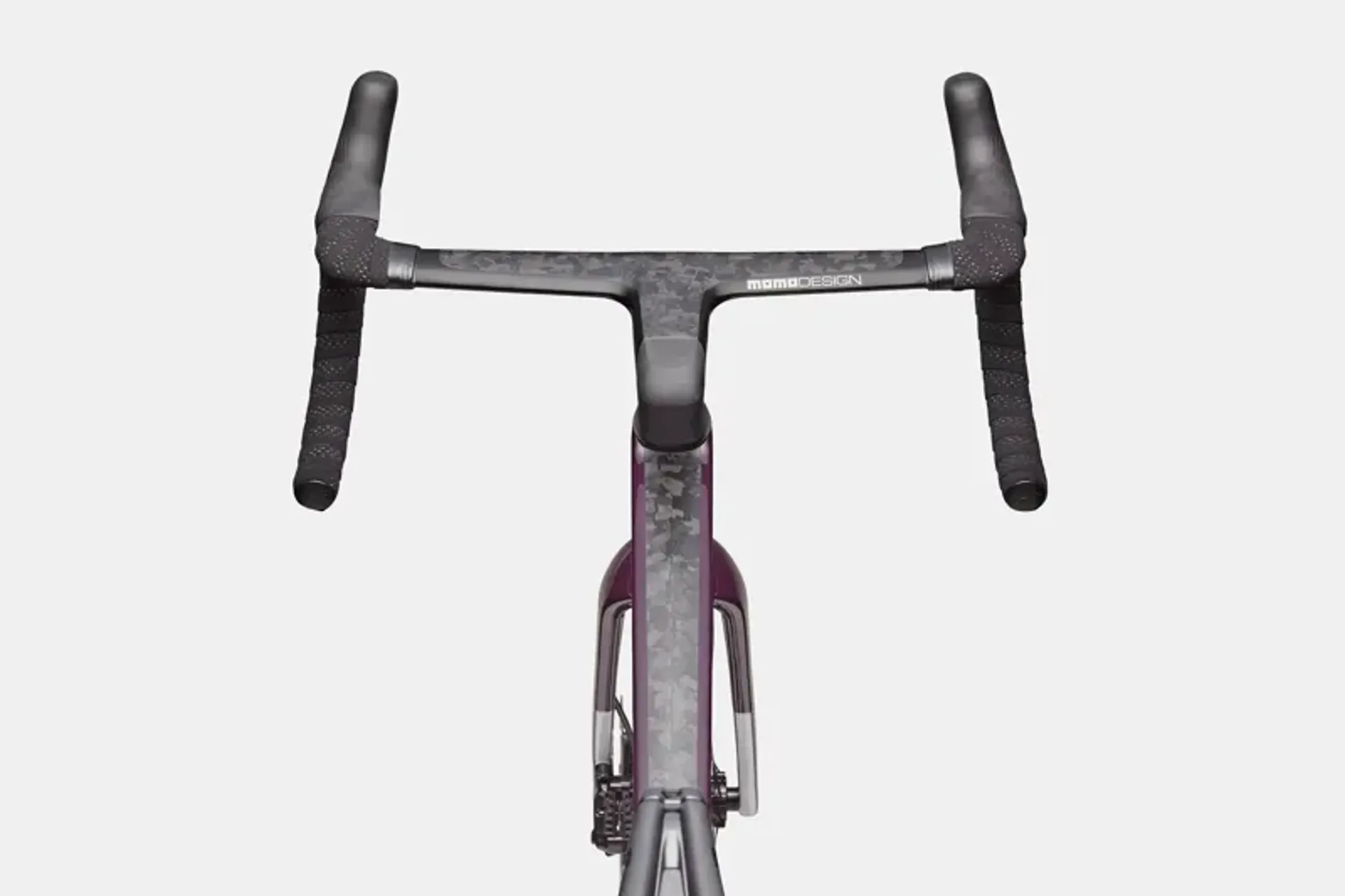

Handlebar
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush Soft, 3mm
Saddle
Prologo Dimension TiRox NDR
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Extra 1
Cannondale Gripper Aero Bottles & ReGrip Aero Cages, tubeless valves, Shimano EC300 charging connector
