Frame | Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12×157mm rear axle, 83mmBSAbottom bracket,HHGinternal cable routing,MAX. capacity dual raw Enduro bearings, shock mudguard,ISCG05, custom frame protectors. *Geometry kit included |
Rear Shock | Fox DHX2 Factory Kashima, 225×70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30×8mm bottom bushings |
Shock Settings | ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs |
Fork | Fox 40 29 FloatFITGRIP2EVOLFactory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20×110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload |
Headset | ONOFFMercurium 1.5 ZS for 1-1/8” steerer tube, 41×30.15×7×45ºx45ºACBsealed bearings, geometry kit cups, external diameter 56mm |
Stem | ONOFFKrypton DHCNCIntegrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2×6mm spacer |
Handlebar | Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore |
Grips | Renthal, double lock-on, kevlar compound, 130mm |
Seatpost | SDGMicro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment |
Saddle | SDGI-Fly 2.0 I-Beam, high-density PU foam, Cordura sides |
Front Brake | Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor withICEtechnology, resin pads with cooler |
Rear Brake | Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor withICEtechnology, resin pads with cooler |
Rims | e*thirteen LG1 Race Carbon, IW30 29” Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes |
Spokes | e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers |
Front hub | e*thirteen Boost 20×110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear hub | e*thirteen Superboost 12×157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
Front Tyre | Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
Rear Tyre | Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
Crankset | Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm |
Chainring | 36T, aluminum,BCD104 |
Bottom Bracket | Shimano 83mm |
Chain | Shimano HG95, 10s |
Chain Guide | E.13 Vario Compact Upper Slider, Alloy backplate,DMB(Direct mount Bashguard) Lower Slider 34-36t,ISCG05 adjustable upper slider |
Rear Derrailleur | Shimano Saint RD-M820-SS, 10s, Shadow+, short cage |
Shifter | Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release |
Cassette | Shimano CS-HG500-10, 11-25T, 10s |

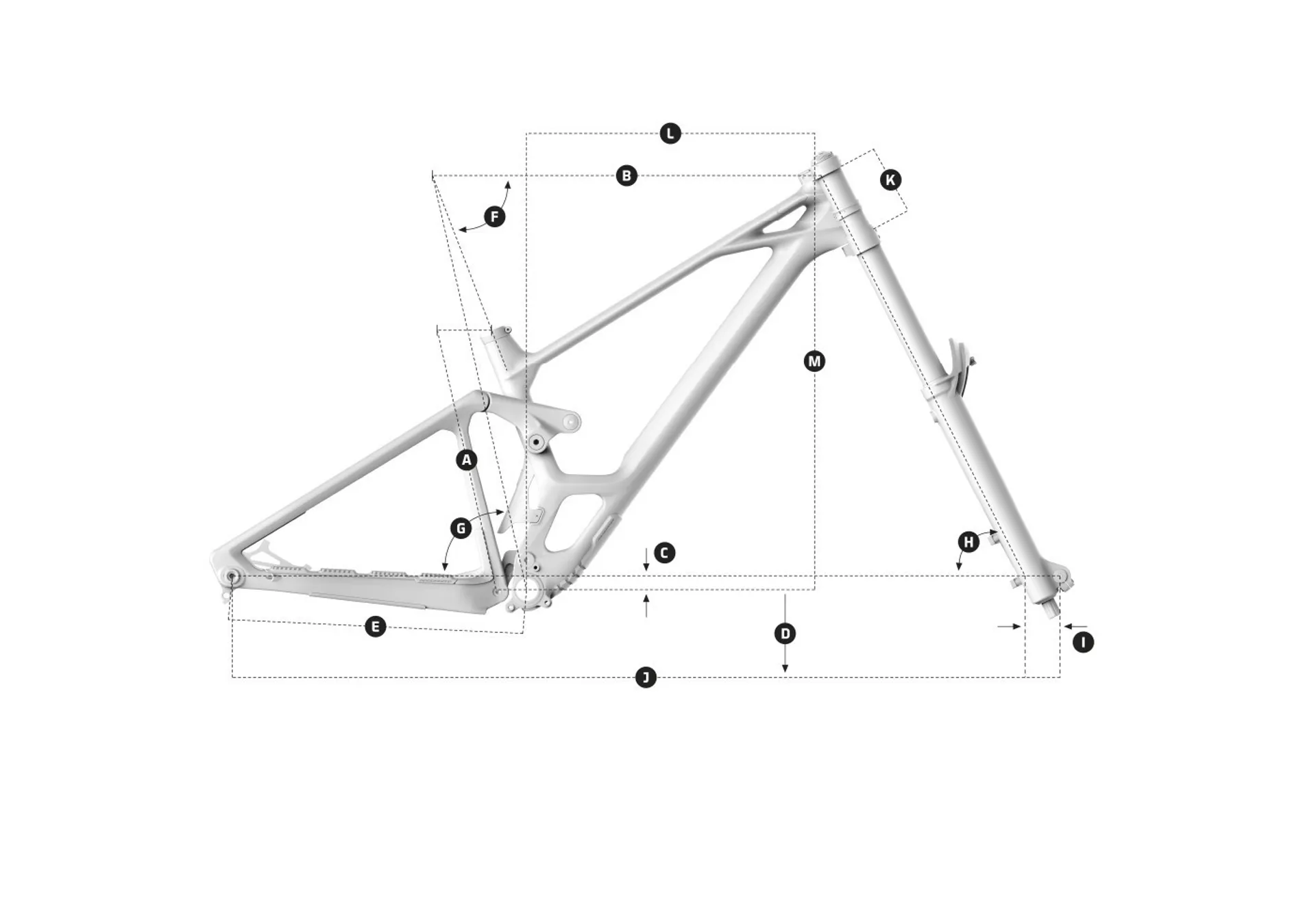

Others | Geometry kit included: +-1º / +-2º headset cups |
Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
