Ns Bikes Define AL 140 1 Mountain Bike - Grey
Ns Bikes Define AL 140 1 Mountain Bike - Grey
Ns Bikes

Ns Bikes Define AL 140 1 Mountain Bike - Grey

£3,599.00 £3,999.00 10% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS
----

Our policy lasts 30 days.

If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery

Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.
If you’ve done all of this and you still have not received your refund yet, please contact us at info@spokesofbagshot.com.

Sale items (if applicable)

Sale price items will be refunded at the price paid.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at customerserivce@spokesonline.com, and send your item to: Spokes Online, 55 High Street, Bagshot, GU19 5AH, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.
If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Spokes Online, 55 High Street, Bagshot, GU19 5AH, United Kingdom.
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.
Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

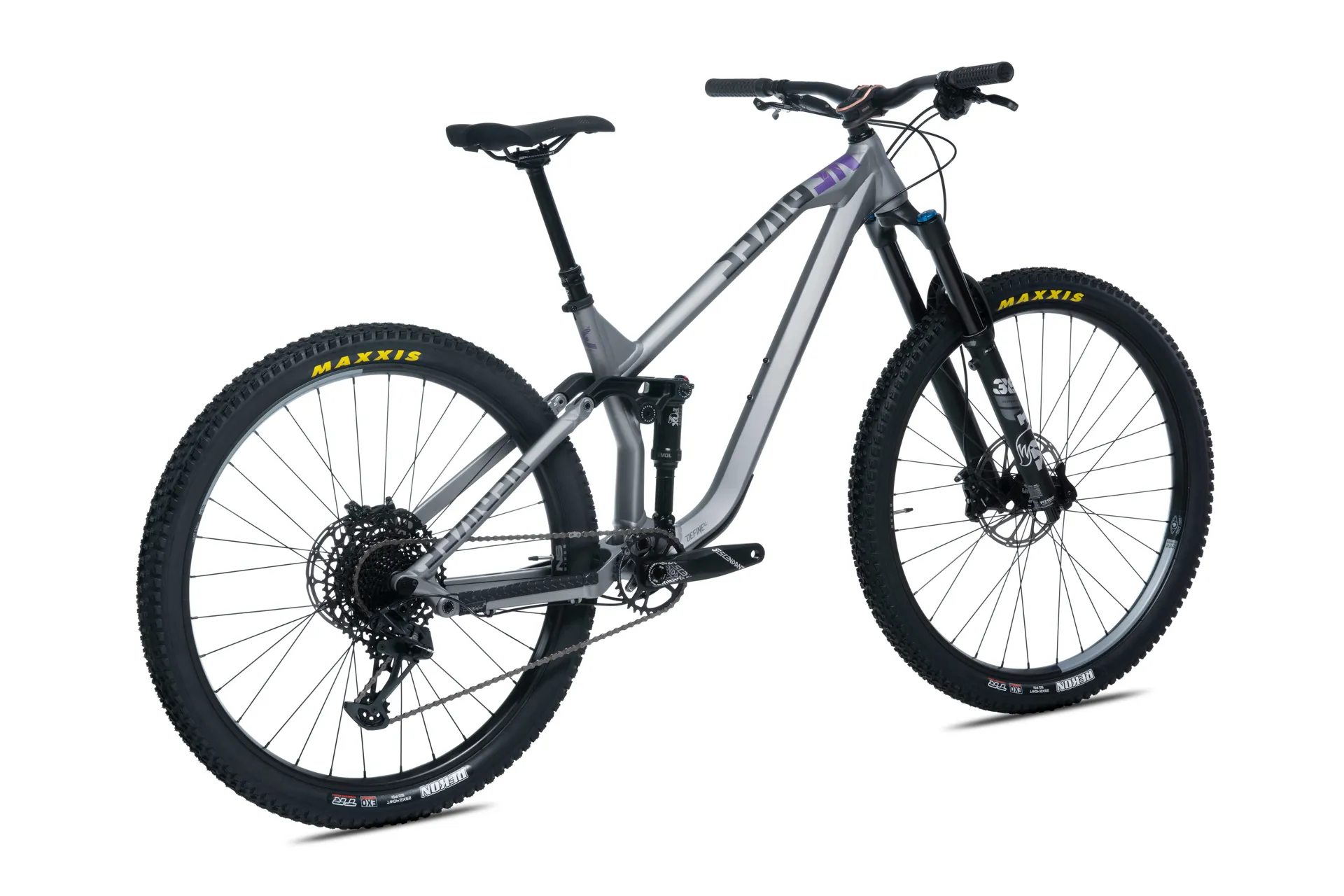

Ns Bikes Define AL 140 1 Mountain Bike - Grey

Brand:Ns Bikes

Code:NS3DFA141

As the do-it-all machine it has everything you need to have fun on the bike!

  • Fox Performance suspension
  • 150F/140R travel
  • Sturdy GX Eagle derailleur
  • SRAM G2 4-piston brakes
  • Race Face Aeffect R seatpost
  • 1x12 drivetrain
  • 65° Head Tube Angle
  • 76° Effective Seat Tube Angle
Ride up and down mountains - all day, every day.
This is arguably one of the most versatile bike in our range. For many riders this alloy beauty could be the one bike they will ever need. It sits right in the middle of categories and can be used for anything from long distance rides to fun days out at the bike park. It's big wheels, 140mm rear travel with 150mm fork and dialed in geometry defines this bike's donwhill and uphill capabilities. the frame’s unique semi-internal cable routing is a solution that is elegant and easy to service. Large, sealed pivots guarantee long periods of smooth, service free function. Do it all machine that will bring a smile on every riders face.
Technical Information
FrameNS Bikes Define AL w/ 140mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes
SizesS,M,L
Rear ShockFox Performance Float 2pos-Adj Evol LV Trunnion 205x57.5
ForkFox Performance 36 Float Grip, 150mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
HeadsetGW integrated tapered IS42/IS52, sealed bearings
StemNS Bikes Quantum Lite 45mm, 35
HandlebarNS Bikes 35, 780mm, 20mm rise
GripsNS Bikes Hold Fast supersoft
SeatpostRace Face Aeffect R S-125, M-150, L-170mm, 31,6mm
SaddleWTB Volt Medium Cromoly
Front brakeSram G2 R 4 piston, 200mm
Rear brakeSram G2 R 4 piston, 180mm
Levers/
RimsOctane One Solar 29”, 32h, tubeless ready
SpokesSpokes w/14mm nipples

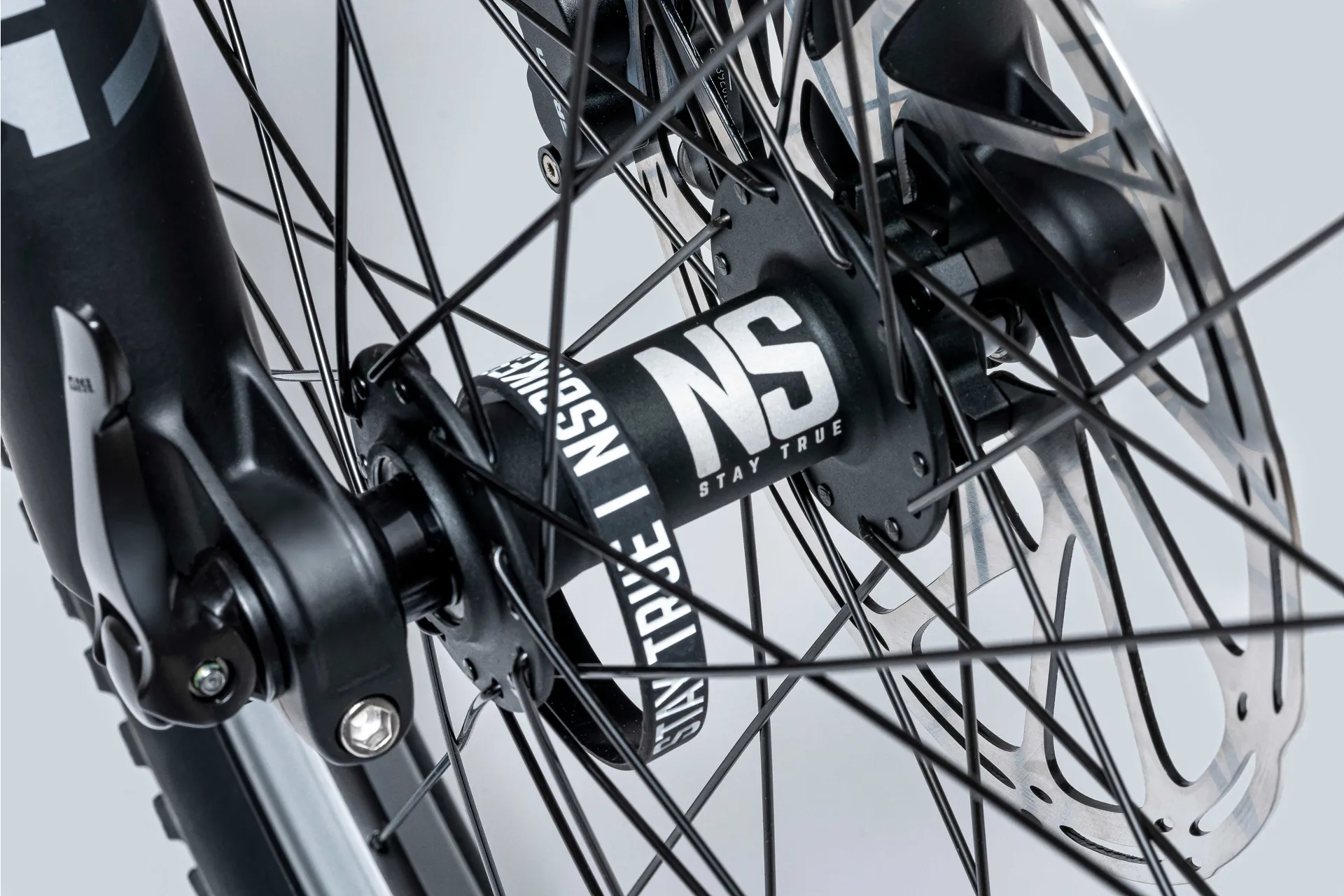

Front hubNS Bikes Rotary 110x15mm Boost (sealed bearings)
Rear hubNS Bikes Rotary Cassette 148x12mm Boost (sealed bearings)
Tires front/rearMaxxis Rekon EXO TR 29x2.4WT
CranksetTruvativ Descendant 6K DUB 170mm 32t
Bottom bracketSram DUB BSA 73mm
Pedals/
ChainSram SX Eagle, 12spd
Chainguide/
DerailleurSram GX Eagle type 3, 12spd
ShifterSram NX Eagle, 12spd
CassetteSram PG-1210, 11-50t 12spd
Sizing Information

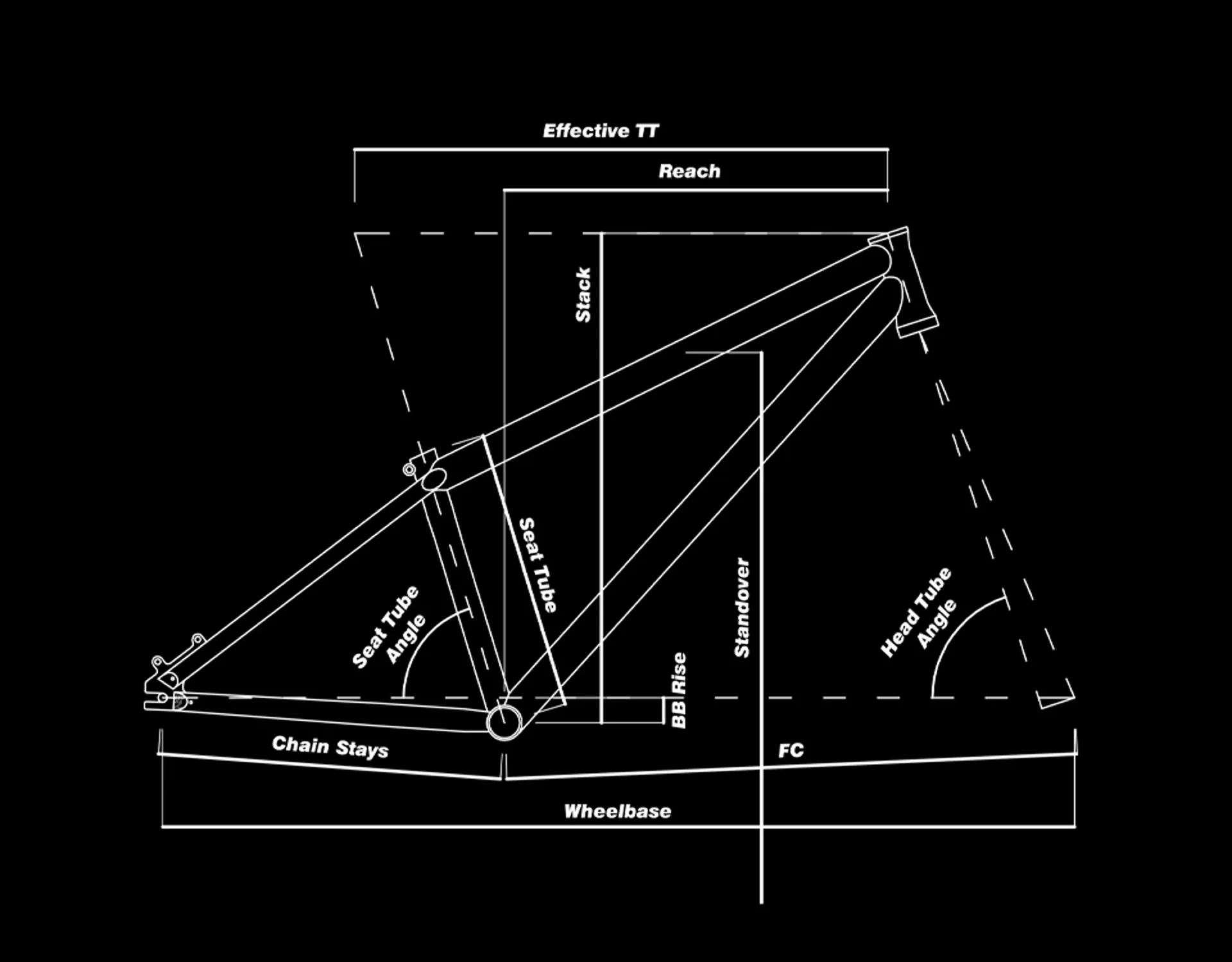

NS Bikes Define AL 1401 1 Geometry

SML
Wheel size29"29"29"
A-C561561561
Fork travel150150150
Tires29 x 2.4 [740mm]29 x 2.4 [740mm]29 x 2.4 [740mm]
Reachmm433463492
in1718,219,4
FCmm761795829
in3031,332,6
Standovermm742738735
inin29,229,128,9
Stackmm628636646
in24,72525,4
Eff. Top Tubemm585618651
in2324,325,6
Actual TTmm553582614
in21,822,924,2
Seat Tubemm396432483
in15,61719
Chainstaymm440
in17,3
BB dropmm37
in1,5
BB heightmm333
Head Tube angle(°)65
Seat Tube angleEffective (°)76
Wheelbasemm119812331267
in47,248,549,9
Headtubemm110120130
