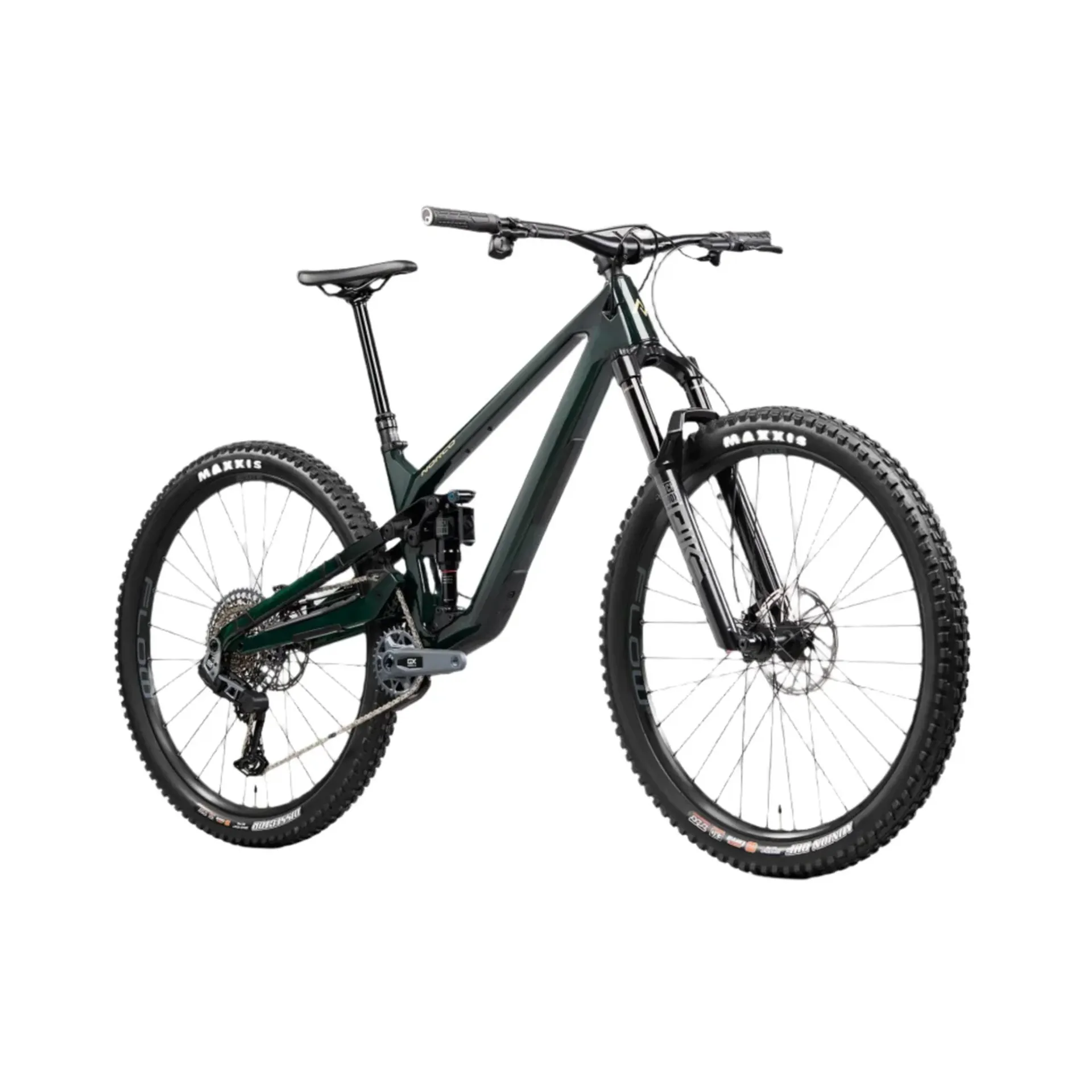

Norco Optic C2 29 Full Suspension Bike Green

Brand:Norco

Code:VAR-NO-0680215924GRN

Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of what’s possible on a short travel trail bike.
  • Discipline: Trail
  • Wheelsize: 29"
  • Rear Travel: 125mm
  • Frame Material: Carbon Fibre

NEW TECHNOLOGY

With 140mm/125mm of travel, the Optic condenses years of technology from long travel bikes into a lightweight package that’s as comfortable tearing up climbs as it is tackling challenging descents.

The VPSHP suspension layout provides increased rearward axle path and an idler to manage pedal feedback, keeping Optic’s playful roots, while punching above its weight when the trails get rough.

Geometry

Coming in five frame sizes (1,2,3,4,5) to support rider heights up to 6’5" (196cm), allows you to choose the frame size that best fits your body and riding preferences.

Rear centres and seat tube angles are varied by frame size to ensure consistent rider weight distribution, and short seat tubes with long dropper posts keep the saddle out of the way on technical descents.

FORCE SEPARATION

Optic’s High Pivot Horst Link suspension provides control of anti-rise, which is a fancy way of saying braking forces and suspension action operate pretty much independent of one another, so your suspension works its best on or off the brakes.

PRECISION KINEMATICS

Large volume air springs, precision leverage curves and custom shock tunes provide an ideal balance of bump sensitivity and the support you need to feel connected to the trail. 50mm shock stroke and reduced leverage accommodates heavier riders while still ensuring proper setup for lighter folks.

SPECIFICATION

FRAMECarbon Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

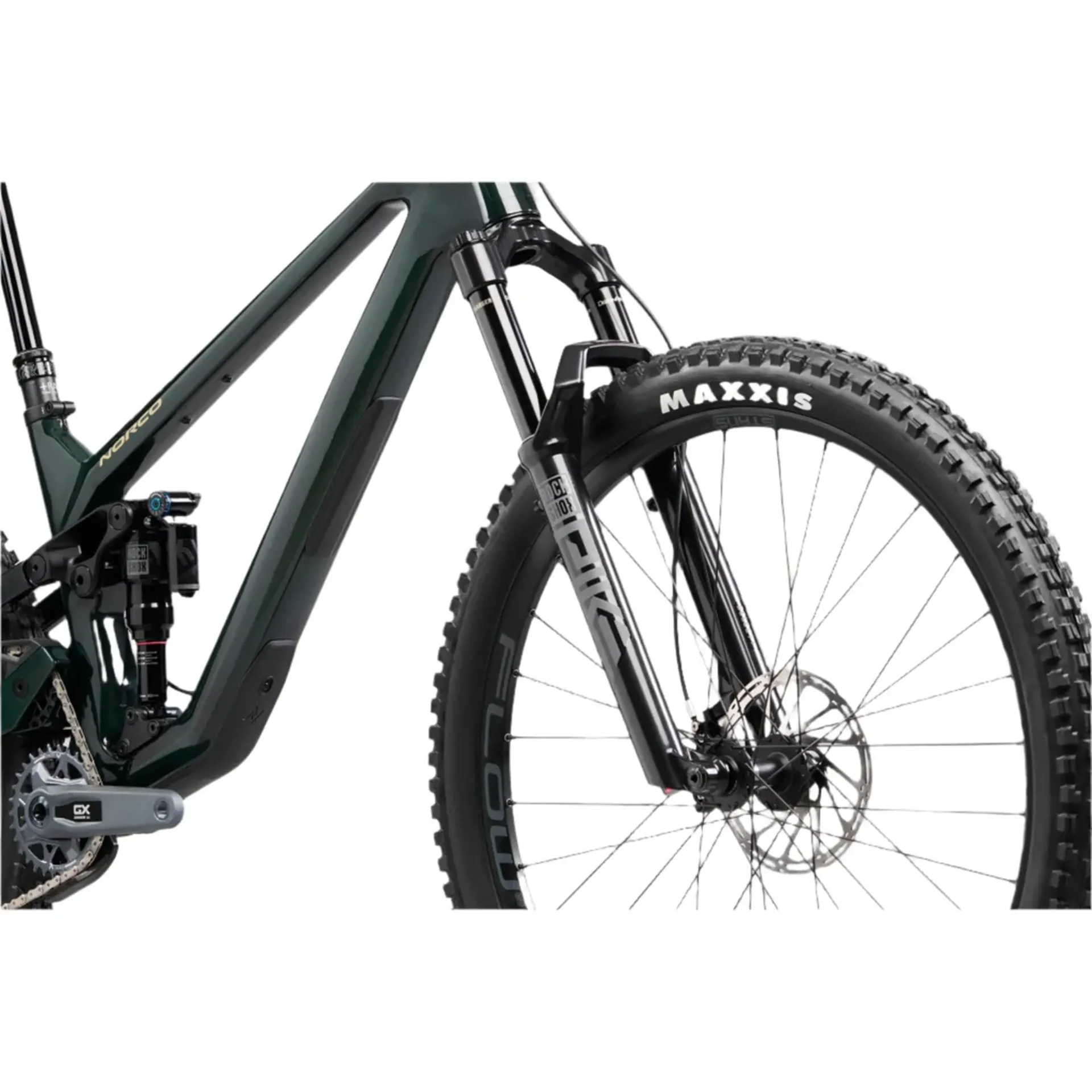

FORKRockshox Pike Select + Charger 3.1, 140mm, 44mm offset, Fender Included

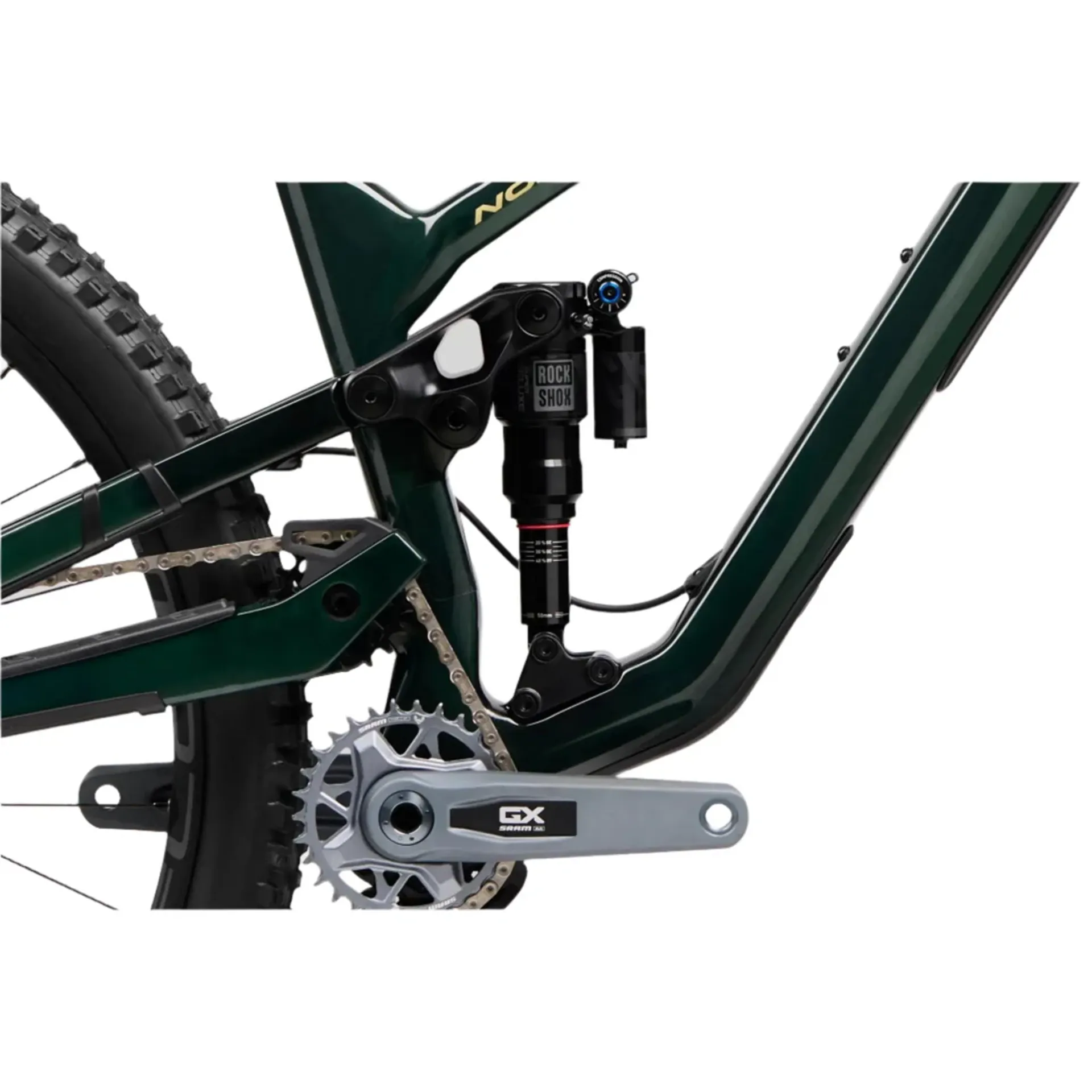

REAR SHOCKRockshox Super Deluxe Select +, 185x50mm TR
HEADSETZero Stack Sealed Cartridge Bearings - Tapered
GRIPSErgon GE1, Slim (S1, S2) Standard (S3,S4,S5)

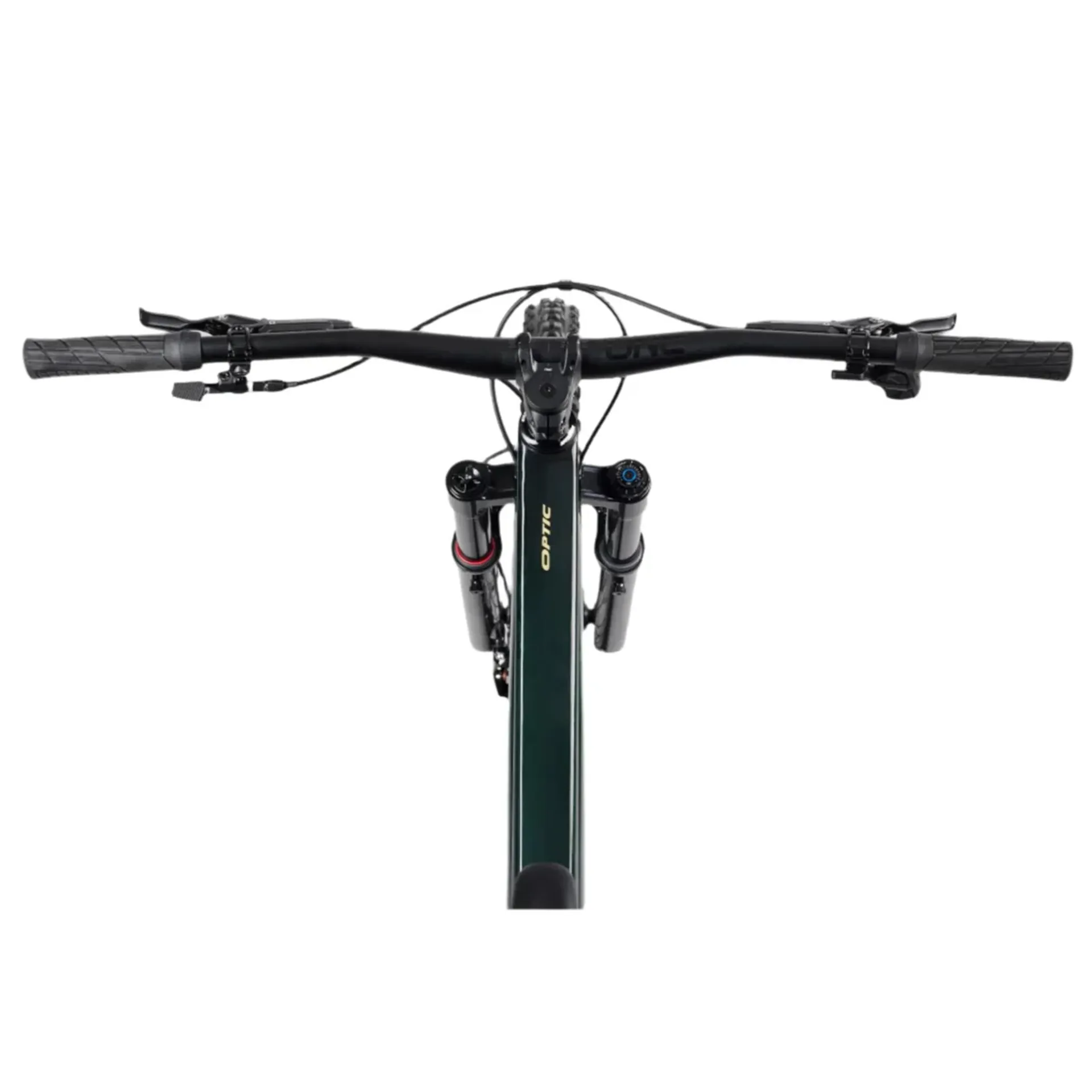

HANDLE BAROneUp Aluminum, 800mm, 20mm rise
STEMOneUp 42mm length , 35mm clamp
SEAT POSTTranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)
SEAT POST CLAMPNorco Alloy Nutted Clamp
SADDLEErgon SM-1 Enduro
FRONT BRAKESRAM Code Silver Stealth, 4-Piston, Sintered Pads
FRONT BRAKE ROTORSRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt
REAR BRAKESRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt
REAR BRAKE ROTORSRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt
BRAKE LEVERSSRAM Code Silver Stealth
SHIFTER REARSRAM Pod Controller, MMX Bridge

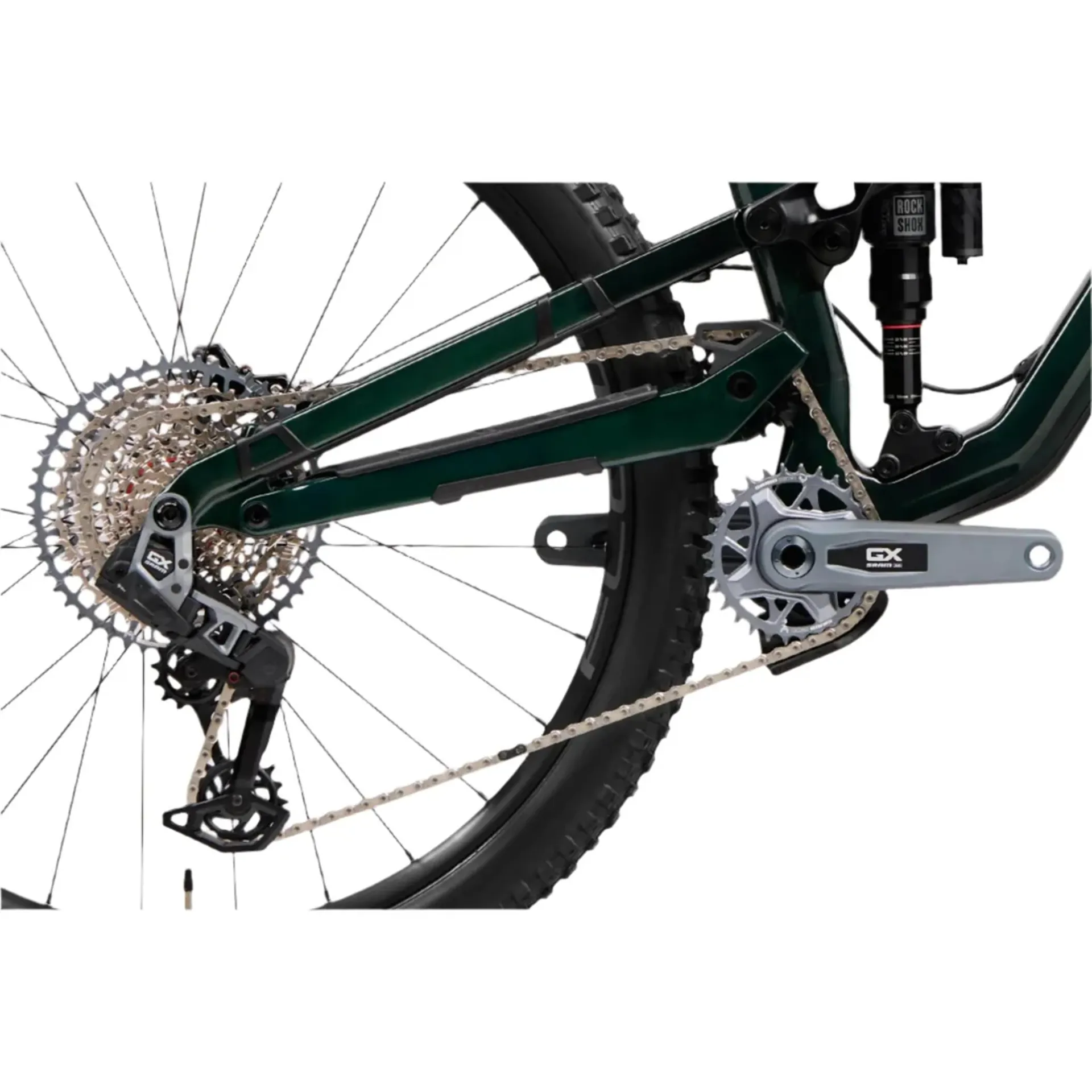

REAR DERAILLEURSRAM GX Eagle AXS T-Type, 12sp
CASSETTESRAM 1275 Eagle T-Type, 10-52T, 12sp
CHAINSRAM GX Eagle T-Type, 12spd
CRANKSETSRAM Eagle, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
BOTTOM BRACKETSRAM DUB, BSA 73mm, MTB WIDE
FRONT HUBDT Swiss 370, 15x110 Boost, 32H, 6-bolt
REAR HUBDT Swiss 370, 12x148 Boost, XD, 6-bolt
SPOKES/NIPPLESStainless steel
RIMSStan's Flow S2, 32H, F/R- 29", 30mm ID
FRONT TYREMaxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
REAR TYREMaxxis Disector, 3C Max Terra EXO, 29x2.4", Folding

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.


12345
WHEEL SIZE29"
RIDER HEIGHT (FT)5'1-5'5"5'4-5'8"5'7-5'11"5'10-6'2"6'1-6'5"
RIDER HEIGHT (CM)155.0-165.0162.5-172.5170.0-180.0178.0-188.0185.5-195.5
TRAVEL (MM FRONT / MM REAR)140/125mm
REACH422.5447.5472.5497.5522.5
STACK608617626635644
HTAHEAD TUBE ANGLE65.0
OSFORK OFFSET44
STSEAT TUBE LENGTH350370385430445
STAEFFECTIVE SEAT TUBE ANGLE76.5076.7577.0077.2577.50
RCREAR CENTRE LENGTH421425429433437
BBBOTTOM BRACKET DROP32/32
BBHBOTTOM BRACKET HEIGHT346
HTTHORIZONTAL TOP TUBE568593617641665
WBWHEELBASE11591193122612591292
SOHSTANDOVER675677678707705
HTHEAD TUBE LENGTH100110120130140
TRAIL128
RECOMMENDED SEATPOST DROP150170200200230
MAXIMUM POST INSERTION250270300300330
STEM LENGTH40
CRANK LENGTH170
TYRE SIZE2.35" - 2.6"
WATER BOTTLE COMPATIBLE1 x 620ml1 x 750ml1 x 750ml1 x 750ml1 x 750ml
