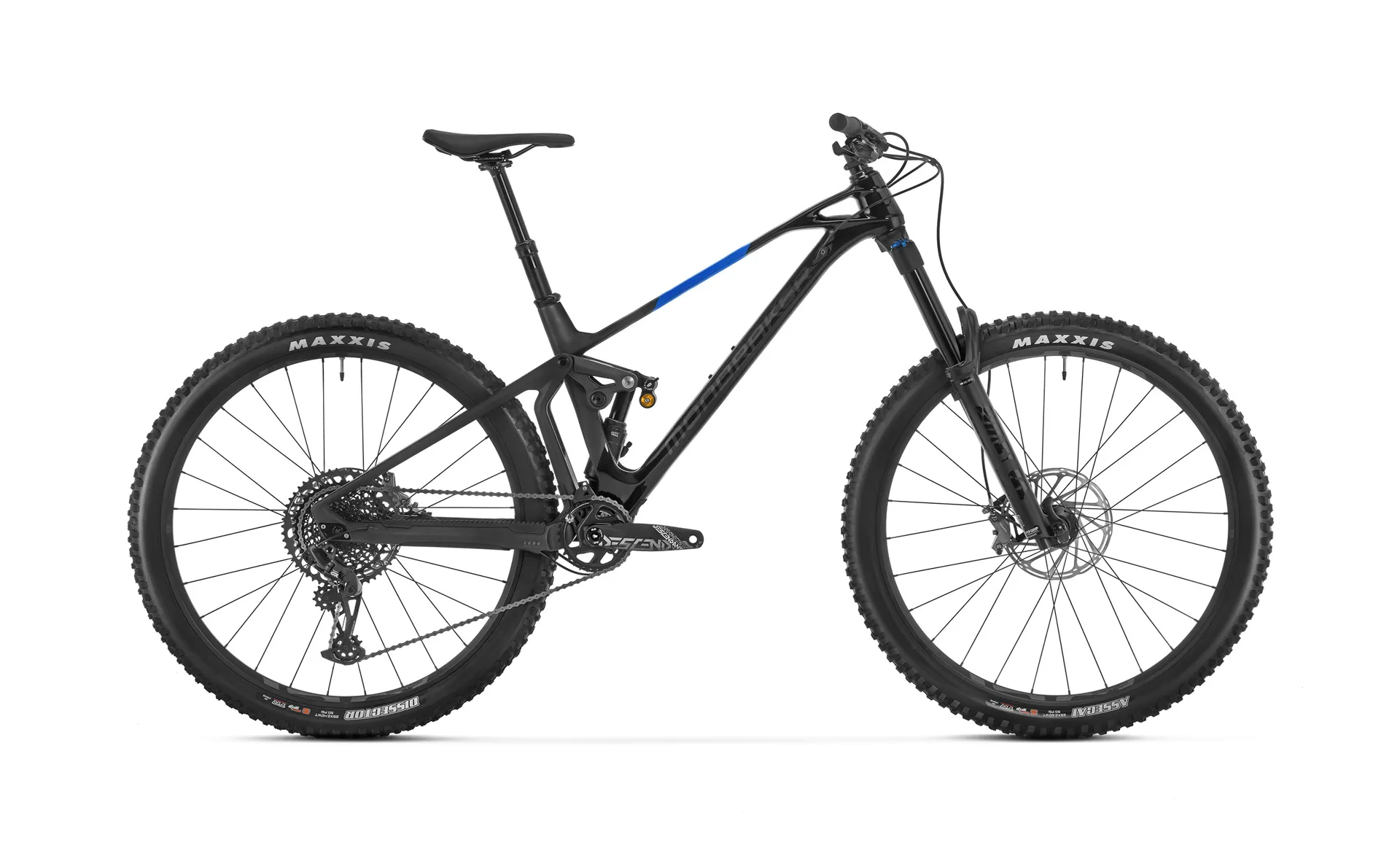

FRAME: | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design |
FRAME MATERIAL: | Carbon |
FORK: | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
FORK TRAVEL: | 170mm |
REAR SHOCK: | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
WHEEL SIZE: | 29 |
WHEELS: | Front Hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts / Rear Hub: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub / Spokes§; e*thirteen custom Hiv |
TYRES: | Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead / Rear:Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
DROPPER SEATPOST: | Yes |
SEATPOST: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
SEATPOST: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
SADDLE: | SDG BEL-AIR 3.0, LPU foam, steel rails |
CRANKSET: | Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5 |
HANDLEBAR: | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
STEM: | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
GRIPS: | Onoff Desert, 1lock-on, 135mm |
SHIFTERS: | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
BRAKE BRAND: | SRAM |
HYDRAULIC BRAKES: | Yes |
BRAKES: | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
REAR DERAILLEUR: | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
CHAIN: | Sram NX Eagle, 12s, Powerlock |
NUMBER OF GEARS: | 12 Speed |
