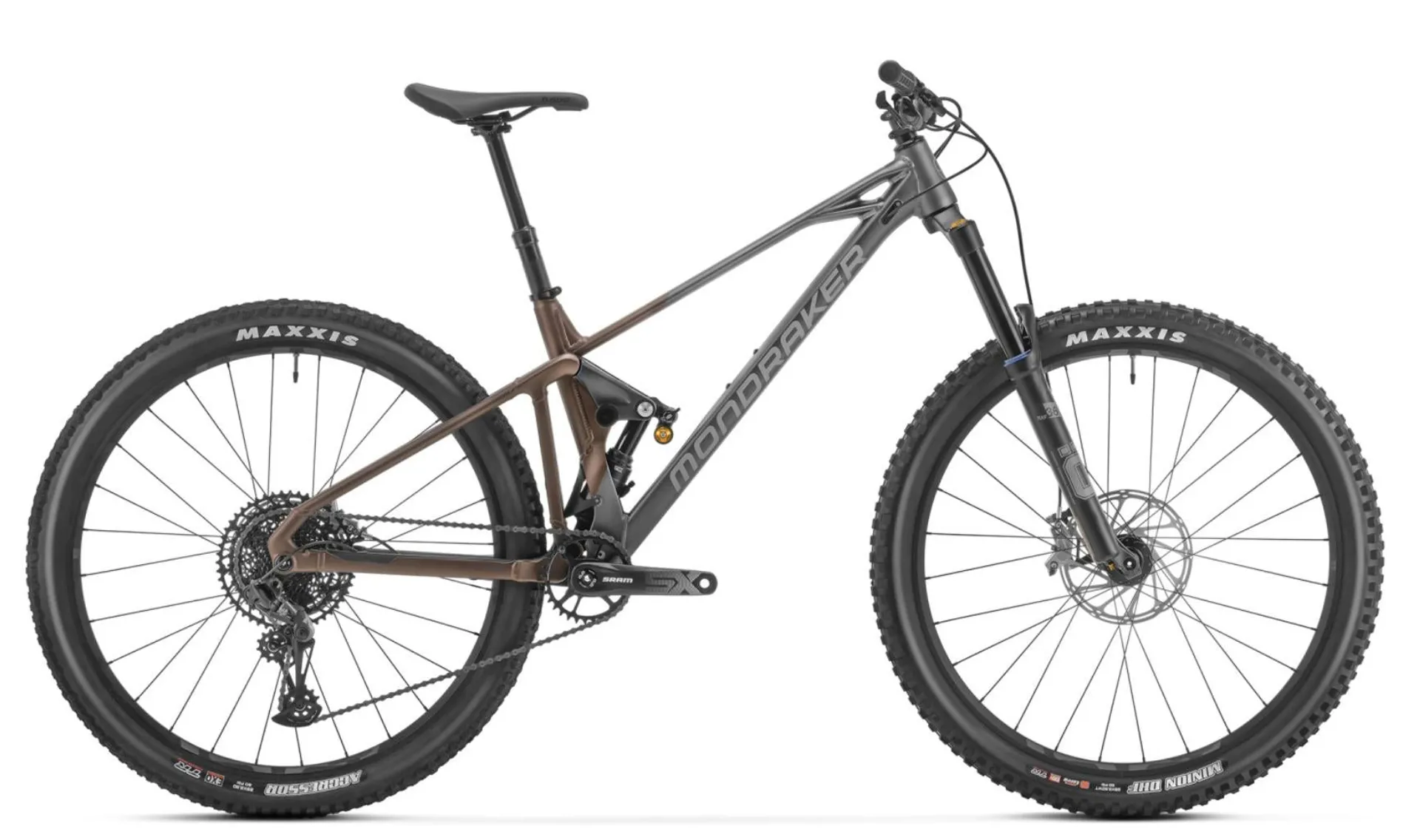

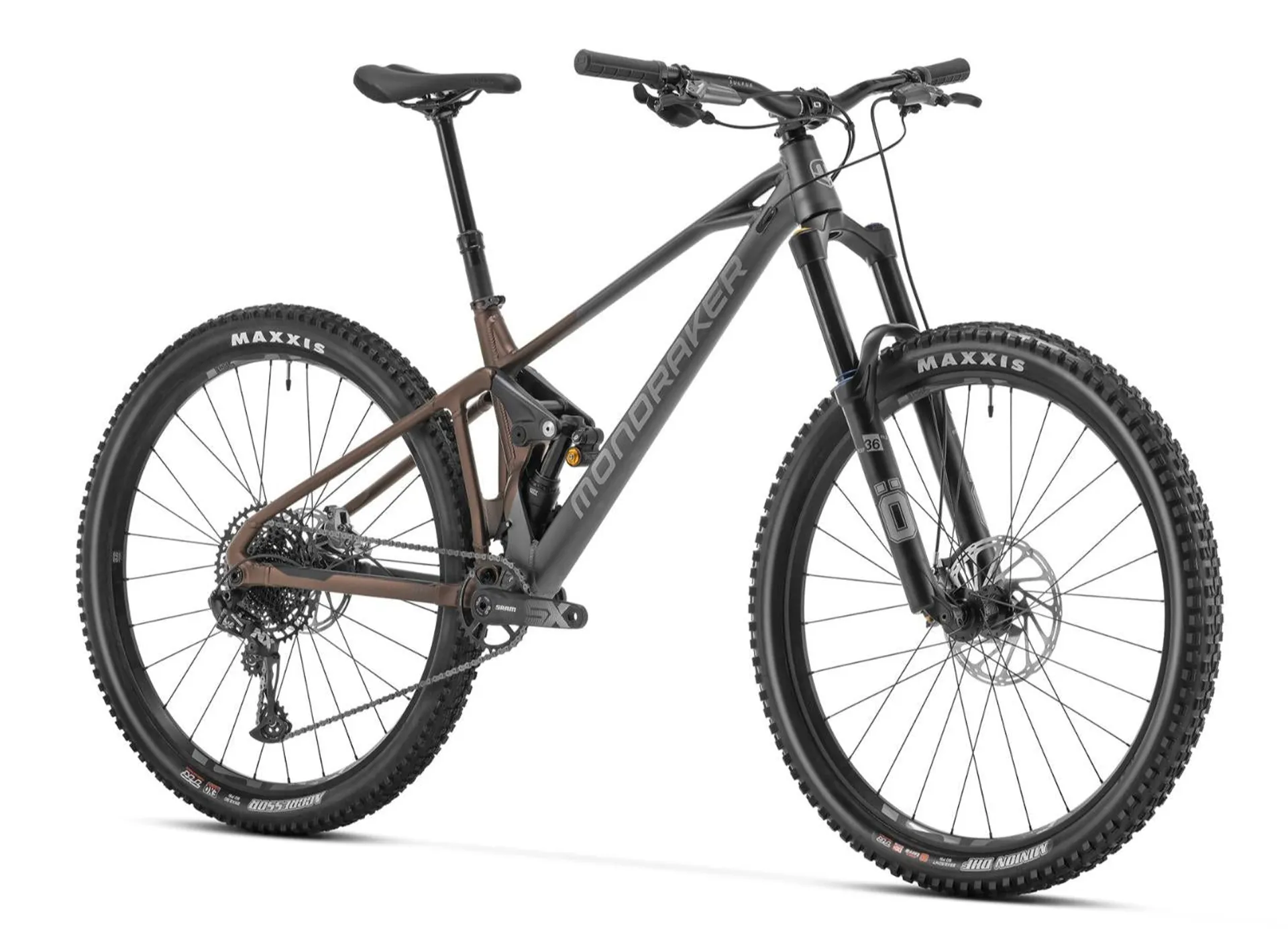

Mondraker Foxy R Grey/Bronze

Brand:Mondraker

Code:1024128GraphiteBronzeGray

The Foxy is theenduro/all-mountain legend, famous for that Mondraker ride and many race wins around the world.

The FOXY R comes built up with a 6061 ALLOY STEALTH EVO aluminium frame with hydroformed tubes. Its uses Mondraker's prestigious ZERO SUSPENSION SYSTEM, as well as having FORWARD GEOMETRY; a benchmark for current bikes.

t’s got 160mm travel at the front and 150mm at the rear, using an Öhlins TTX fork complimented by TTX Air shock from the same brand at the back. It also highlights SRAM’s NX Eagle/SX Eagle 12-speed drivetrain, e*thirteen’s LG1 Plus Enduro wheels, and is rounded off with SRAM’s Code Bronze brakes and ONOFF components.
Technical Information
FrameFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel,
Forward Geometry, one piece Monoblock upper link, Boost 12×148mm rear axle, tapered head tube,
73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX
capacity sealed bearings, ISCG 05
Rear ShockÖhlins TTX Air 205×65mm. Settings: high speed compression lever with climb mode, low-speed
compression, rebound, air preload. Trunnion top mount, 25×8mm bottom bushings
Shock SettingsC20 compression, R35 rebound
ForkÖhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15×110mm axle,
offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression,
rebound, air preload, ramp chamber. Fork settings: C20 R40
HeadsetOnoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45°
StemOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HandlebarOnoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GripsOnoff Twin, 1lock-on, 135mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm,
M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
SaddleSDG BEL-AIR 3.0, LPU foam, steel rails
Front BrakeSram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked
organic pads
Rear BrakeSram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steelbacked
organic pads
Rimse*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokese*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Hube*thirteen Boost 15×110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hube*thirteen Boost 12×148mm, triple-sealed, fully machined aluminum w/6 degree engagement, IS 6 bolts, Shimano freehub
Front TyreMaxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear TyreMaxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CranksetSram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Chainring32T, CNC-machined alloy, X-SYNC 2
Bottom BracketSram DUB BSA, sealed bearings, 73mm
ChainSram SX Eagle, 12s, Powerlock
Rear DerailleurSram Trigger NX Eagle, 12s, X-Actuation 1:1
ShifterSram Trigger SX Eagle, 12s, X-Actuation 1:1
CassetteSram XG-1230, 11-50T, 12s
Derailleur HangerSram UDH
Max System Weight120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Sizing Information

Frame SizeMinimum HeightMaximum Height
S165cm (5’5”)170cm (5’7”)
M170cm (5’7”)180cm (5’11”)
L175cm (5’9”)187cm (6’1”)
XL185cm (6’1”)195cm (6’5”)

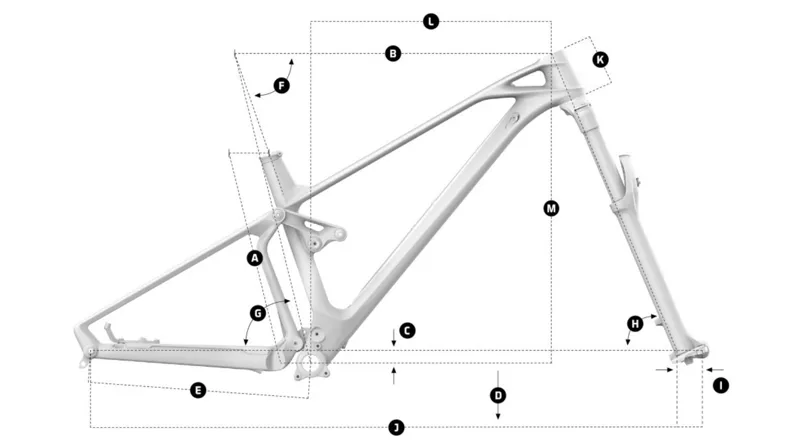

Frame SizeSMLXL
A – Seat Tube Length375mm415mm445mm500mm
B – Top Tube Length600mm620mm650mm670mm
C – Bottom Bracket Drop-20mm-20mm-20mm-20mm
D – Bottom Bracket Height354mm354mm354mm354mm
E – Chain Stay Length435mm435mm435mm435mm
F – Seat Tube Angle70.2°70.2°70.2°70.2°
G – Effective Seat Tube Angle75.5°75.5°75.5°75.5°
H – Head Tube Angle64.5°64.5°64.5°64.5°
I – Fork Offset44 mm44mm44mm44mm
J – Wheelbase1208mm1231mm1257mm1283mm
K – Head Tube Length90mm100mm115mm130mm
L – Reach445mm465mm485mm505mm
M – Stack617mm627mm641mm655mm
