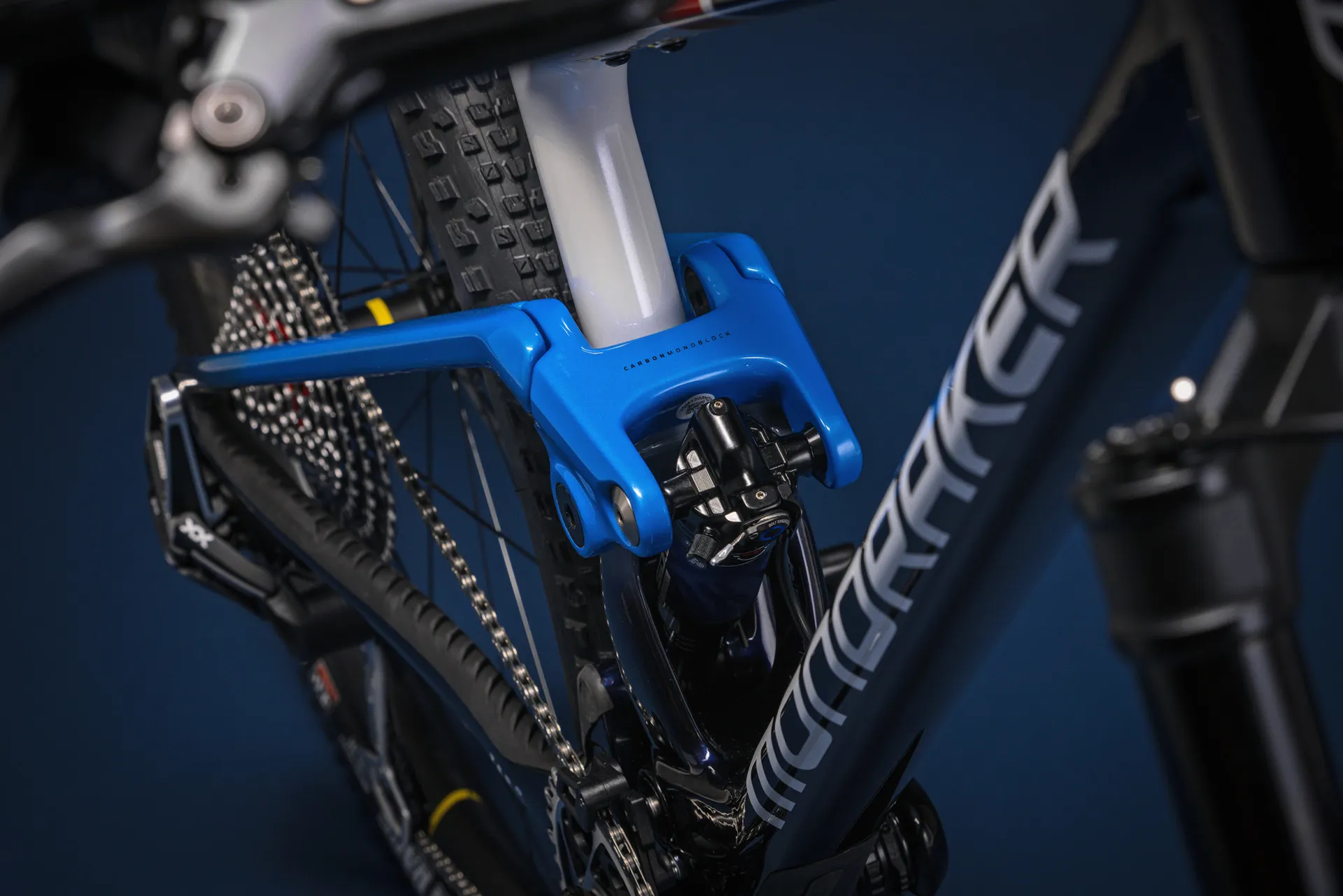

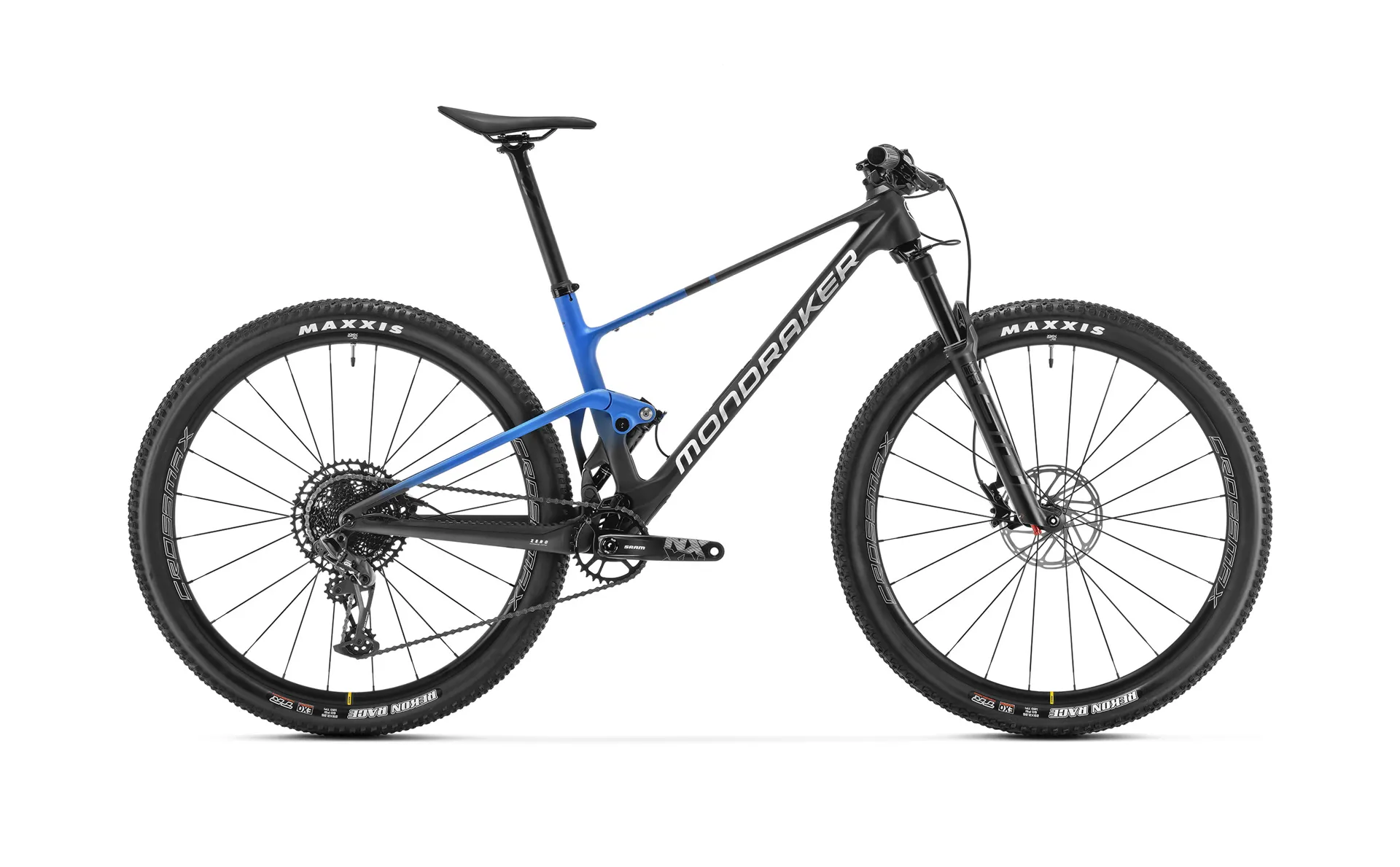

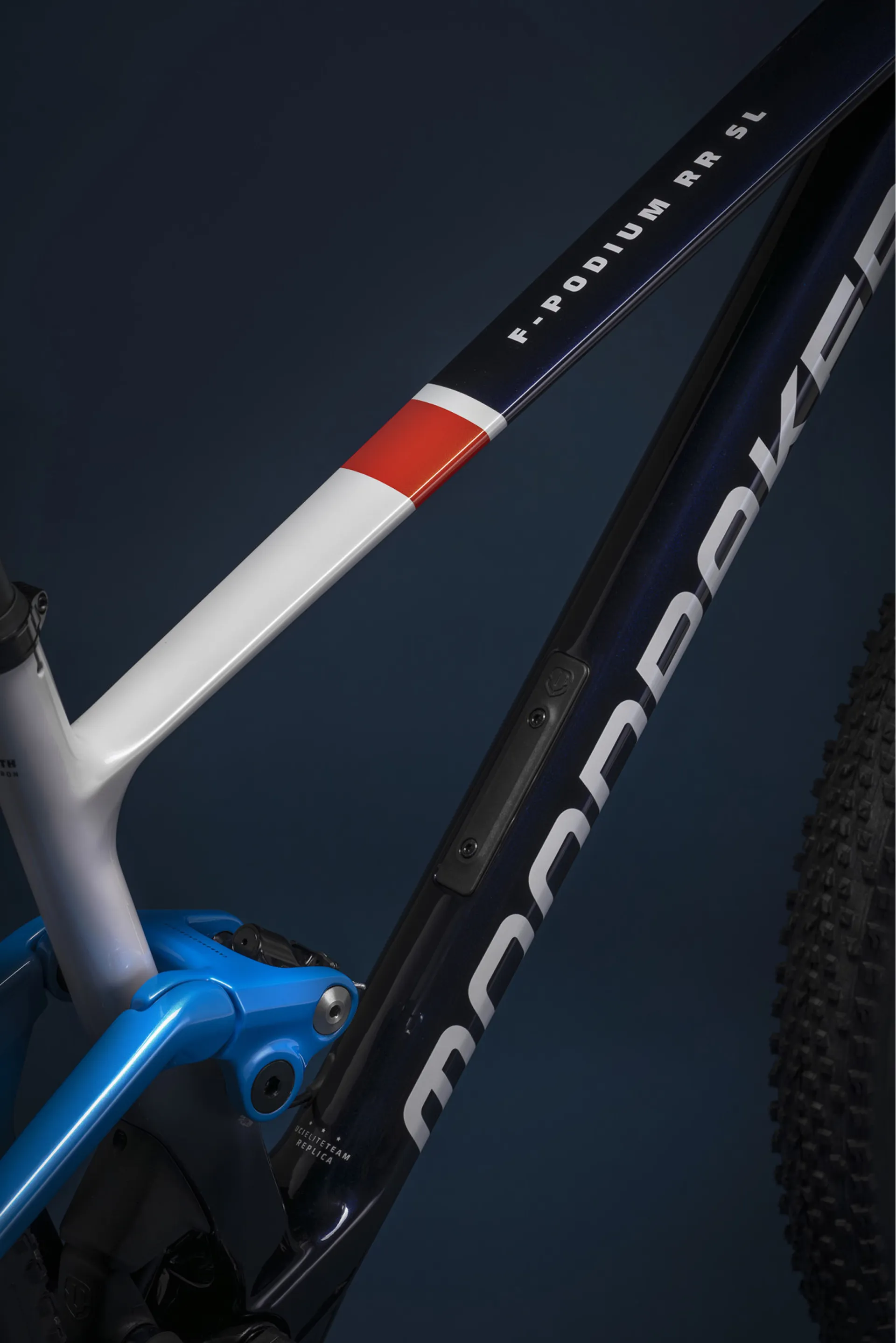

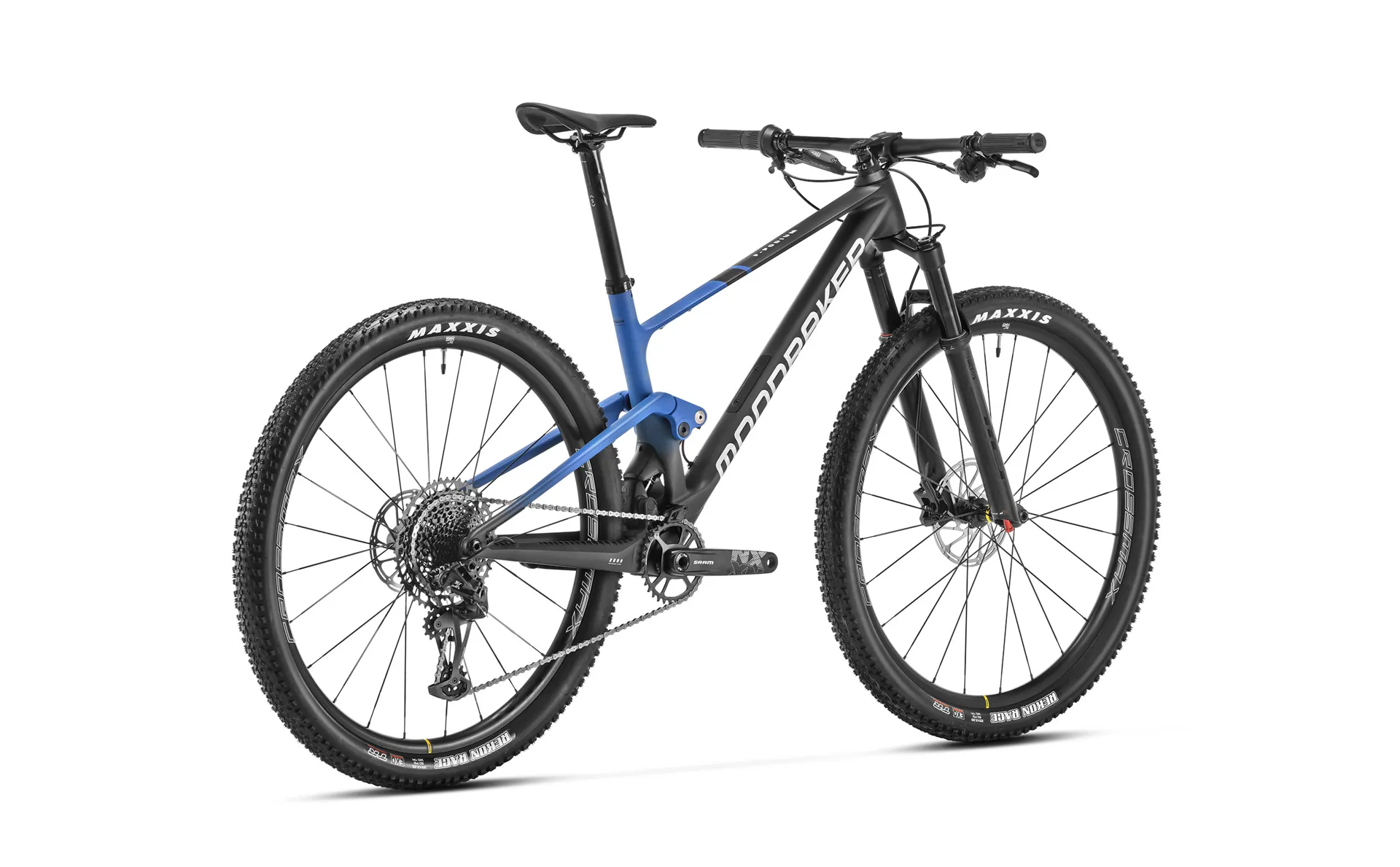

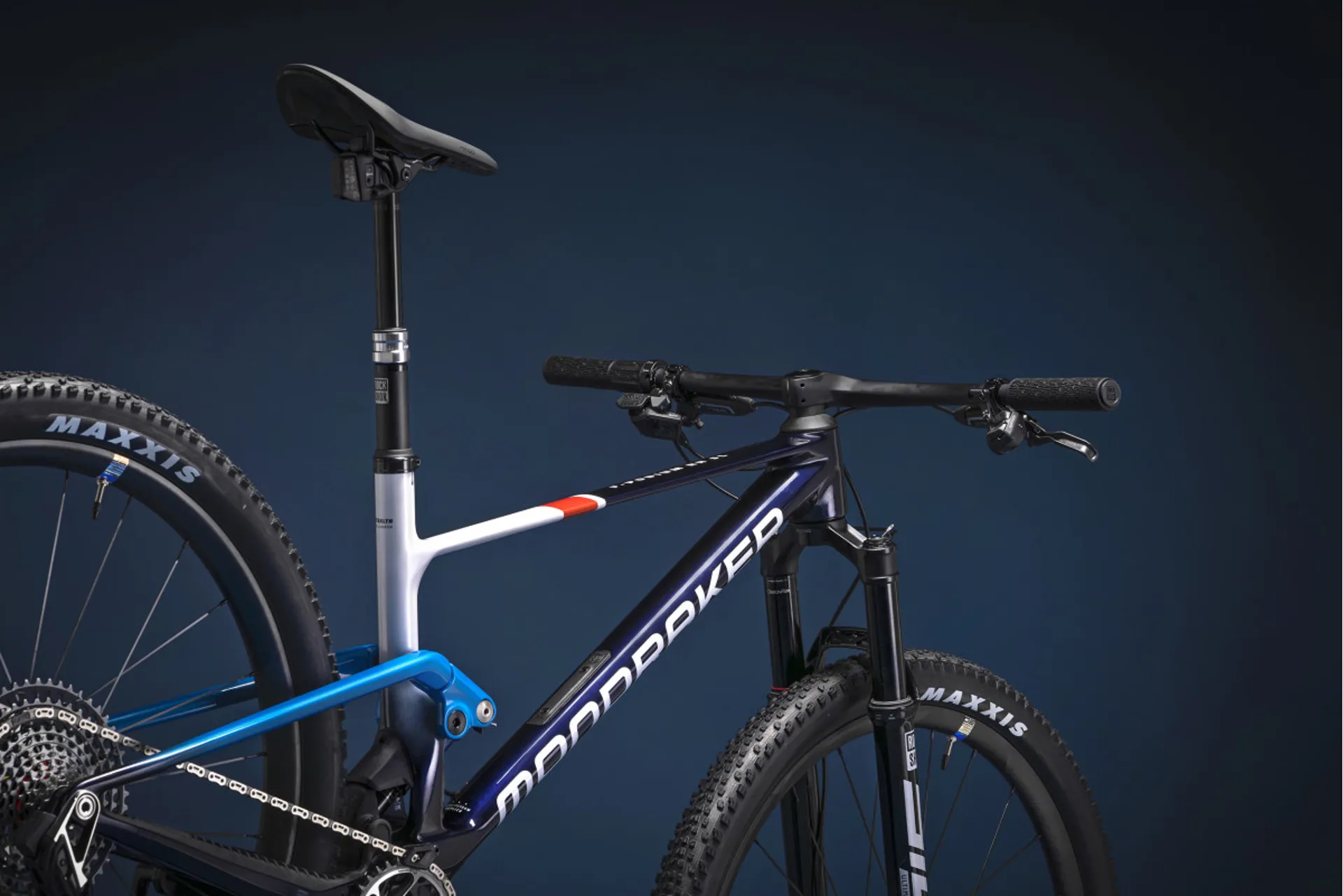

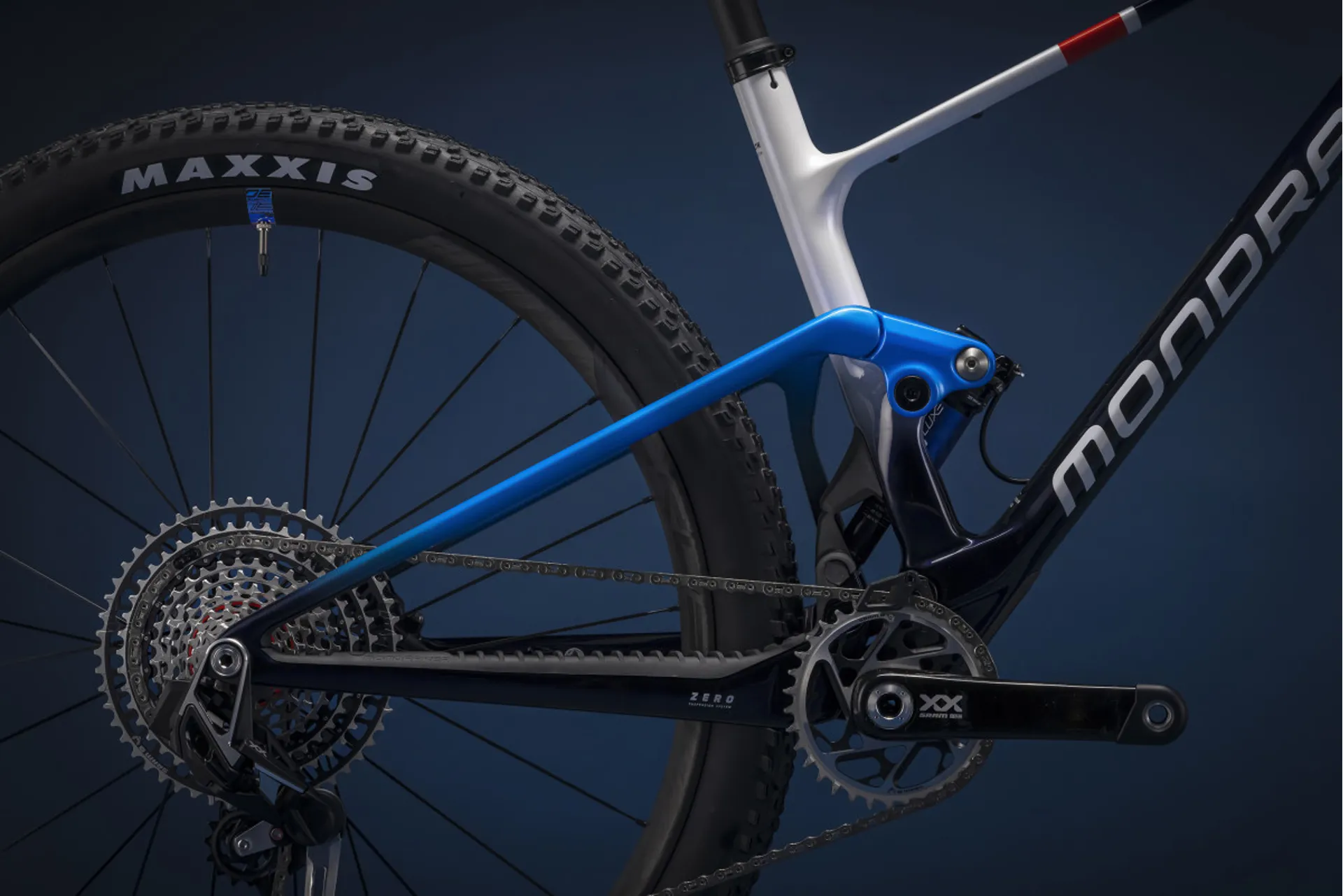

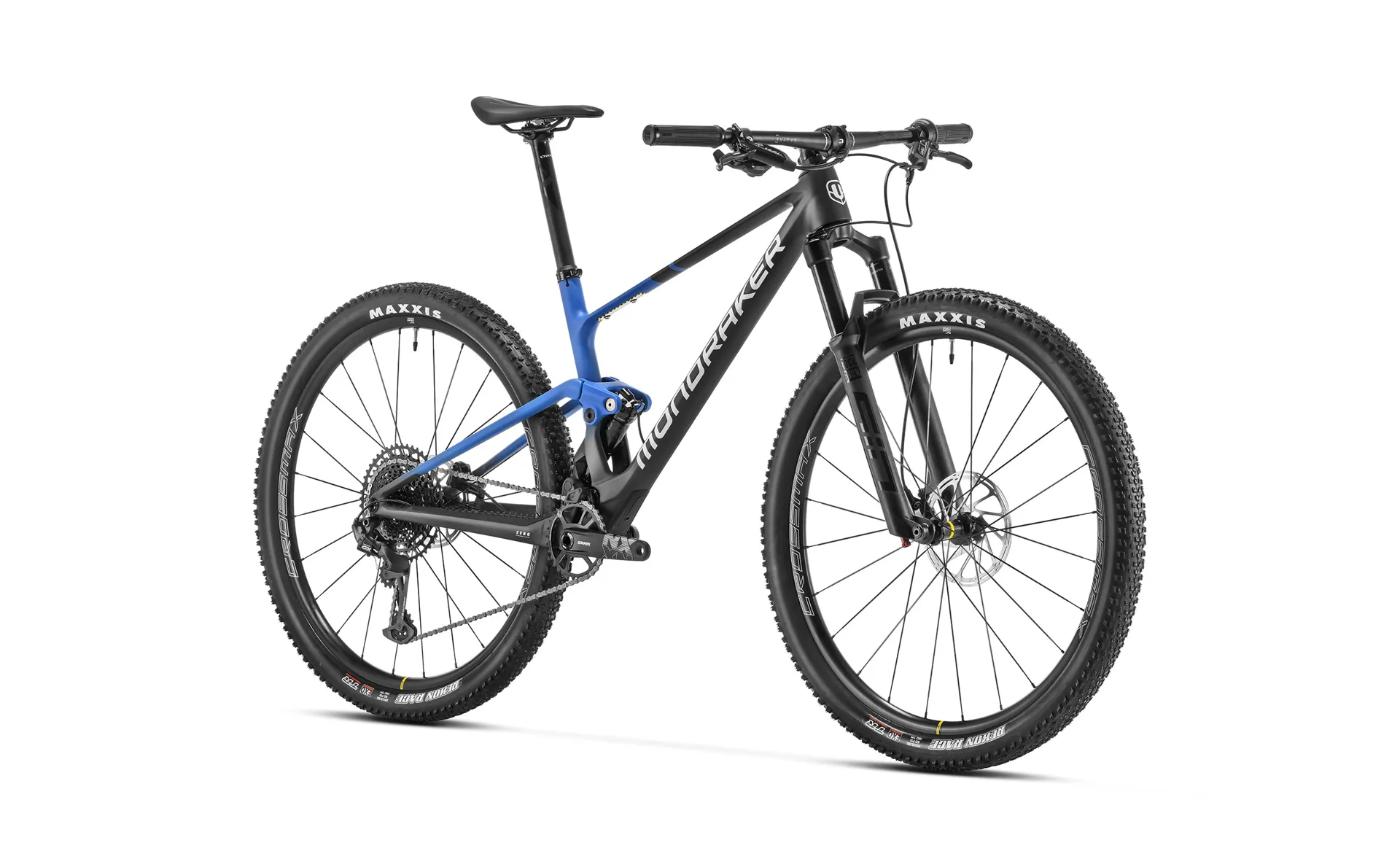

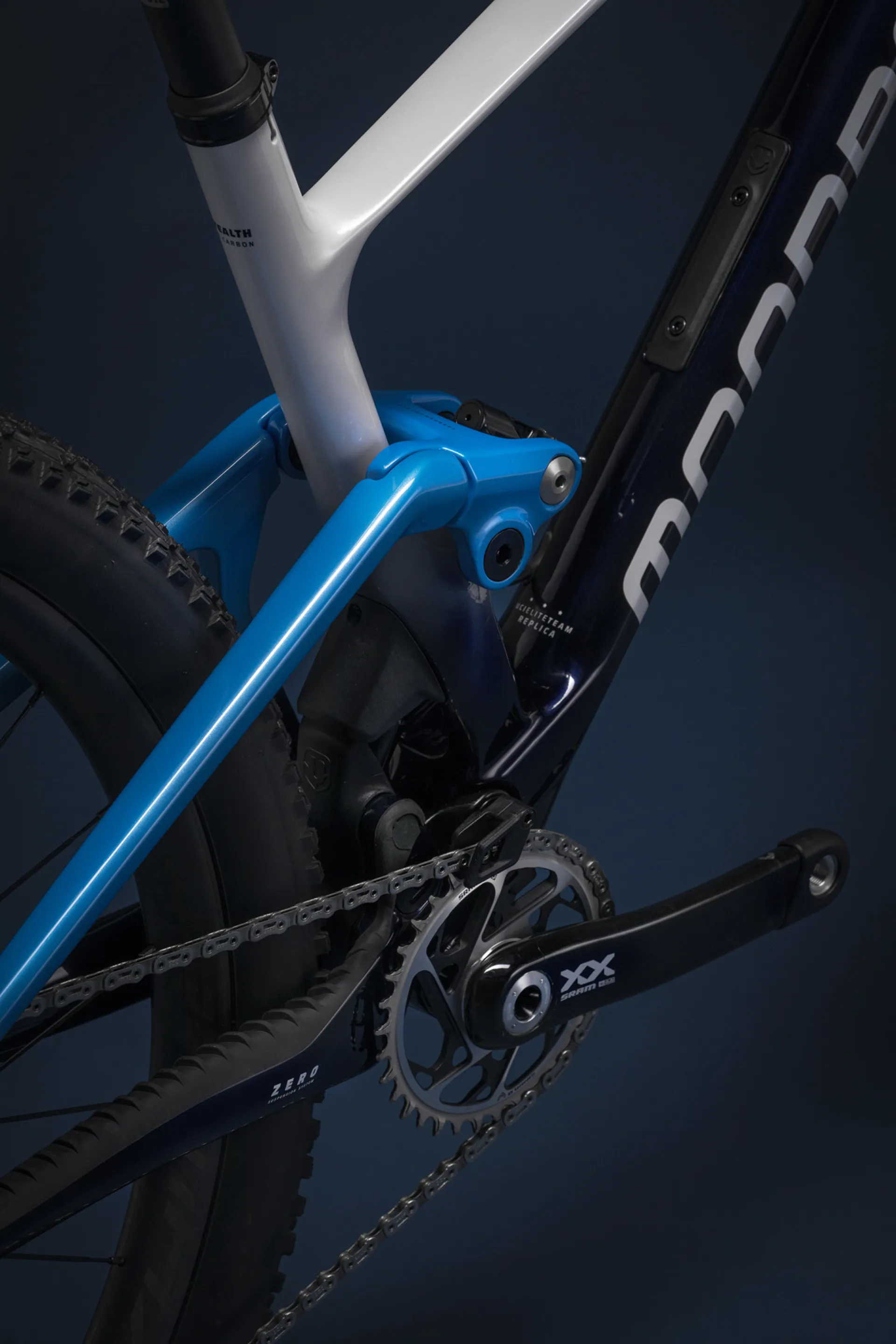

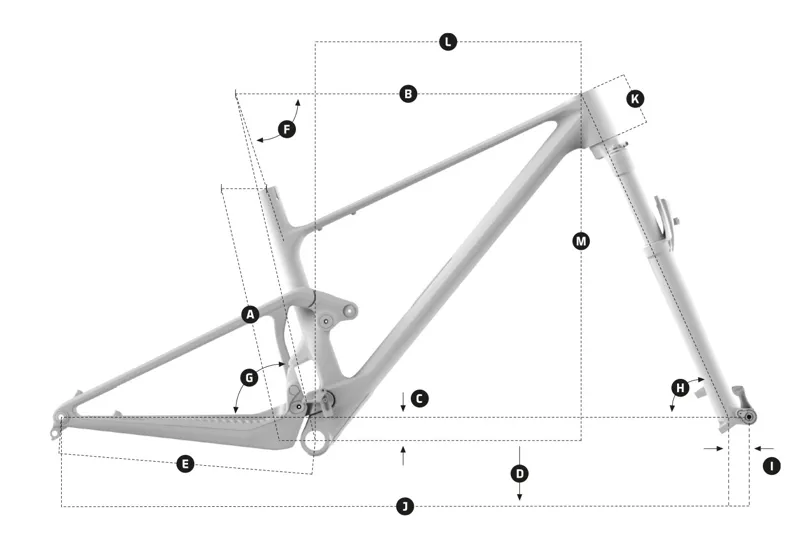

Frame | F-Podium 29 Stealth Air Full Carbon,XCOOptimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link,BSAbottom bracket, tapered head tube,HHGinternal cable routing, dedicated 1X drivetrain design, Boost 12×148mm rear axle, shock mudguard, postmount rear brake mount. |
Rear Shock | RockshoxSIDLuxe 3P Remote in Pull DebonAir, 165×45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
Shock Settings | Medium compression, medium rebound, Lockout 430, 1 Token |

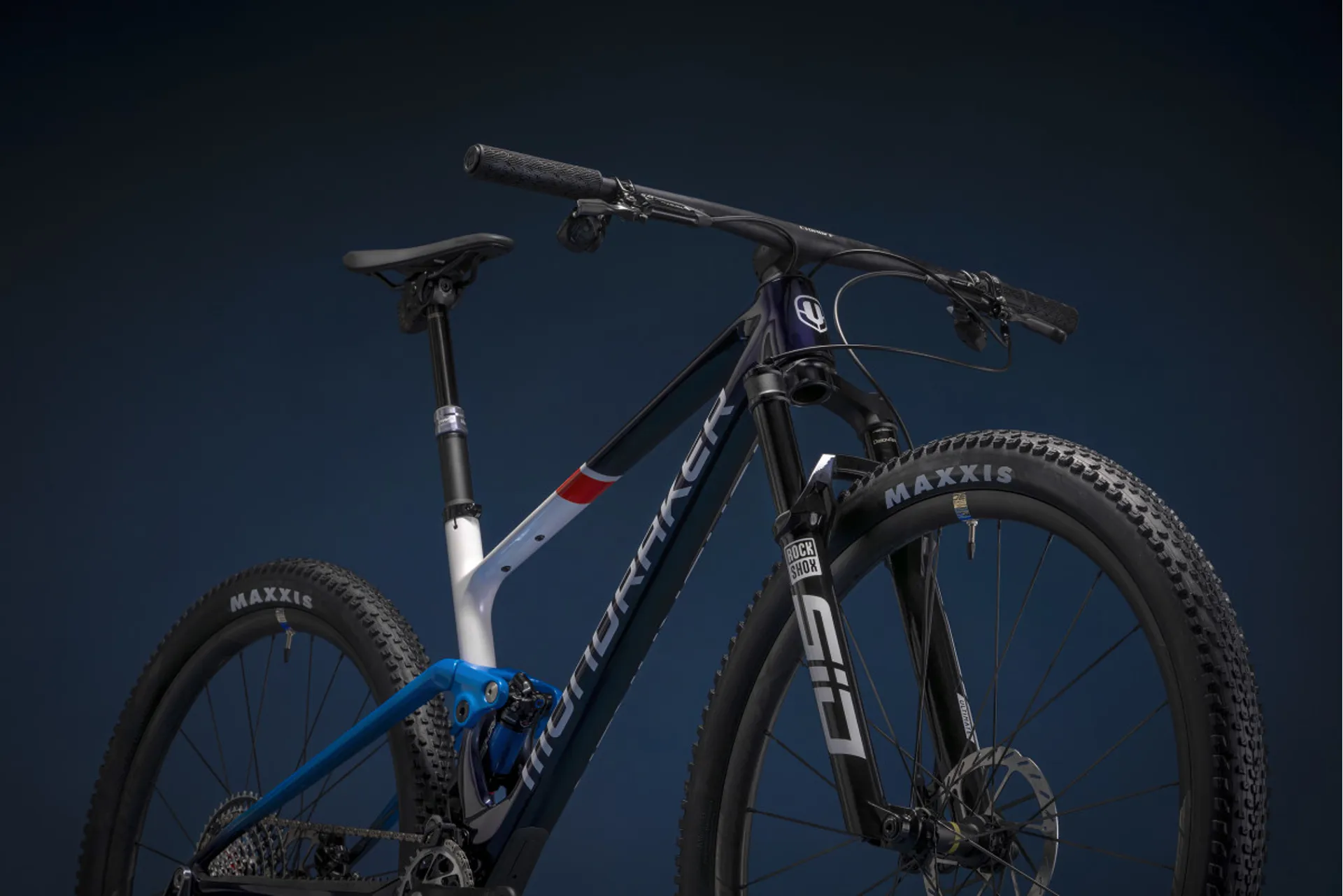

Fork | RockshoxSIDBase 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15×110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload |

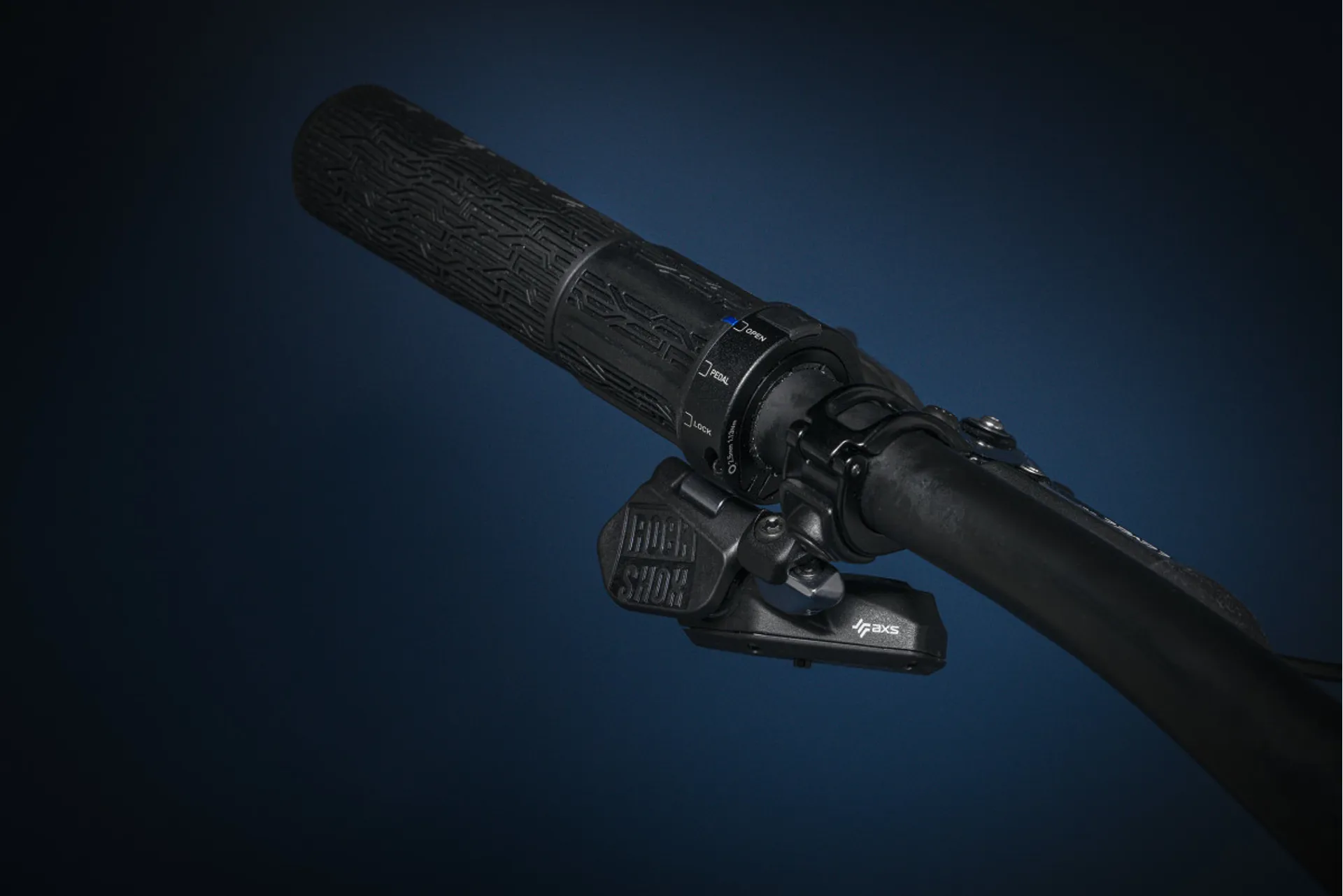

Fork Remote | RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock |
Headset | Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing |

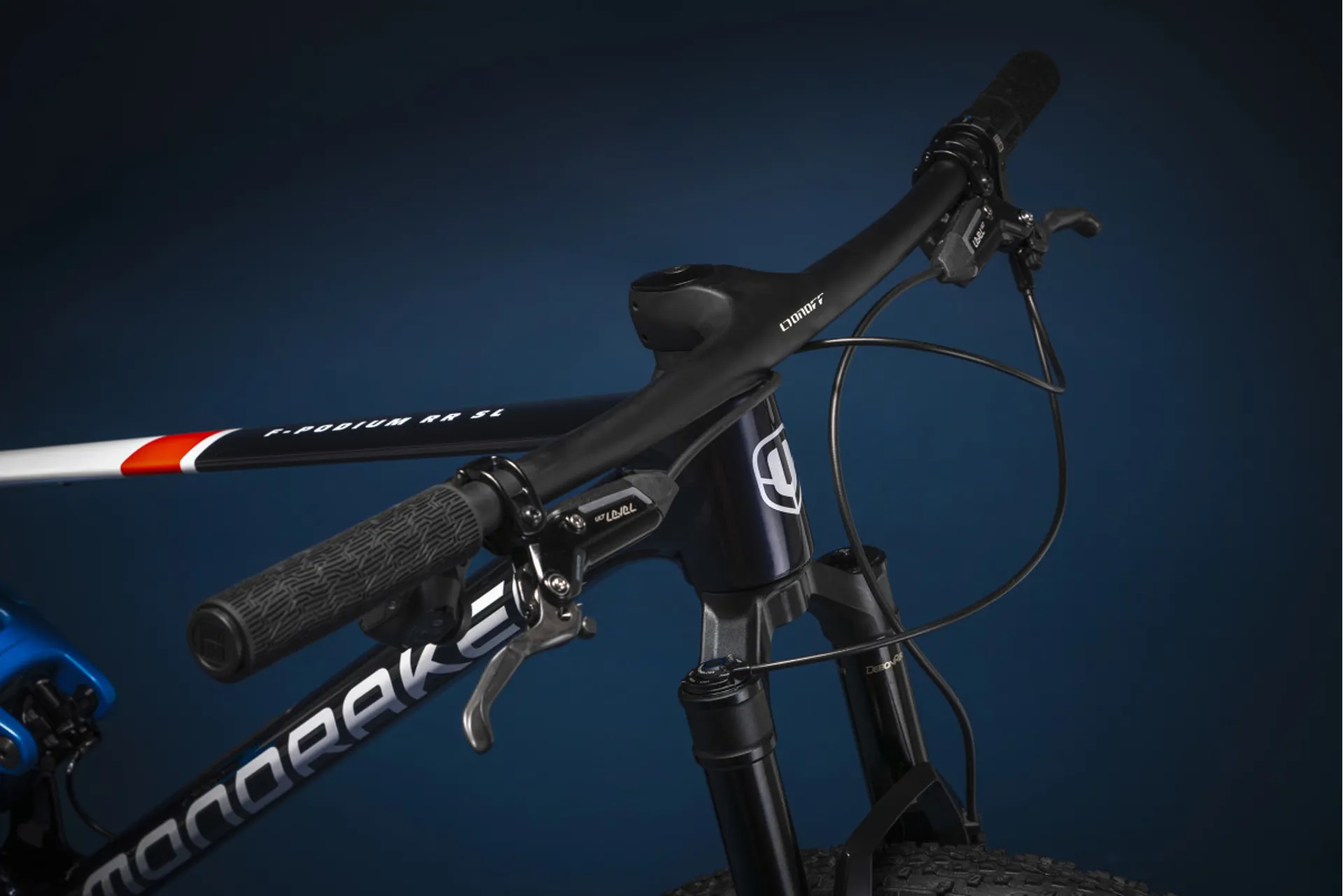

Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
Grips | Rock Shox Twistloc grips |
Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
Saddle | Fizik Vento Argo X5 |
Front Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rims | Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes |
Spokes | Mavic straight-pull double butted, contactless lacing |
Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12×148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
Front Tyre | Maxxis Rekon Race 29×2.35,EXOprotection, tubeless ready, 120TPI, folding bead |
Rear Tyre | Maxxis Rekon Race 29×2.35,EXOprotection, tubeless ready, 120TPI, folding bead |
Crankset | Sram NX Eagle, 12s, Boost,DUBaxle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55 |
Chainring | 34T, steel, X-Sync 2 |
Bottom Bracket | SRAMDUBBSA, sealed bearings, 73mm |
Chain | Sram SX Eagle, 12s, Powerlock |
Rear Derrailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
Cassette | Sram PG-1230, 11-50T, 12s |
Deraileur Hanger | SramUDH |
Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
