Mondraker Neat RR SL Carrera Blue

Brand:Mondraker

Code:1024253BlueWhite

The all-new lightweight electric mountain bike from Mondraker brings the ultimate option for riders who want the latest components paired with modern frame design ideology. Refined and finely tuned stealth carbon frame matched with the light, powerful TQ motor lays the base for an absolute weapon of an E-MTB.

Mondraker's electric MTB line-up boasts some of the best riding (and looking) bikes out there, the NEAT fits right in with the family and was designed from the ground up to be the most nimble, manoeuvrable and lightest in Mondraker's range.

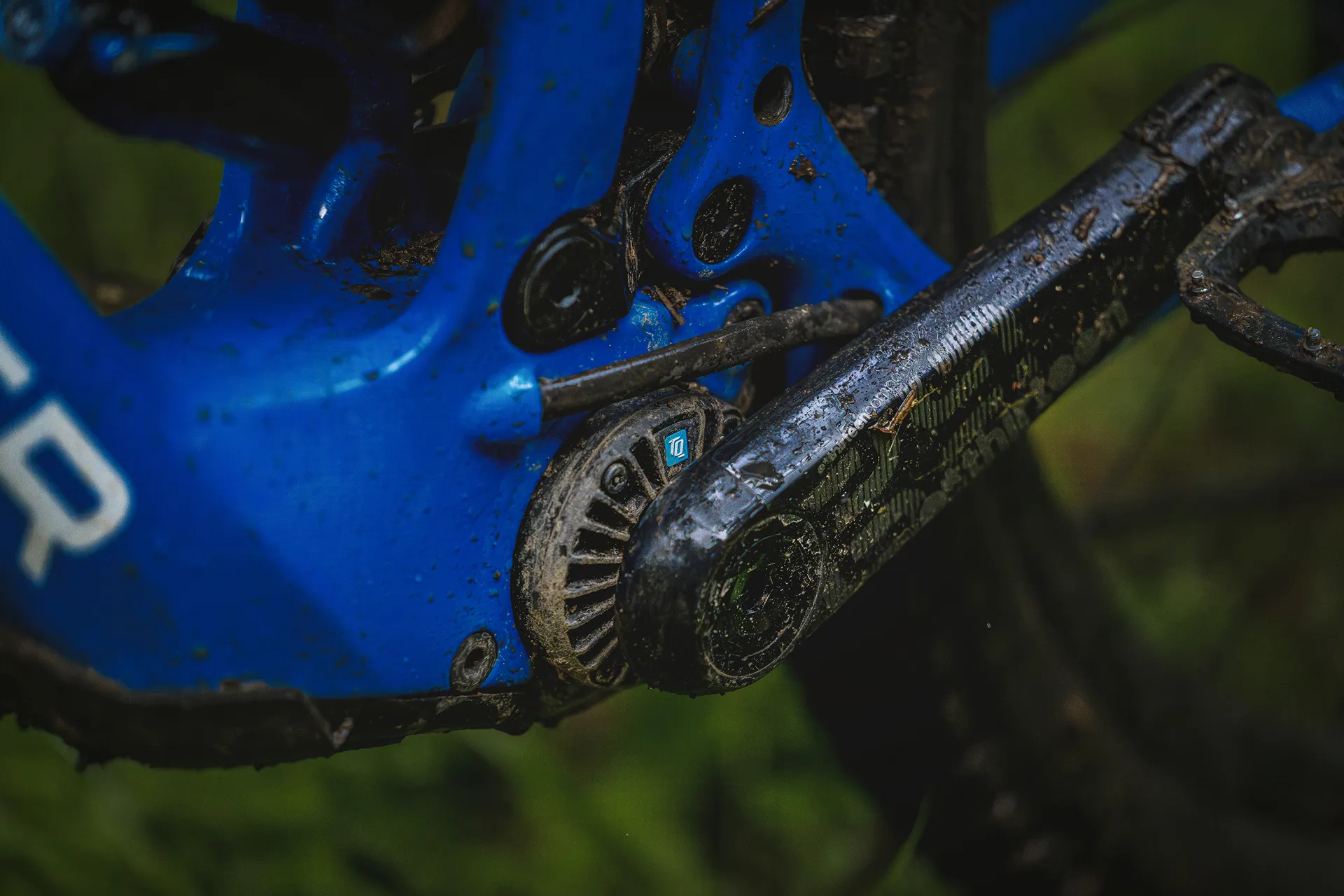

At the heart of the NEAT is the TQ drive system, this remarkable system achieves the dream of small size, light weight, reliability, low noise level and most importantly real, useable power.

TQ-HPR50 -

Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%

Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent.

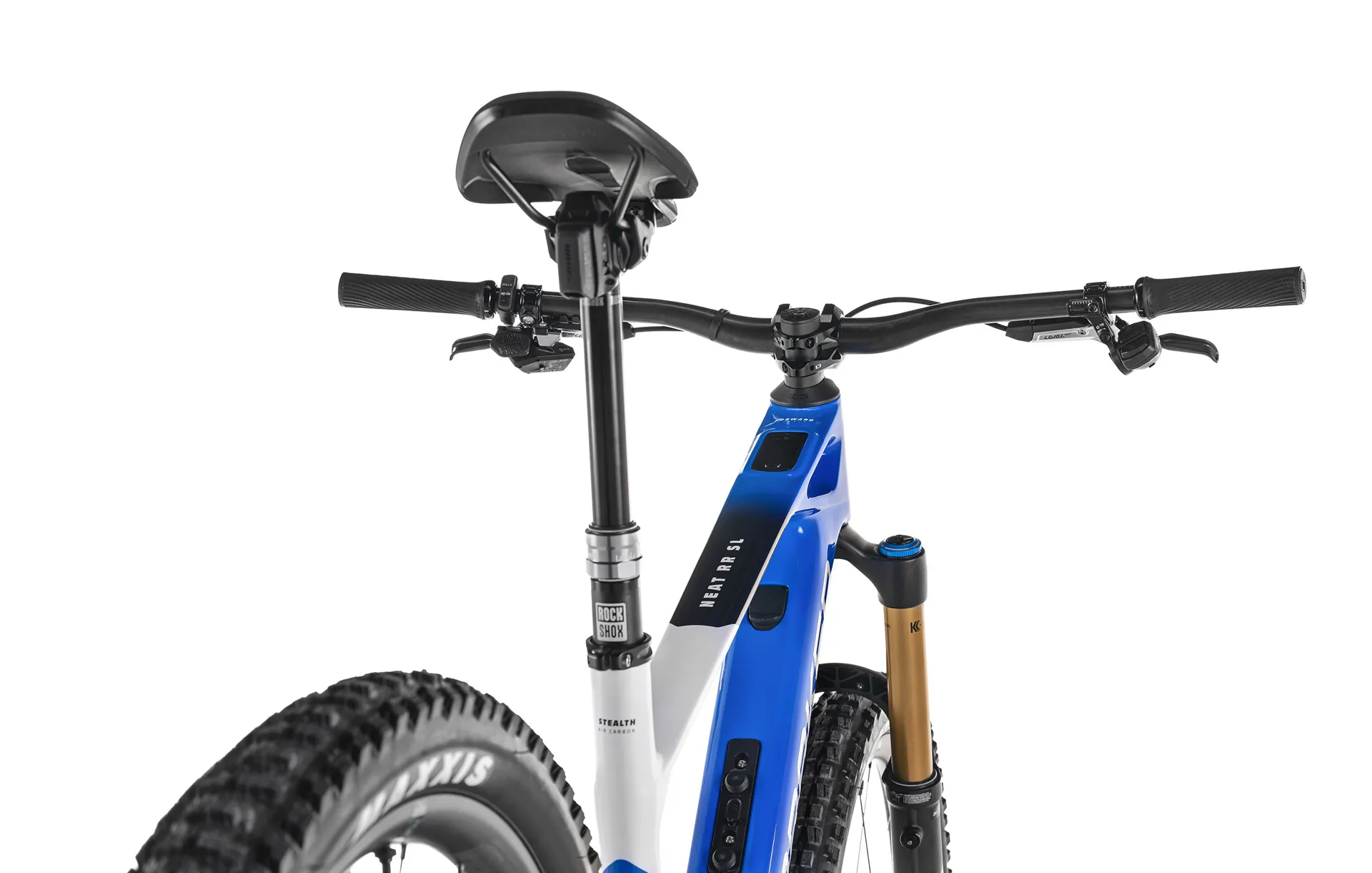

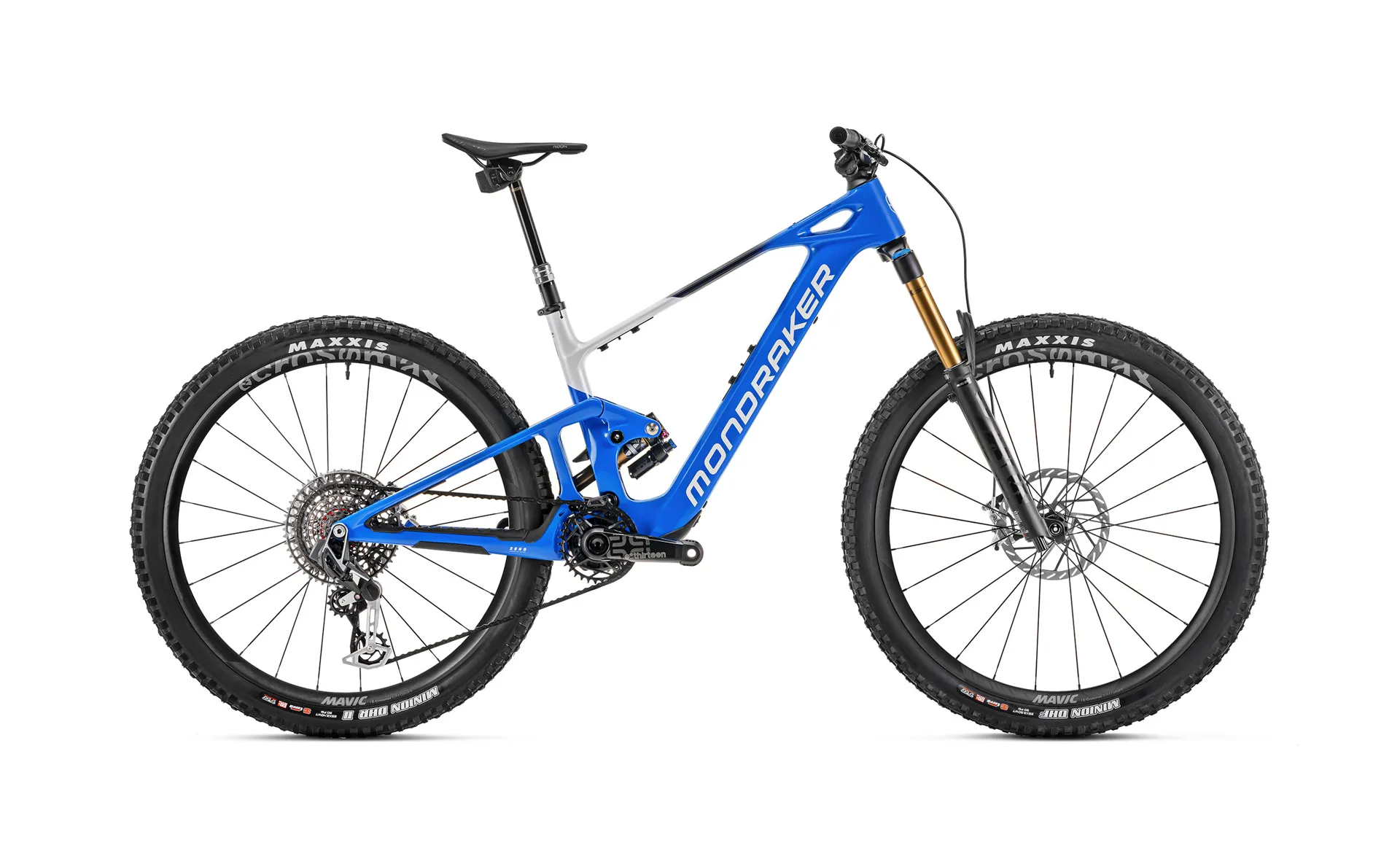

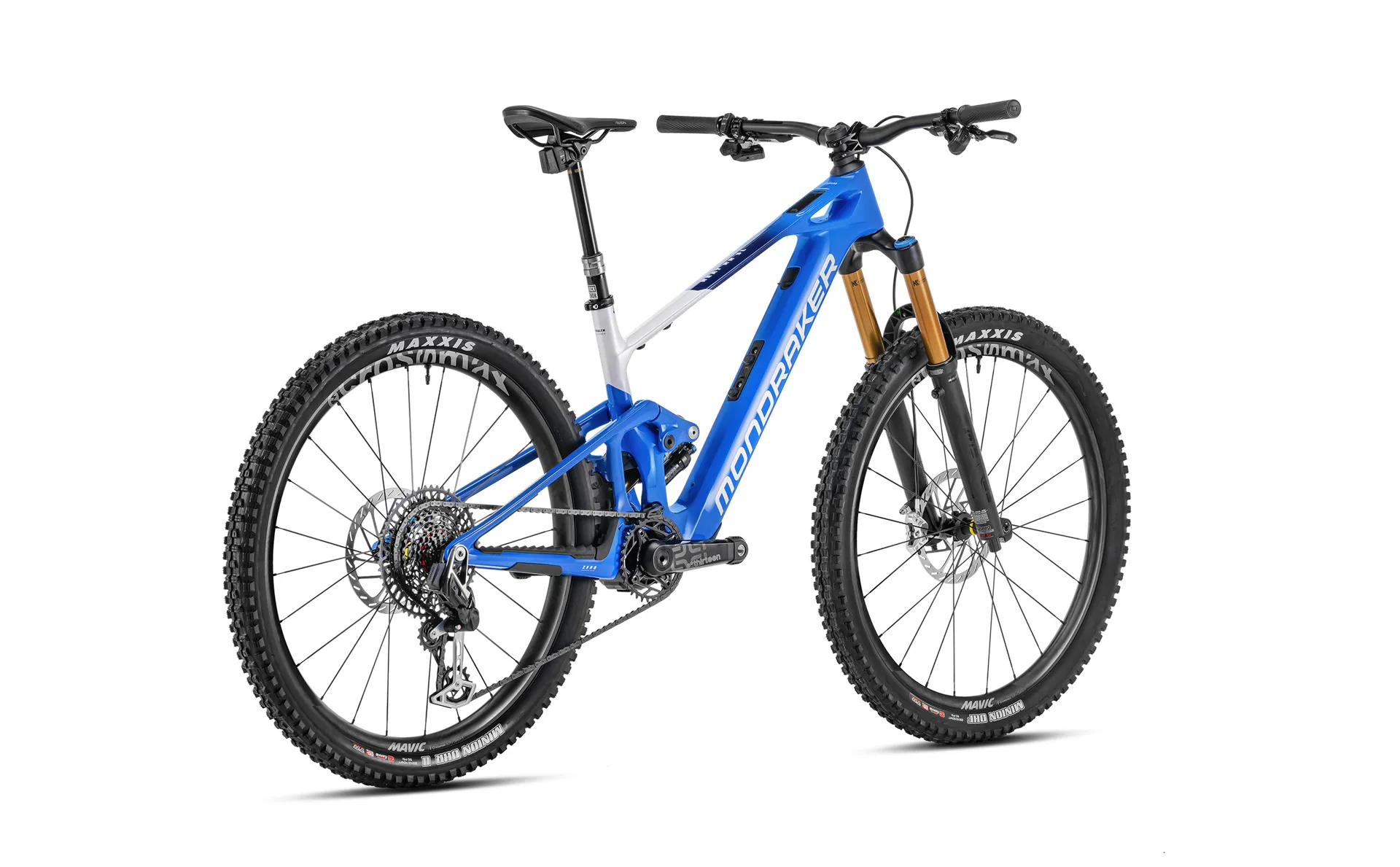

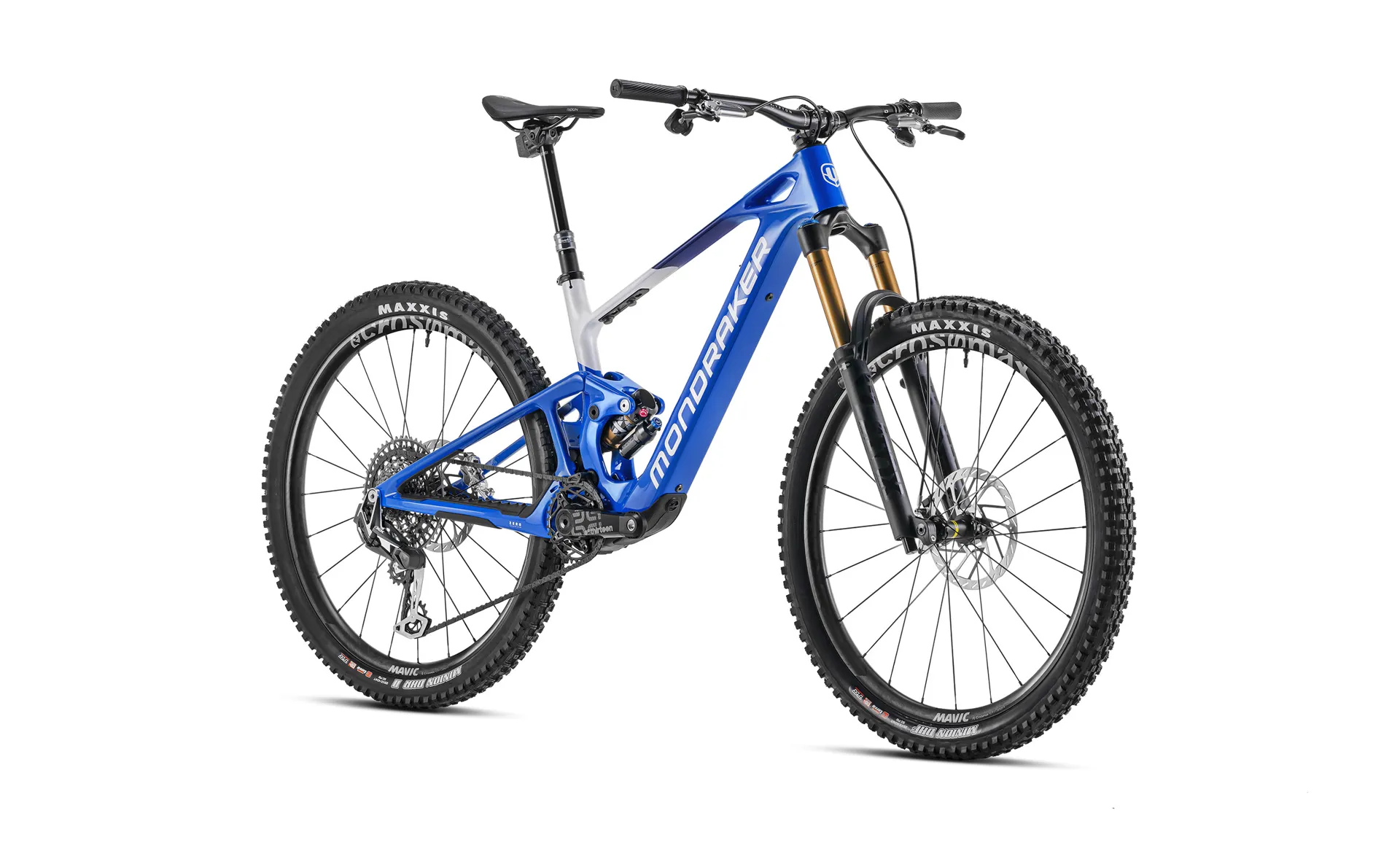

Seen here is the top-of-rangeNEAT RR SL, with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM XX Eagle T-Type AXS transmission, RockShox Reverb AXS seatpost and Mavic E-CrossMax Carbon XL R wheels.

Technical Information

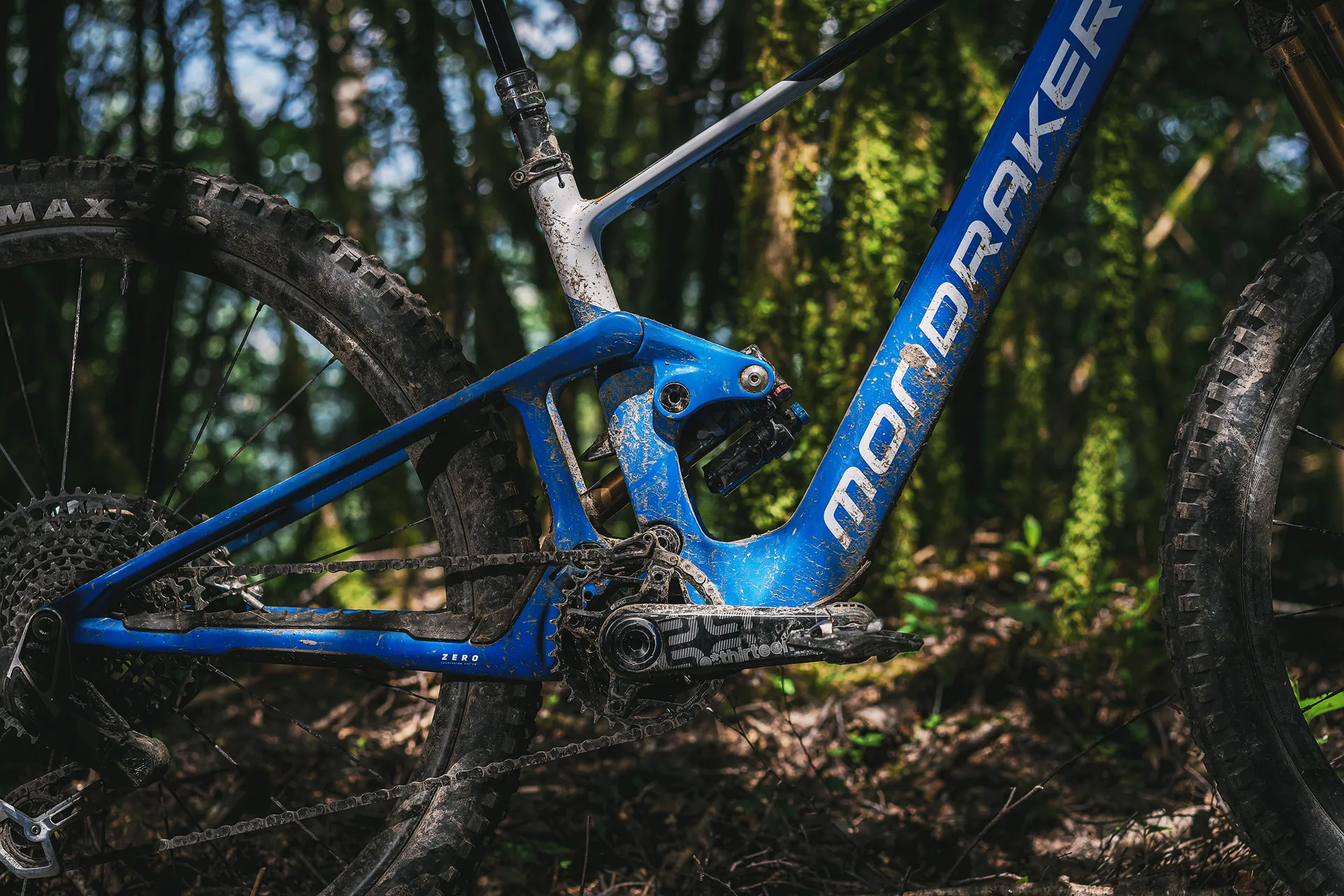

FRAMEStealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
SIZESS: 380mm / M: 420mm / L: 450mm / XL: 490mm

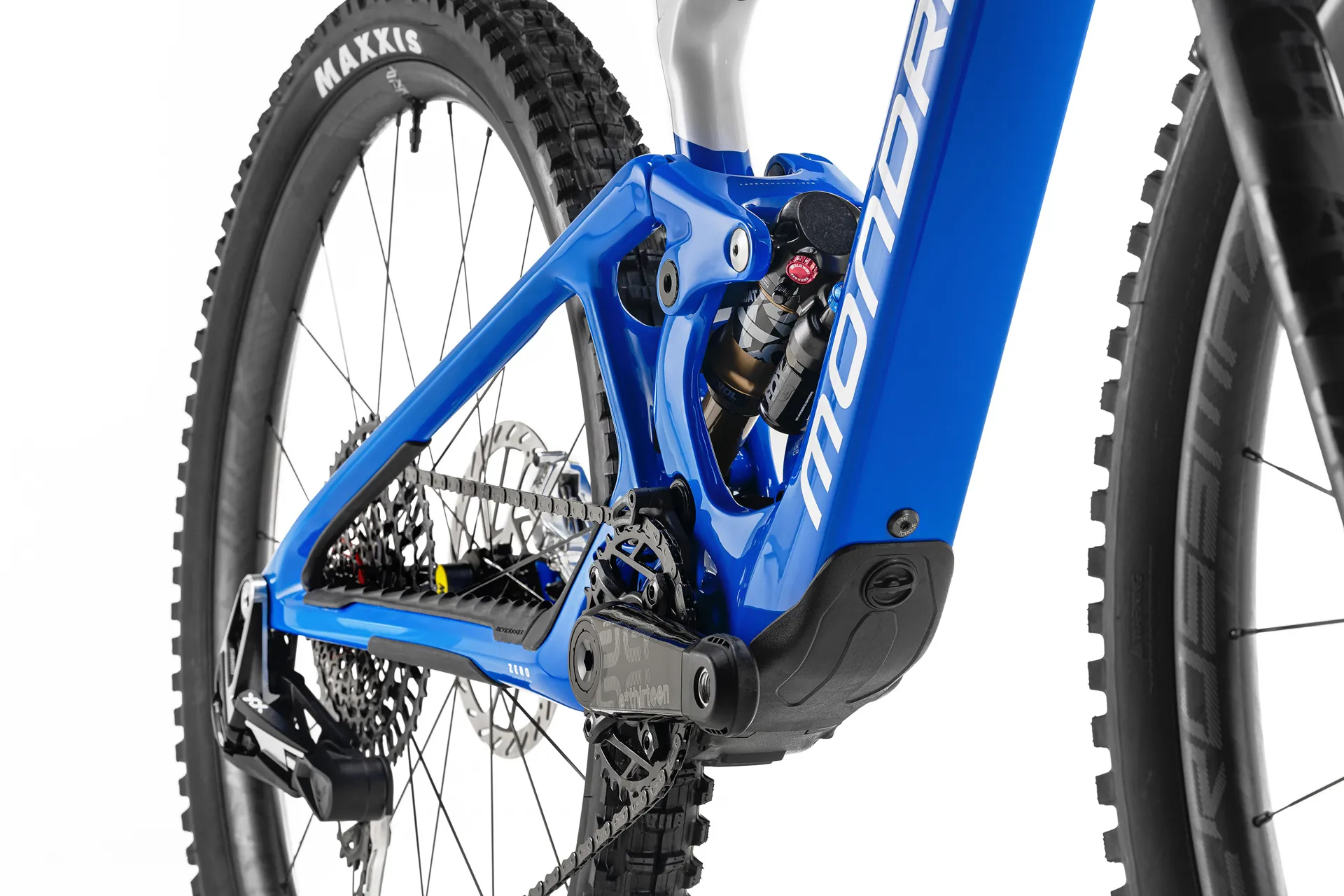

REAR SHOCKFox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGSMedium compression, medium rebound, air volume spacer 0.4

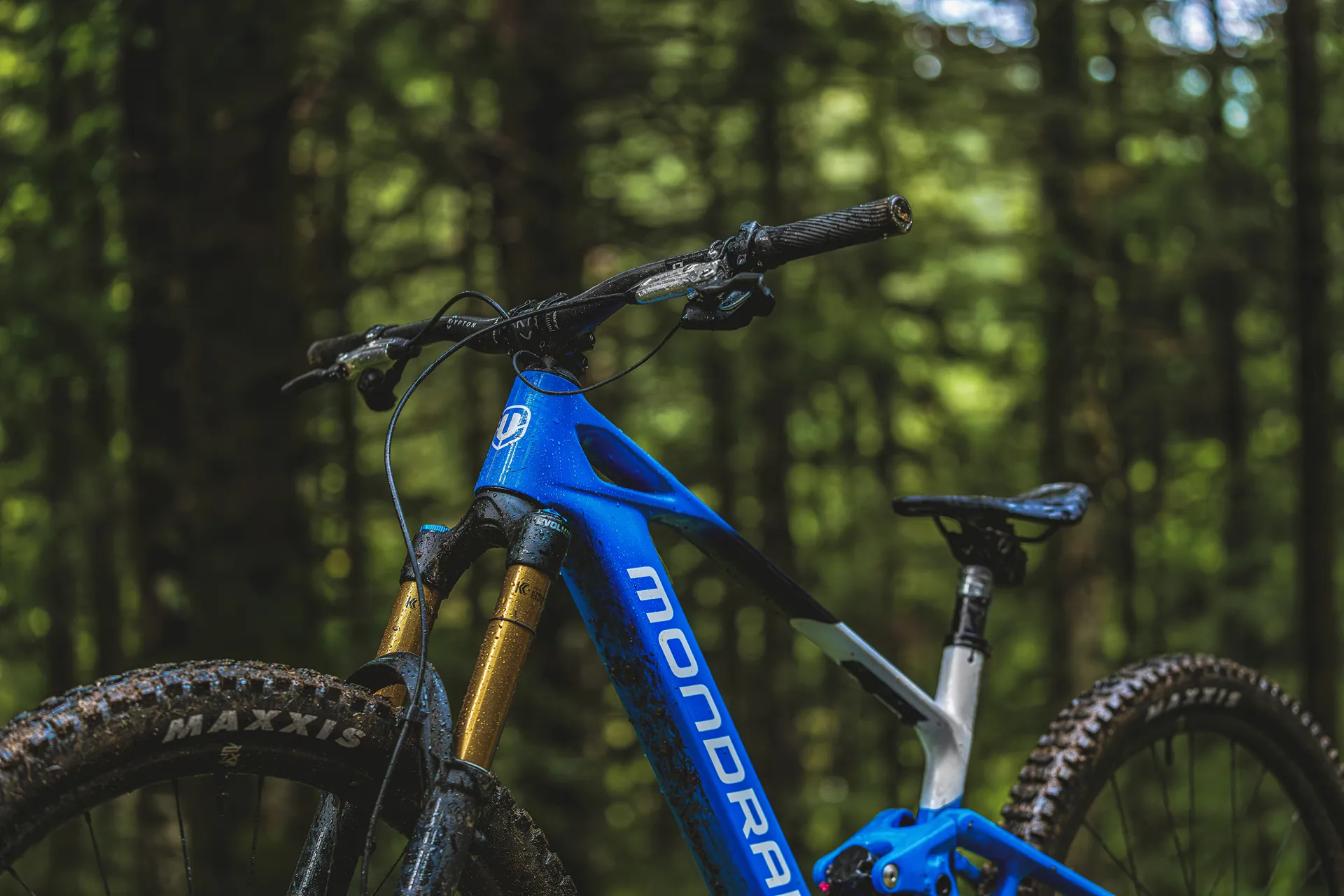

FORKFox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

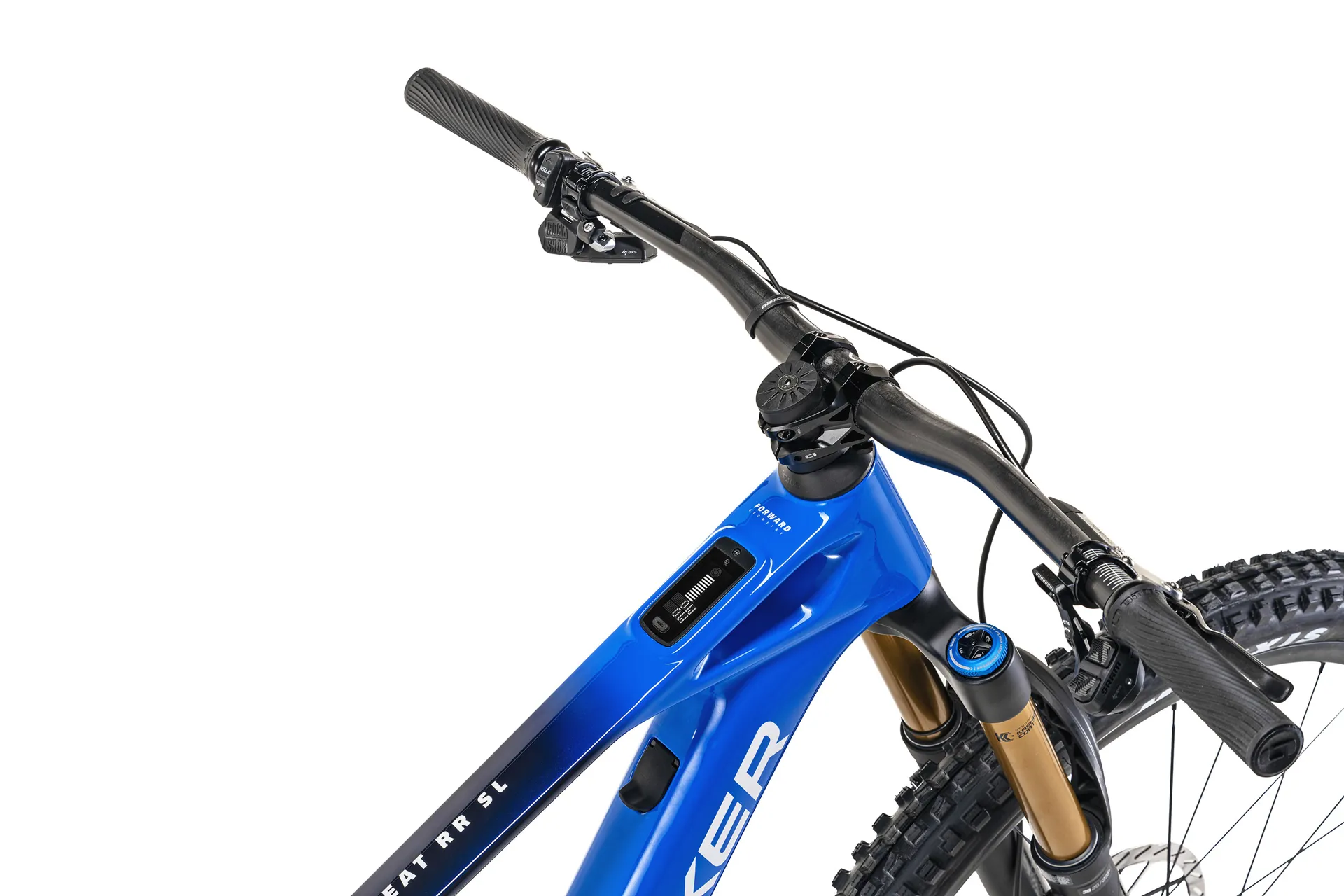

HEADSETAcros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
STEMOnoff Krypton FG 30mm, CNC, 31.8mm barbore
HANDLEBAROnoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPSOnoff Desert, 1lock-on, 135mm
SEATPOSTRockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
SADDLEFizik Terra Aidon Slim X5
FRONT BRAKESram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKESram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVERSram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
RIMSMavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
SPOKESMavic 28 straight-pull double butted spokes
FRONT HUBMavic Infinity hub, Boost 15x110mm, IS 6 bolts
REAR HUBMavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
FRONT TIREMaxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TIREMaxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

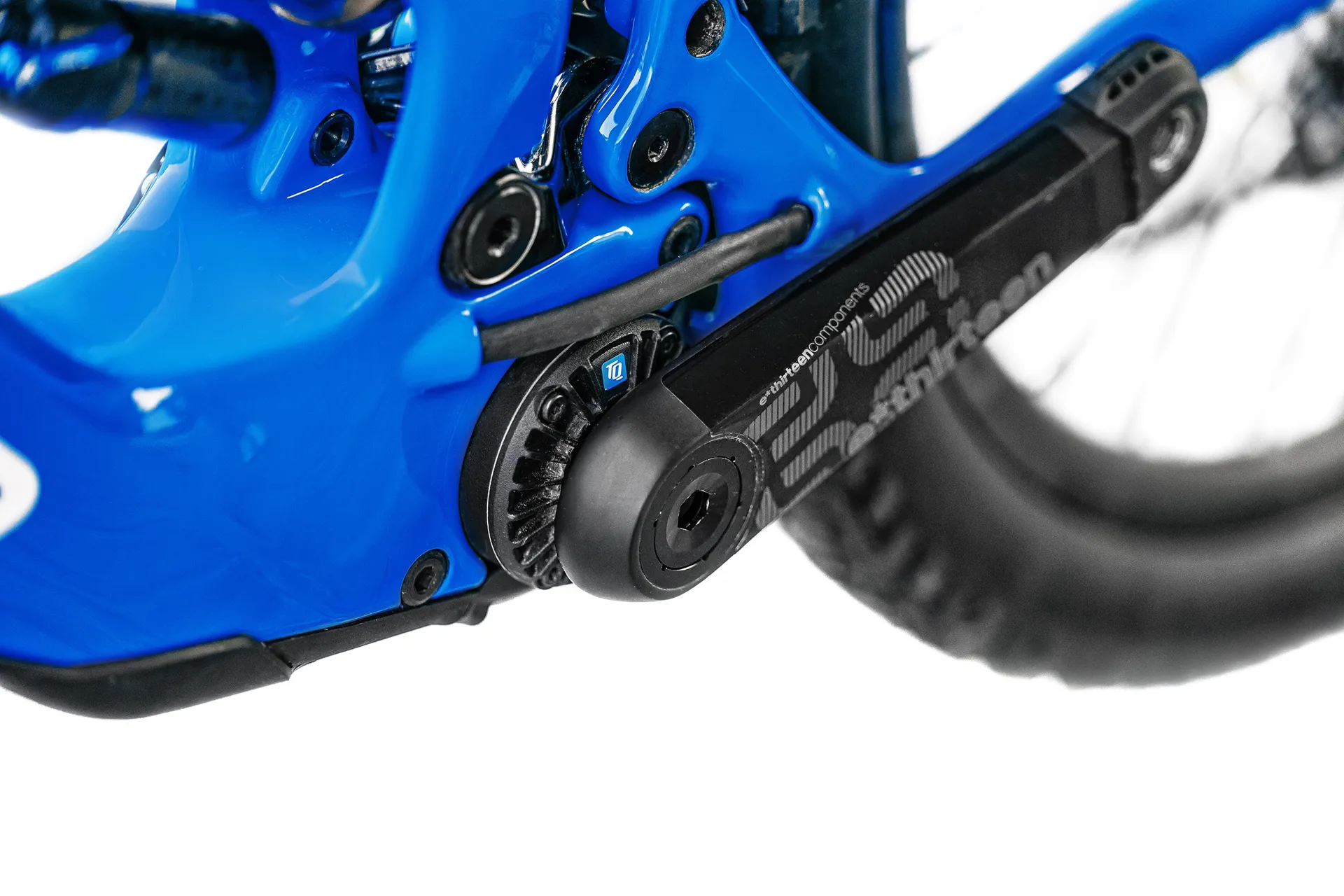

CRANKSETE.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
RINGSSram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
CHAINSram X0 Eagle T-Type, 12s, Powerlock
REAR DERRAILLEURSram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
SHIFT LEVERSSram Eagle AXS Pod MMX, 12s
CASSETTESram XG-1295, 10-52T, T-Type, 12s

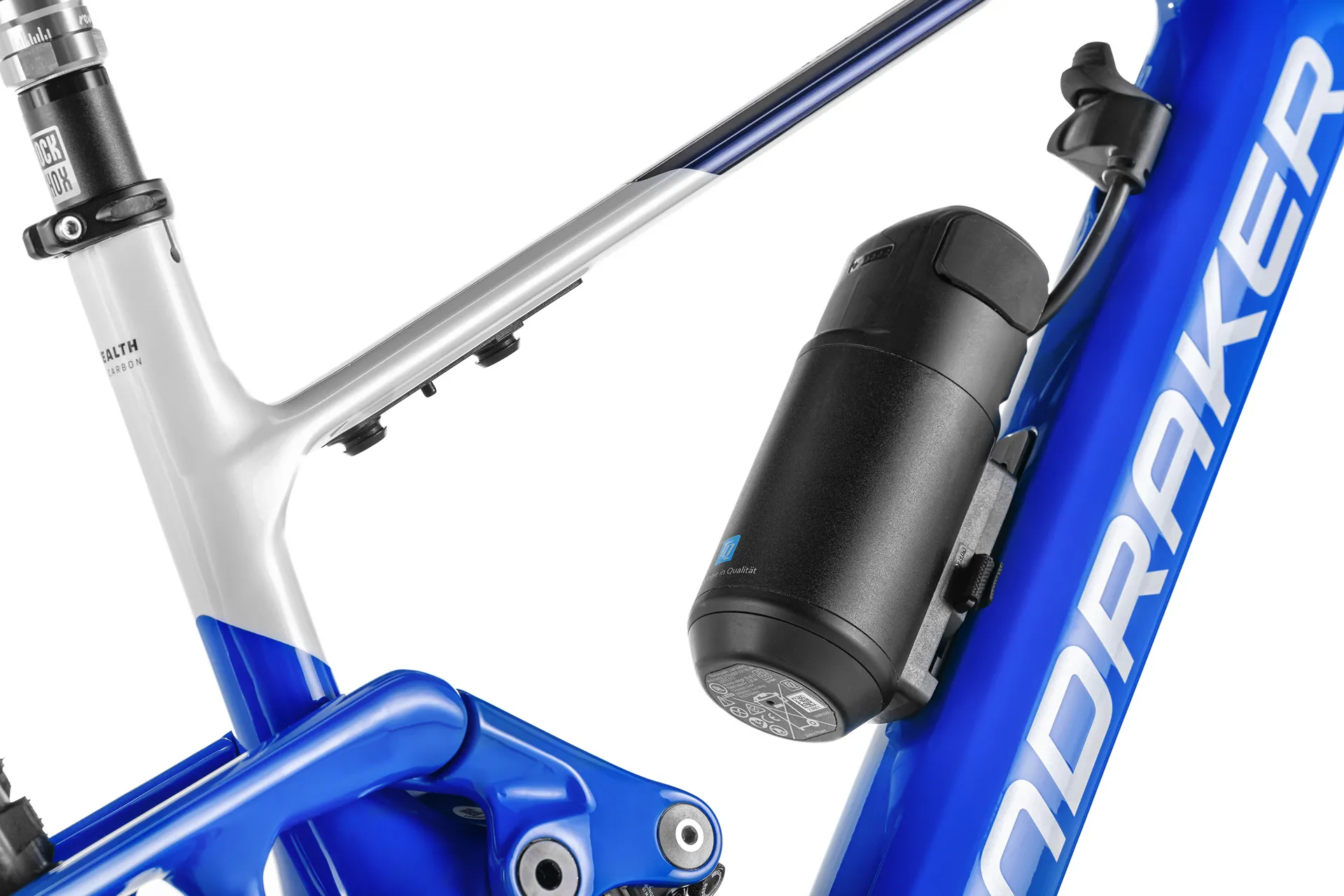

OTHERSMondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
WEIGHT17.9 kg - Max System Weight 150kg

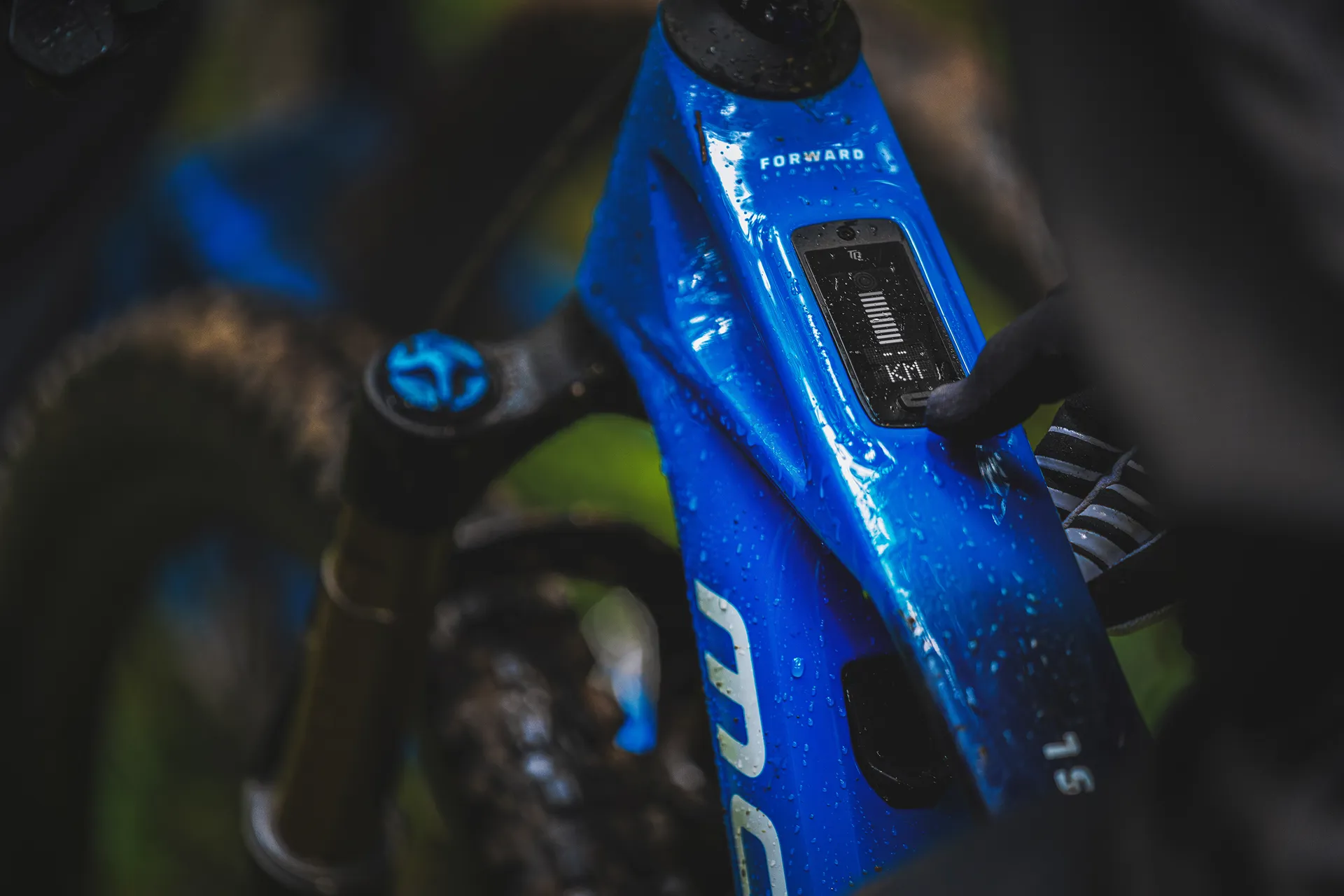

DISPLAYTQ HPR display V01
MOTORTQ HPR-50
BATTERYTQ HPR-50 360Wh integrated and removable
Sizing Information

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+

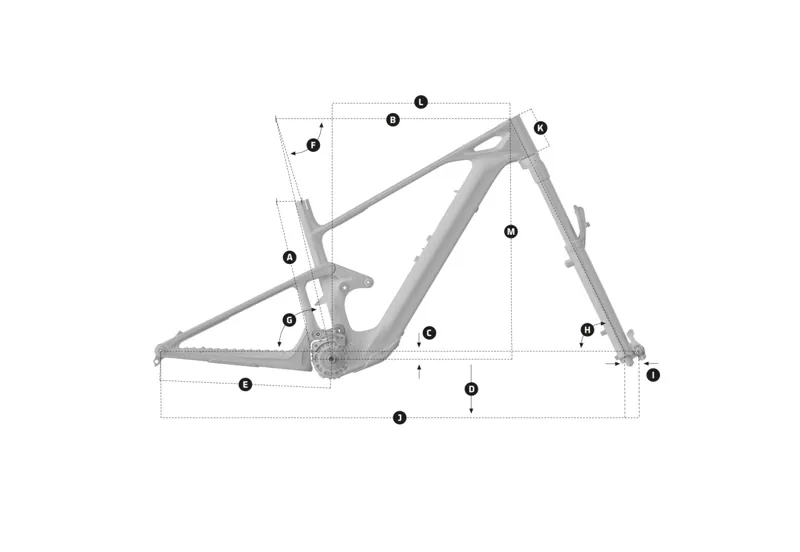

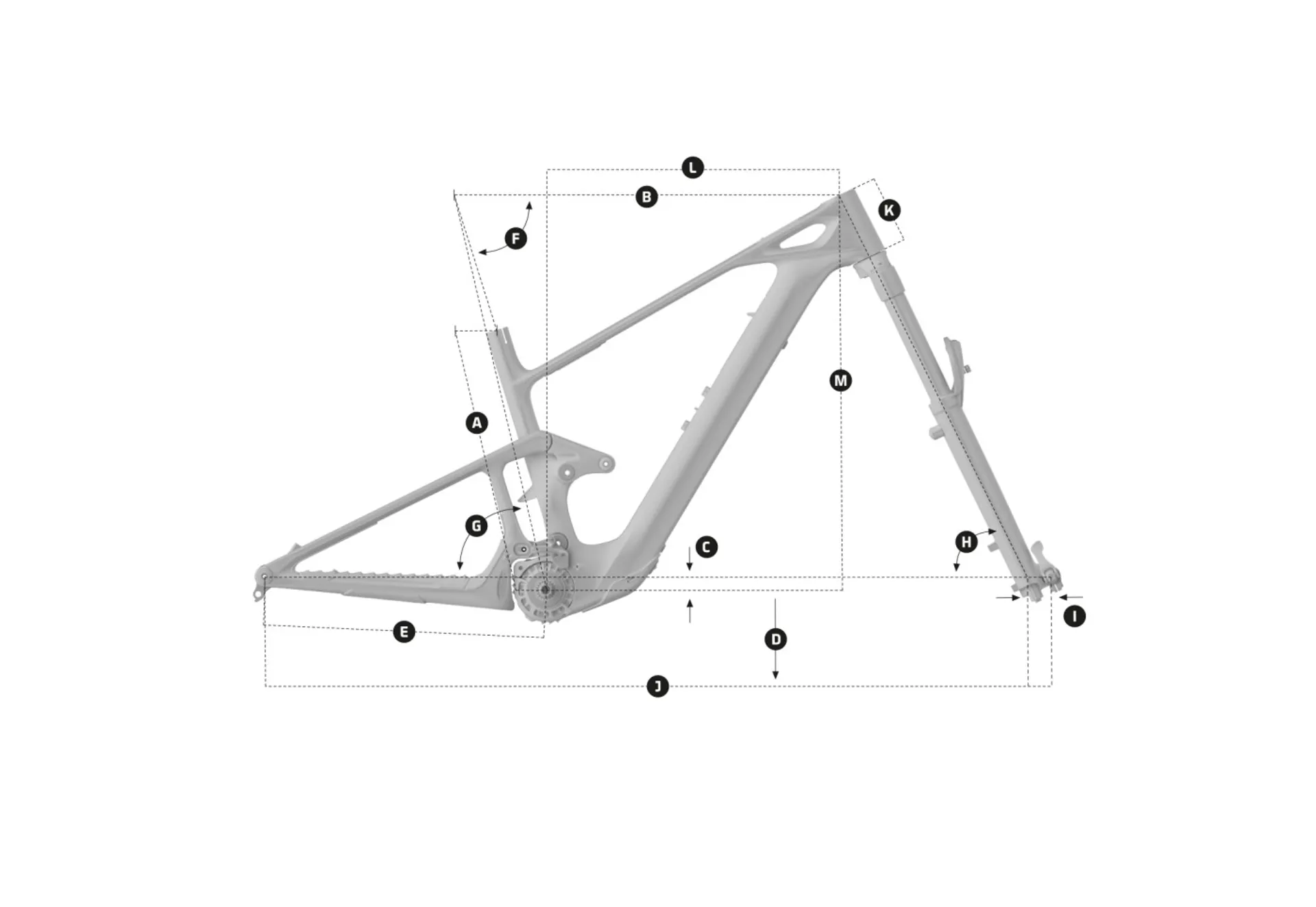

Mondraker Neat Geometry
FRAME SIZE
SMLXL
ASeattube length380mm420mm450mm490mm
BToptube length595mm615mm640mm660mm
CBottom bracket drop-25mm-25mm-25mm-25mm
DBottom bracket height348mm348mm348mm348mm
EChainstay length450mm450mm450mm450mm
FSeat tube angle72.6º72.6º72.6º72.6º
GEffective seattube angle76.5°76.5°76.5°76.5°
HHeadtube angle64.5º64.5º64.5º64.5º
IFork Offset44mm44mm44mm44mm
JWheelbase1235mm1255mm1275mm1295mm
KHeadtube length110mm110mm130mm140mm
LReach450mm470mm495mm515mm
MStack626mm626mm642mm650 mm
