Mondraker Level XR Black/Polaris/Silver

Brand:Mondraker

Code:1024468LEVEL XRBlack Pola

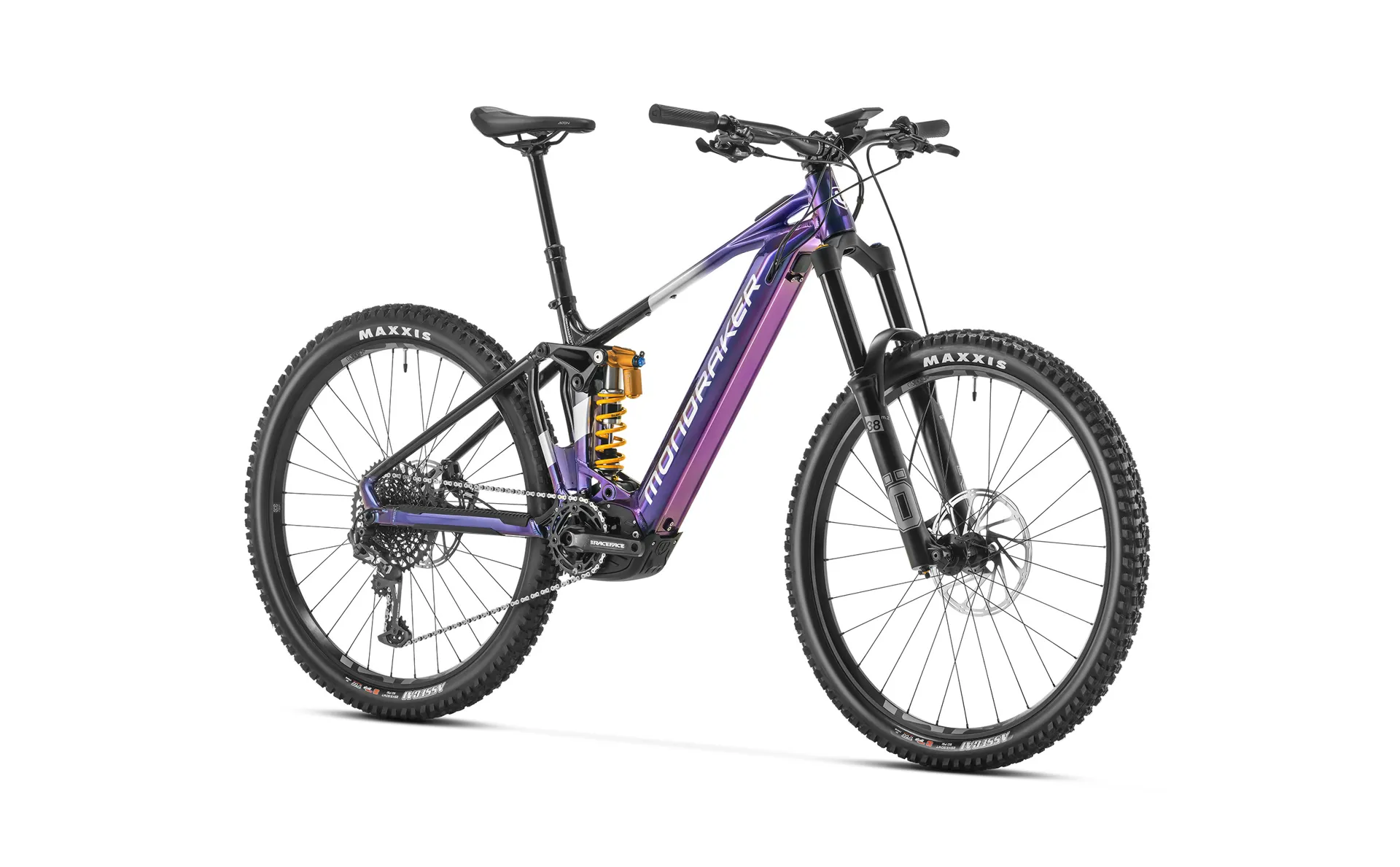

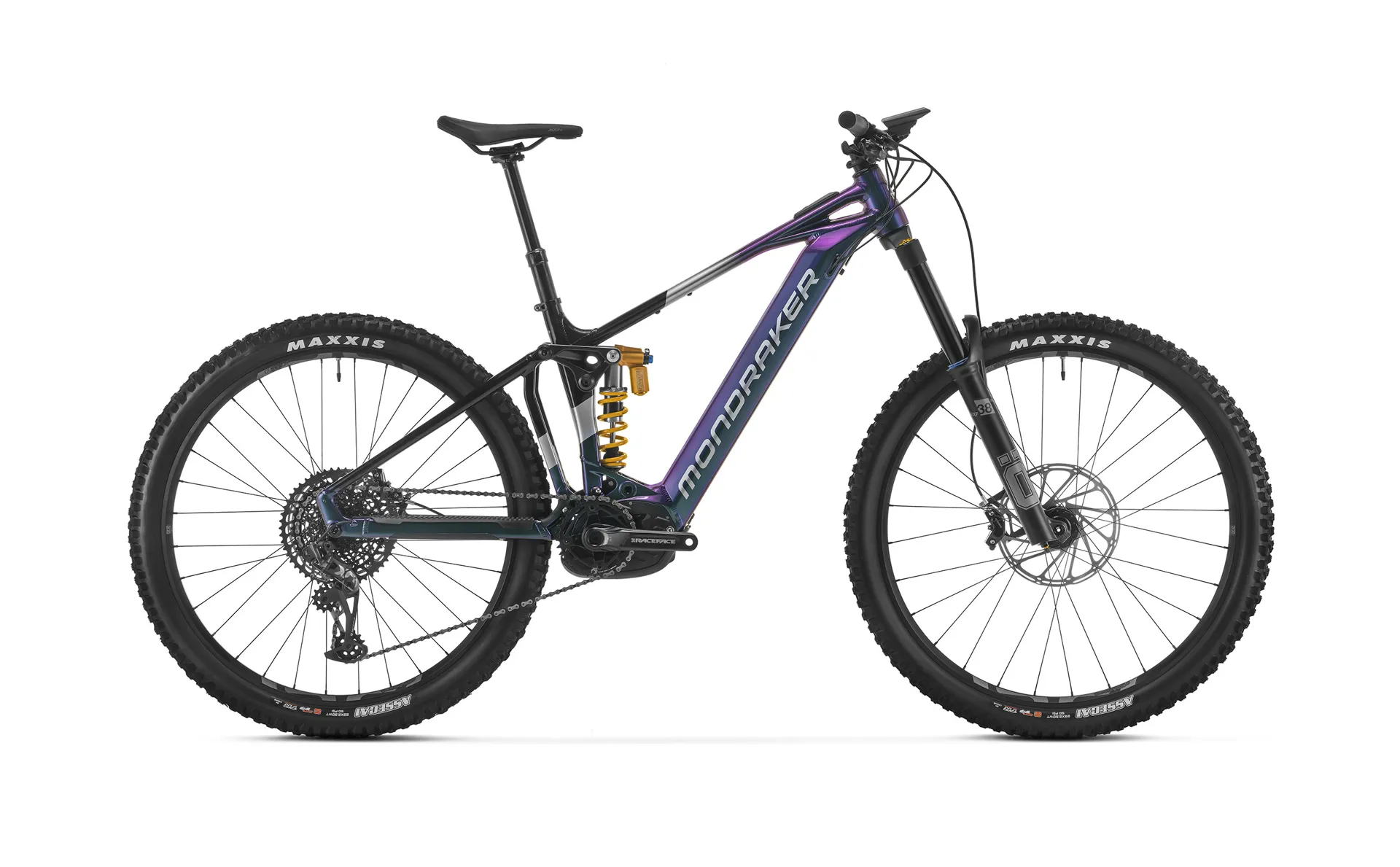

Mondraker's Level brings electric pedalpower to the super enduro category. The Level is a big travel electric mountain bike for tough enduro stages, racing and wild bikepark laps.

With a 180mm fork up front followed by 170mm travel at the rear, the LEVEL XR is the most radical super enduro E-MTB animal in the family. The Bosch Performance Line CX G4 Smart System motor’s comes paired with a KIOX 500 display, the new 3-button Mini Remote control (with wireless Bluetooth operation) and the new System Controller integrated into the top tube. The 750Wh battery simply lets you to enjoy more range, whatever your plan of attack. The LEVEL XR comes as stock with Öhlins suspension of course, an RFX38 M.2 fork and a TTX22M coil shock. SRAM’s X01 Eagle/GX Eagle drivetrain puts the power down, e*thirteen’s E*Spec Plus wheels keep things rolling and SRAM’s Code RSC, silver stealth brakes stop you on a dime with ONOFF Components providing the cockpit and contact points.

Bosch Smart System-

The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.

Technical Information
Frame -Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Rear shock -Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings -C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs
Fork -Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset -ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem -ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar -ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips -ONOFF Desert, 1lock-on, 135mm
Seatpost -ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle -FIZIK Terra Aidon X5 145mm
Front brake -Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake -Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever -Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims -e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes -e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub -e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub -e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts
Front tire -Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire -Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset -Race Face Aeffect ebike, 165mm
Rings -Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain -Sram GX Eagle, 12s, Powerlock
Rear derailleur -Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers -Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette -Sram XG-1275, 10-52T, 12s
Derailleur hanger -Mondraker M068
Weight -25,8 kg
Display -Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor -Bosch Performance Line CX Cruise (25Km/h) Smart System
Battery -Bosch Powertube 750Wh
Sizing Information
  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+
