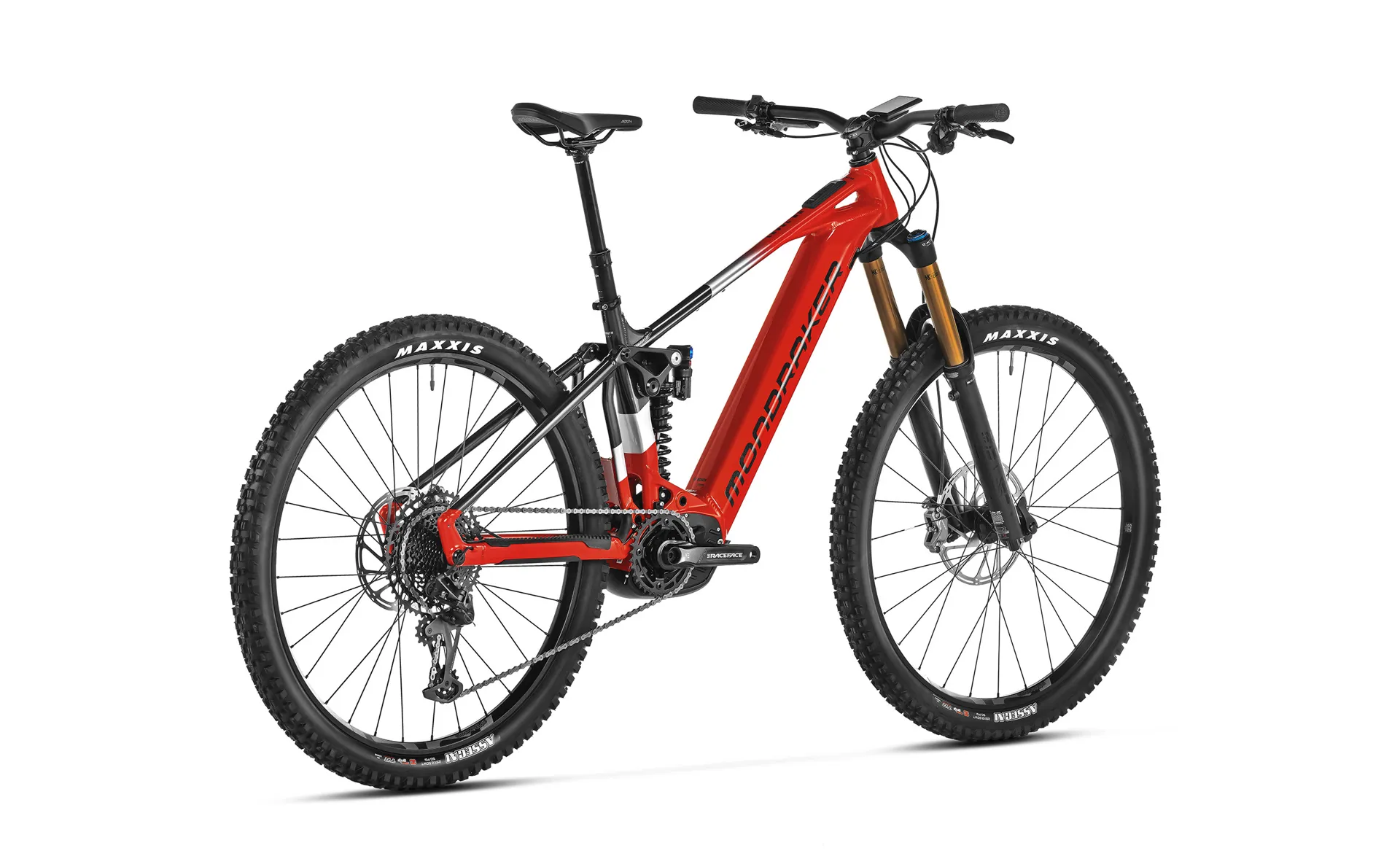

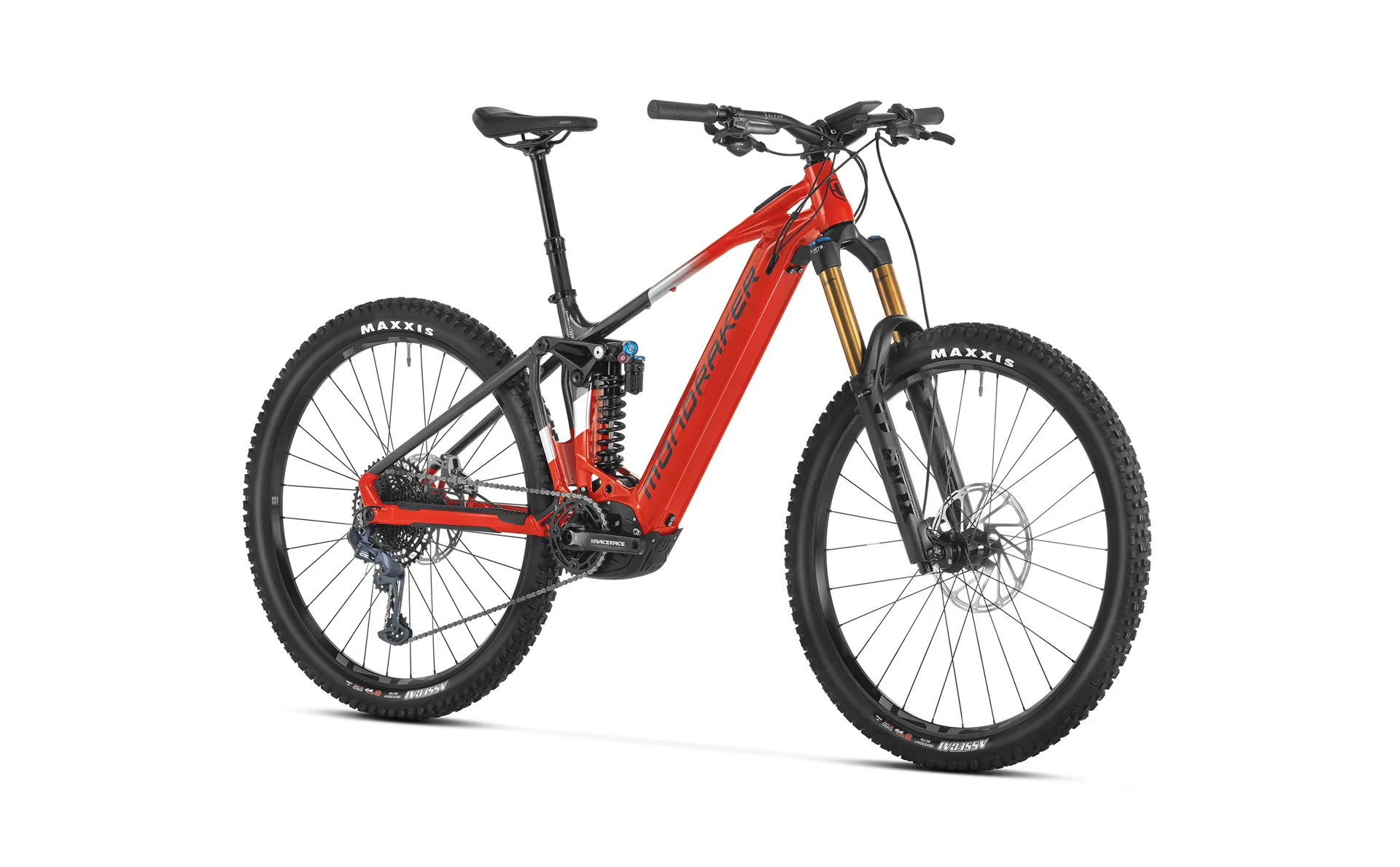

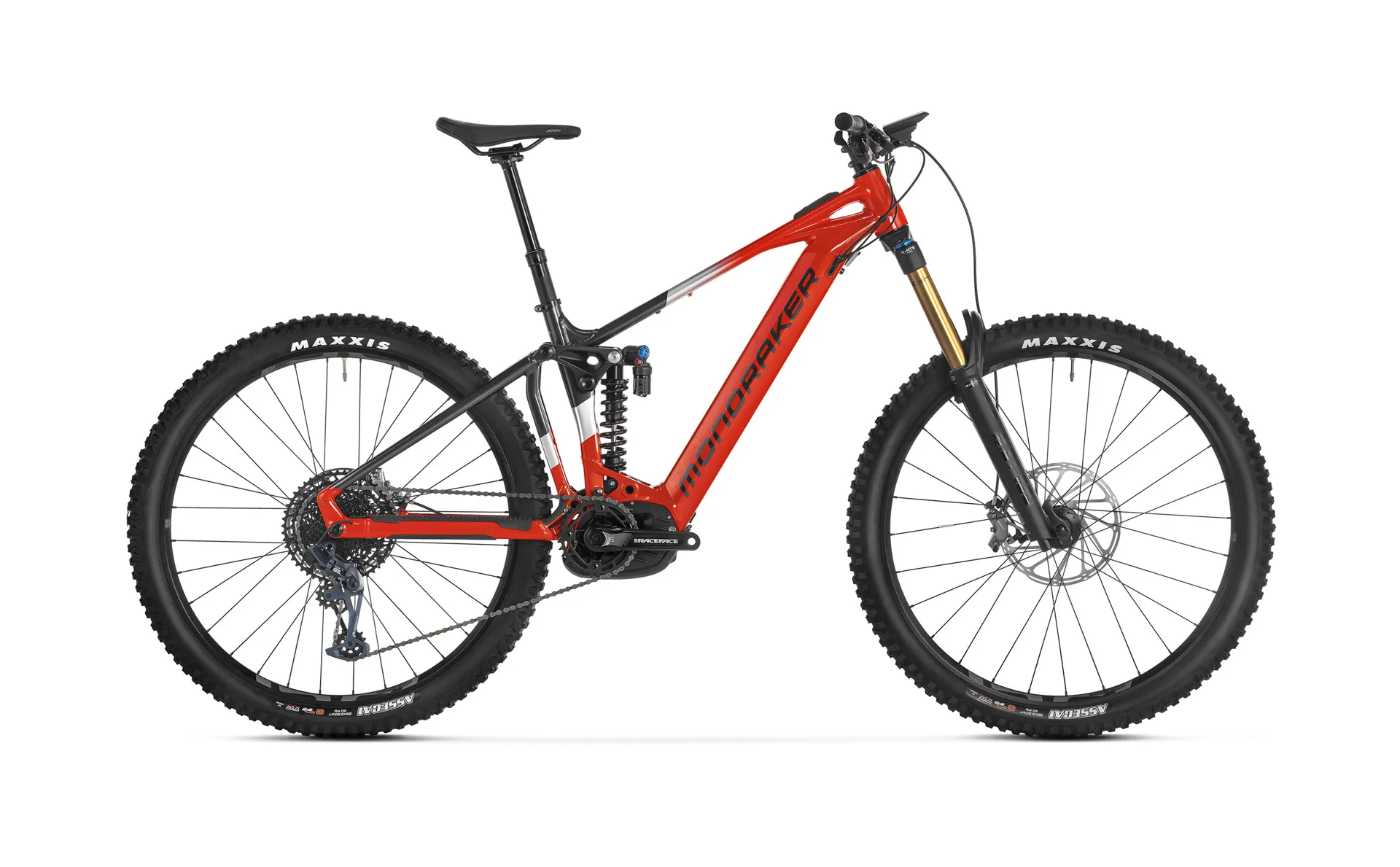

Mondraker Level RR Red

Brand:Mondraker

Code:1024464LEVEL RRRED GRAY S

You like shredding the downs more than grinding the ups. We get that. That said you want something more versatile than an eDH bike. We get that too. That’s why we made our most radical ebike, the Mondraker Level.

The bike we made to mirror you and the trails you love. The Mondraker Level was born to be out on the gnarliest trails you’ve ever ridden. Lairy trials with rocks, roots, and drops... and then bike parks. That’s where you’ll make the most of its 180mm front and 170mm rear travel.

The 3 models in the range are equipped with Bosch’s Performance Line CX GEN4 BS3 motor combined with the new wireless Mini Remote and the integrated System Controller.

All of that and 750Wh batteries combine to let you climb to the trail-head as many times as you want so you can send those descents as often as you like. We created the Mondraker Level to make it easy for you to do what you enjoy most: shred.

Technical Information
FRAME
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
SIZESS: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCKFox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGSMedium compression, medium rebound. Spring rate: S size 300 lbs, M size 300 lbs, L size 350 lbs, XL size 400 lbs
FORK
Fox 38 29 Float FIT GRIP2 Factory Kashima, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
HEADSETOnoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEMOnoff Krypton FG 30mm, CNC, 31.8mm barbore
HANDLEBAROnoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPSOnoff Desert, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLEFIZIK Terra Aidon X5 145mm
FRONT BRAKESram Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKESram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVERSram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
RIMSe*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
SPOKESe*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
FRONT HUBe*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUBe*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
FRONT TIREMaxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
REAR TIREMaxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
CRANKSETRace Face Aeffect ebike, 165mm
RINGSSram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAINSram SX Eagle, 12s, Powerlock
REAR DERRAILLEURSram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERSSram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
CASSETTESram PG-1210, 11-50T, 12s
DERAILLEUR HANGERMondraker M068
WEIGHT26,9 kg
DISPLAYBosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
MOTORBosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
BATTERYBosch Powertube 750Wh
Sizing Information
Frame SizeMinimum HeightMaximum Height
S165cm (5’5”)170cm (5’7”)
M170cm (5’7”)180cm (5’11”)
L175cm (5’9”)187cm (6’1”)
XL185cm (6’1”)195cm (6’5”)

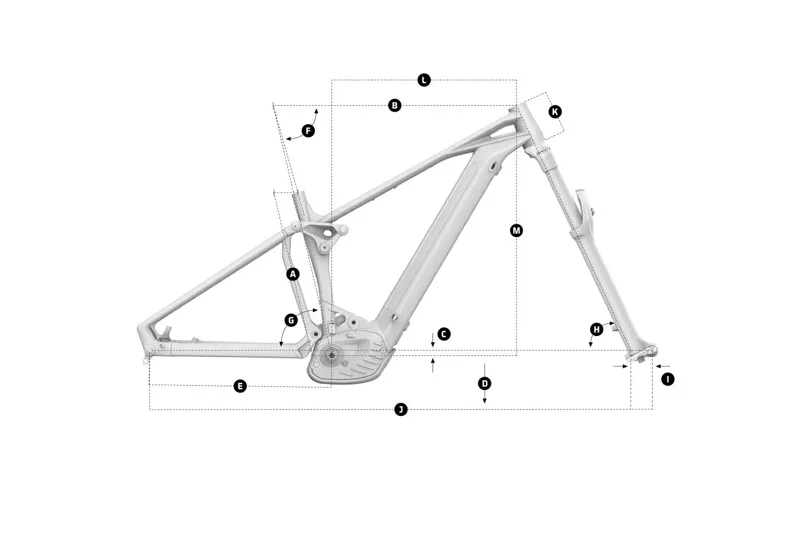

Frame SizeSMLXL
A – Seat Tube Length380 mm420 mm450 mm490 mm
B – Top Tube Length602 mm622 mm647 mm667 mm
C – Bottom Bracket Drop-15 mm-15 mm-15 mm-15 mm
D – Bottom Bracket Height357 mm357 mm357 mm357 mm
E – Chainstay Length455 mm455 mm455 mm455 mm
F – Seat Tube Angle, Actual73.5°73.5°73.5°73.5°
G – Seat Tube Angle, Effective76.5°76.5°76.5°76.5°
H – Head Tube Angle65°65°65°65°
I – Fork Offset44 mm44 mm44 mm44 mm
J – Wheelbase1250 mm1270 mm1290 mm1310 mm
K – Head Tube Length110 mm110 mm130 mm130 mm
L – Reach450 mm470 mm490 mm510 mm
M – Stack632 mm632 mm652 mm652 mm
