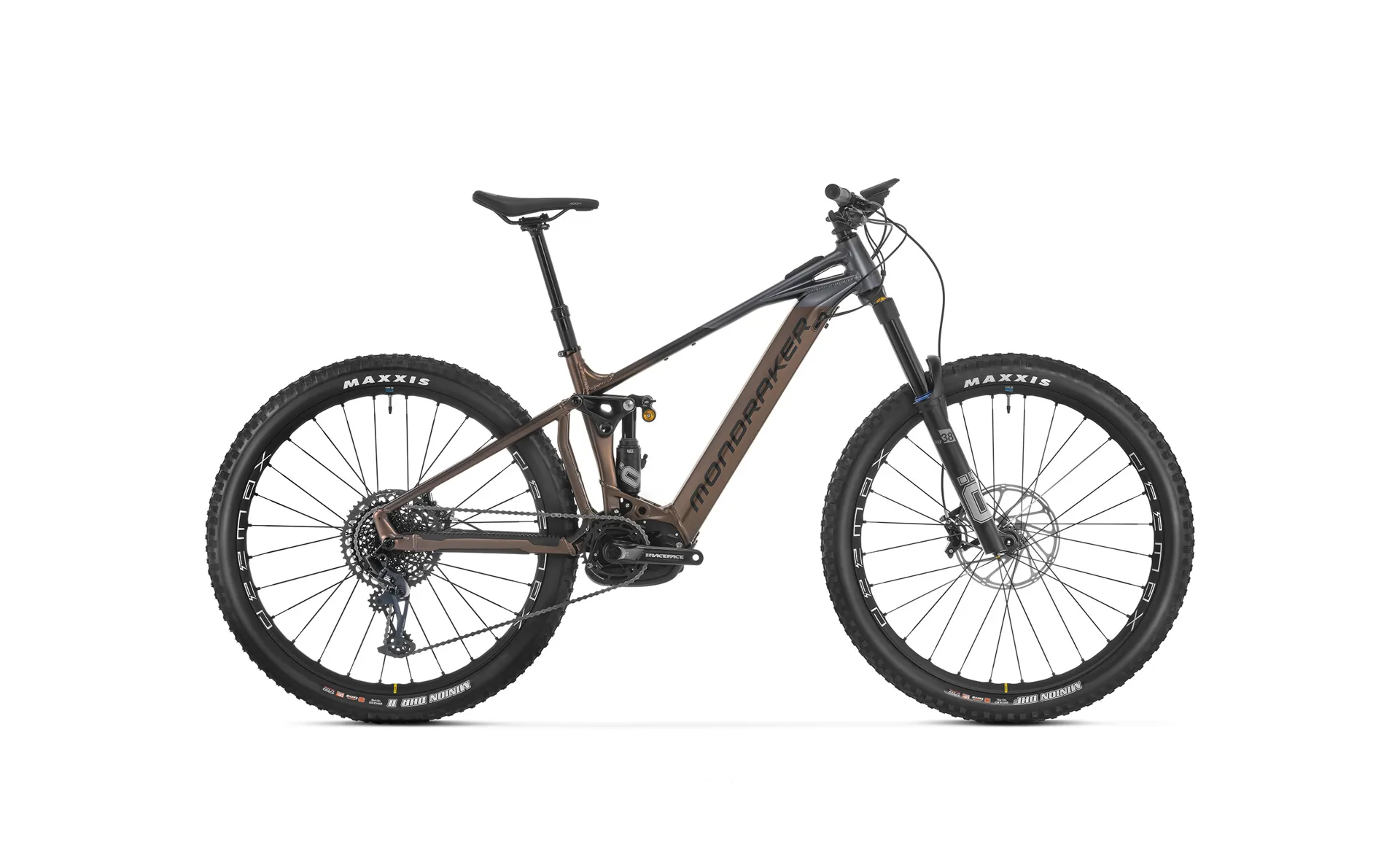

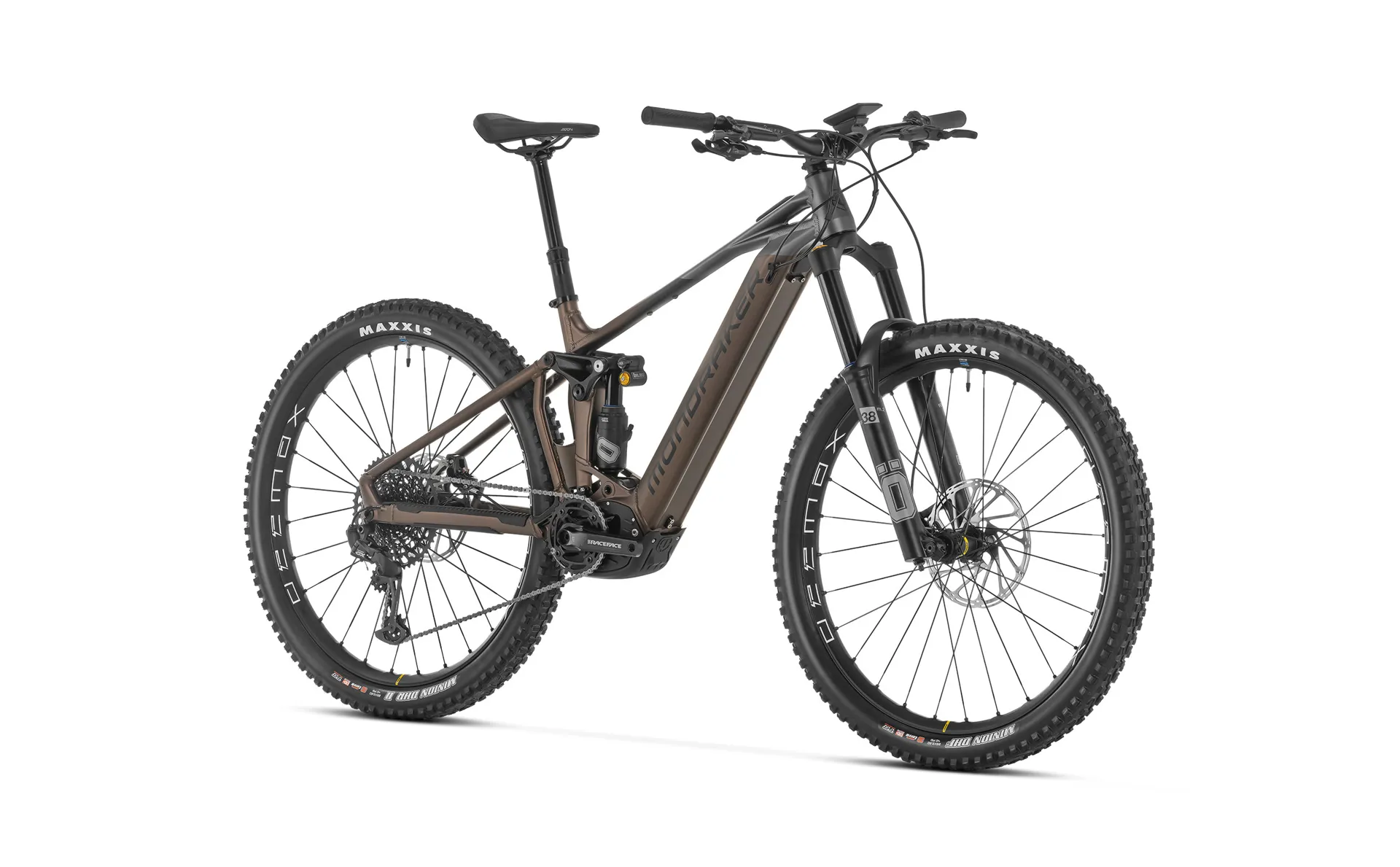

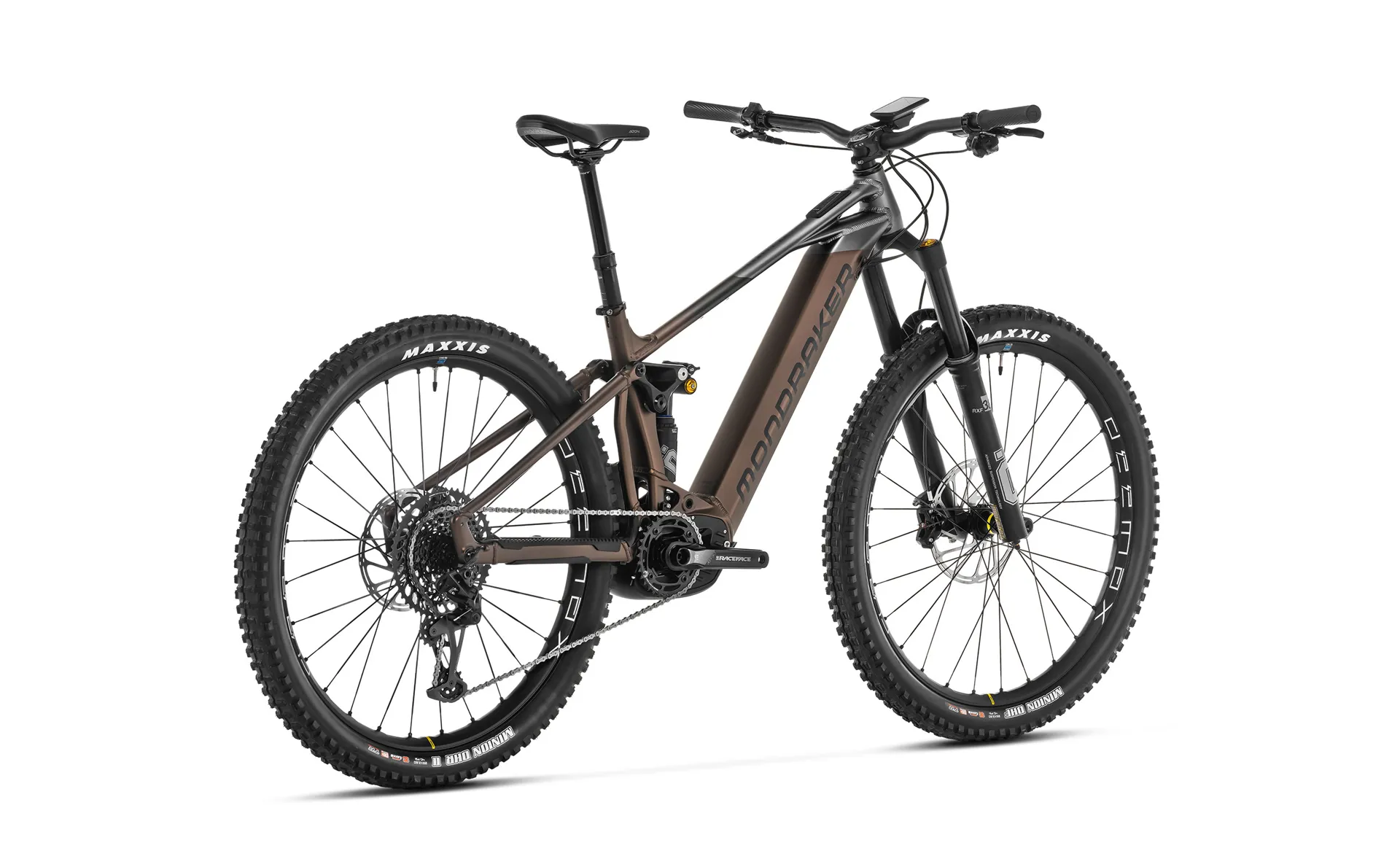

Mondraker Crafty XR Bronze/Grey

Brand:Mondraker

Code:1024408CRAFTY XRBronze Gr

For long days riding over demanding terrains and big features, Mondraker present the Crafty electric mountain bike. All that Mondraker frame design expertise boosted with the rider favourite Bosch Smart power unit makes for an E-MTB ready for everything theEarth has to offer. The aluminium frame shares the exact same geometry as the carbon, though makes these amazing bikes available at a lower price point.

TheCrafty XR is the top spec of the aluminium framed options and rocks Mondraker's ZERO suspension system kinematics which provides a super supple suspension action while at the same time not wasting any energy in the process. What’s more, the bike’s really agile on the trail which is much-needed in an E-MTB. It all adds up to maximum fun and excellent value for money. It comes complete with Bosch’s Performance CX Line GEN4 Smart Control motor, the all-new Mini Remote control and integrated System Controller. The Crafty R is without doubt one of the most competitive enduro e-bikes out there.

Bosch Smart System-

The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.

Technical Information
FrameCrafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link,HHGinternal cable routing,MAXcapacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear ShockÖhlinsTTXAir 205×65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock SettingsC20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
ForkÖhlinsRXF38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
HeadsetONOFFSaturn ZS44/ZS56 tapered for 1-1/8” to 1-1/2” head tube,ACBsealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
StemONOFFSulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HandlebarONOFFSulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GripsOnoff Desert, 1lock-on, 135mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm,
M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
SaddleFIZIKTerra Aidon X5 145mm
Front BrakeSram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor,
steel-backed metal sintered pads
Rear BrakeSram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor,
steel-backed metal sintered pads
WheelsetMavic E-Deemax S30 29
RimsMavic, 30mm internal width, Maxtal welded,PFP, tubeless, 28 spokes
SpokesMavic straightpull duble butted, contactless lacing
Front HubMavic, Boost 15×110mm, IS 6 bolts
Rear HubMavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front TyreMaxxis MinionDHF29×2.6, tubeless ready, 3CMAXXTERRA,EXO+ Protection, 120TPI, folding bead
Rear TyreMaxxis MinionDHRII 29×2.6, tubeless ready, 3CMAXXTERRA,EXO+ Protection, 120TPI, folding bead
CranksetRace Face Aeffect ebike, 165mm
ChainringSRAMX-Sync 2 Eagle 34T, steel, narrow-wide, 104BCD
ChainSRAMNX Eagle, 12s, Powerlock
Rear DerailleurSRAMGX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
ShifterSRAMTrigger GX Eagle, 12s, X-Actuation 1:1, single click
CassetteSRAMXG-1275, 10-52T, 12s
Derailleur hangerMondraker M068
DisplayBosch System Controller / Bosch Kiox 500
RemoteBosch Mini Remote
MotorBosch Performance Line CX Cruise (25Km/h) GEN4 BS3
BatteryBosch Powertube 750Wh (battery weight 4.4kg)
ChargerBosch 4A (2.1h 50% – 6h 100%)
Quoted Weight25.0kg
Max System Weight150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Sizing Information
  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+
