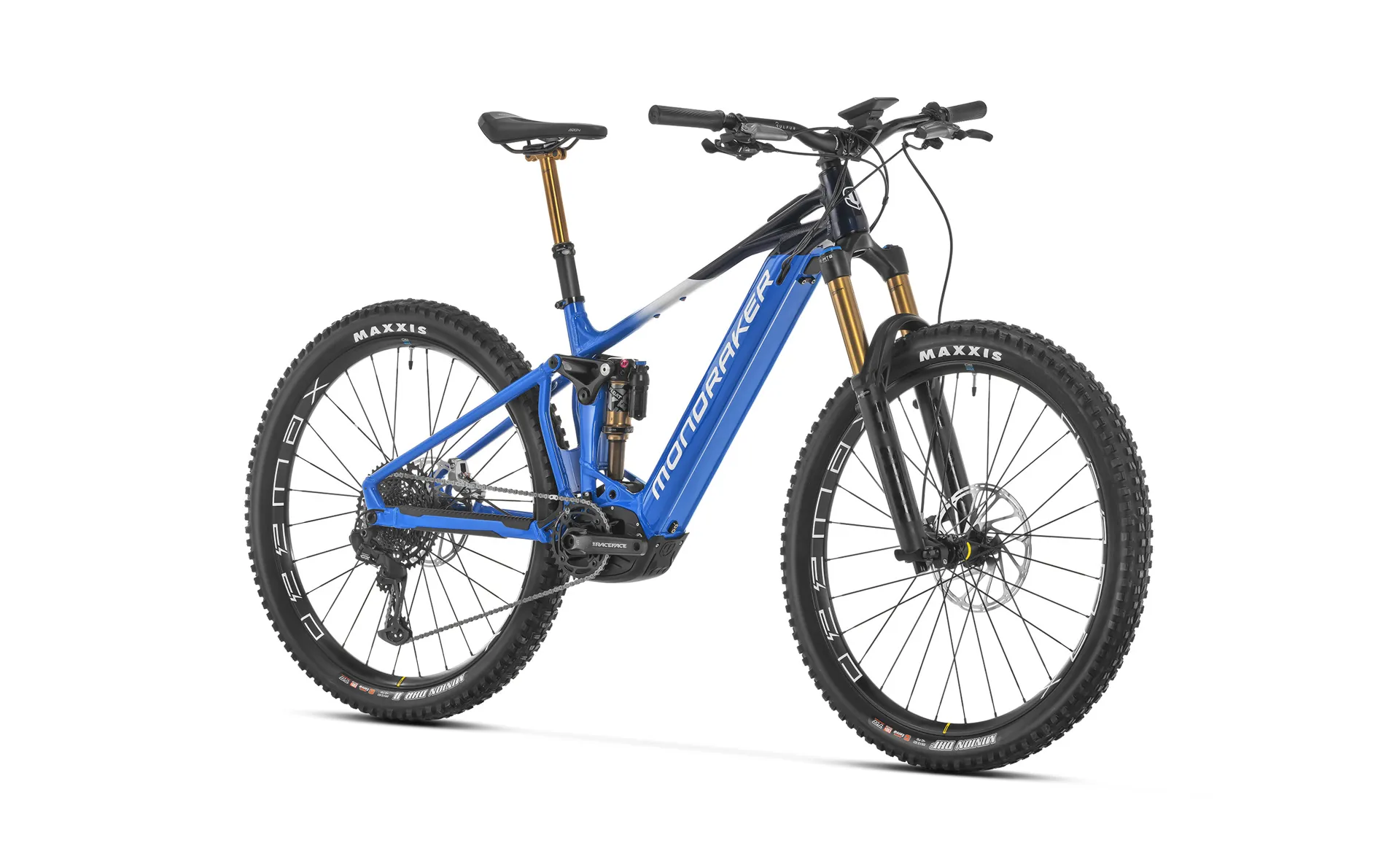

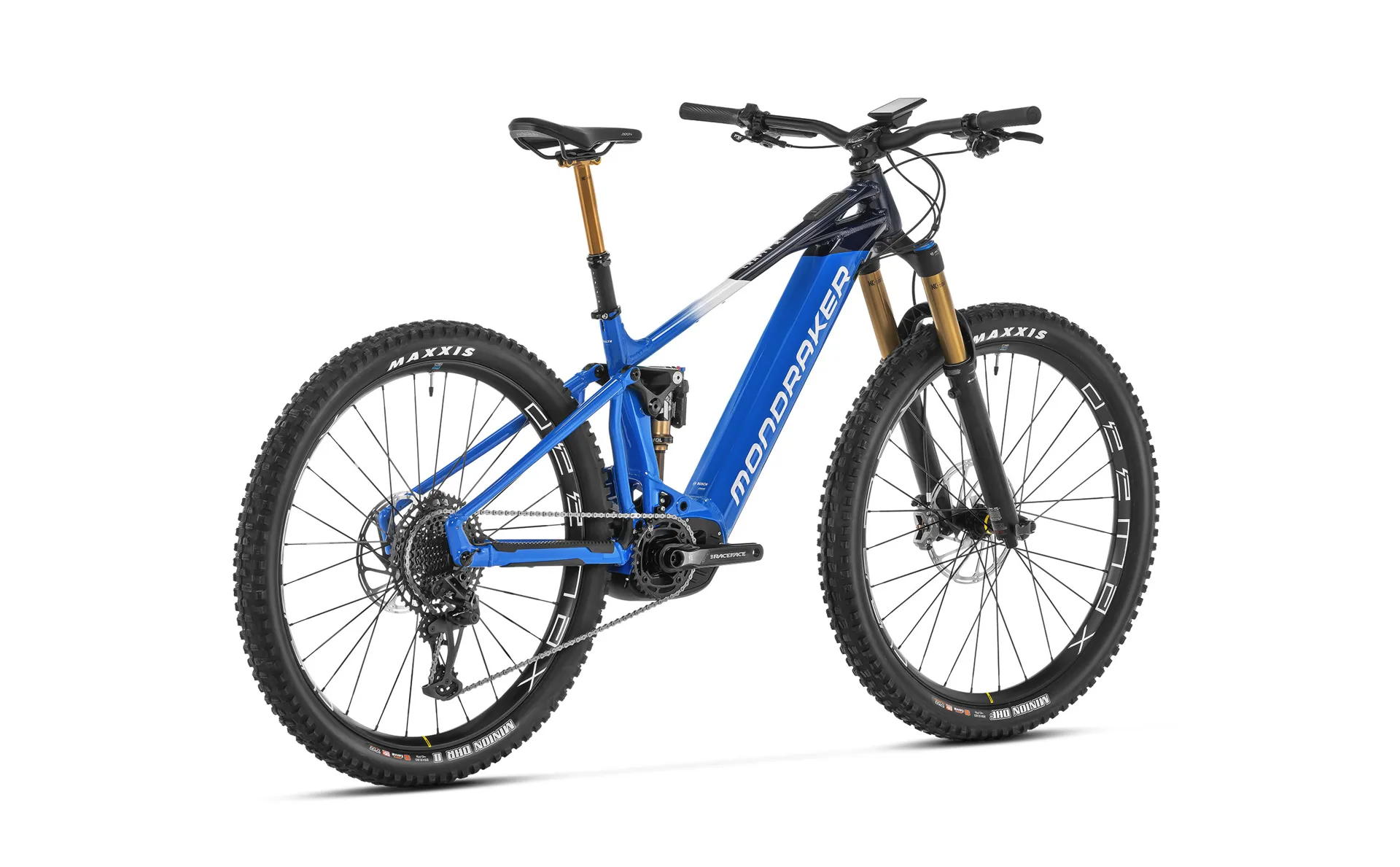

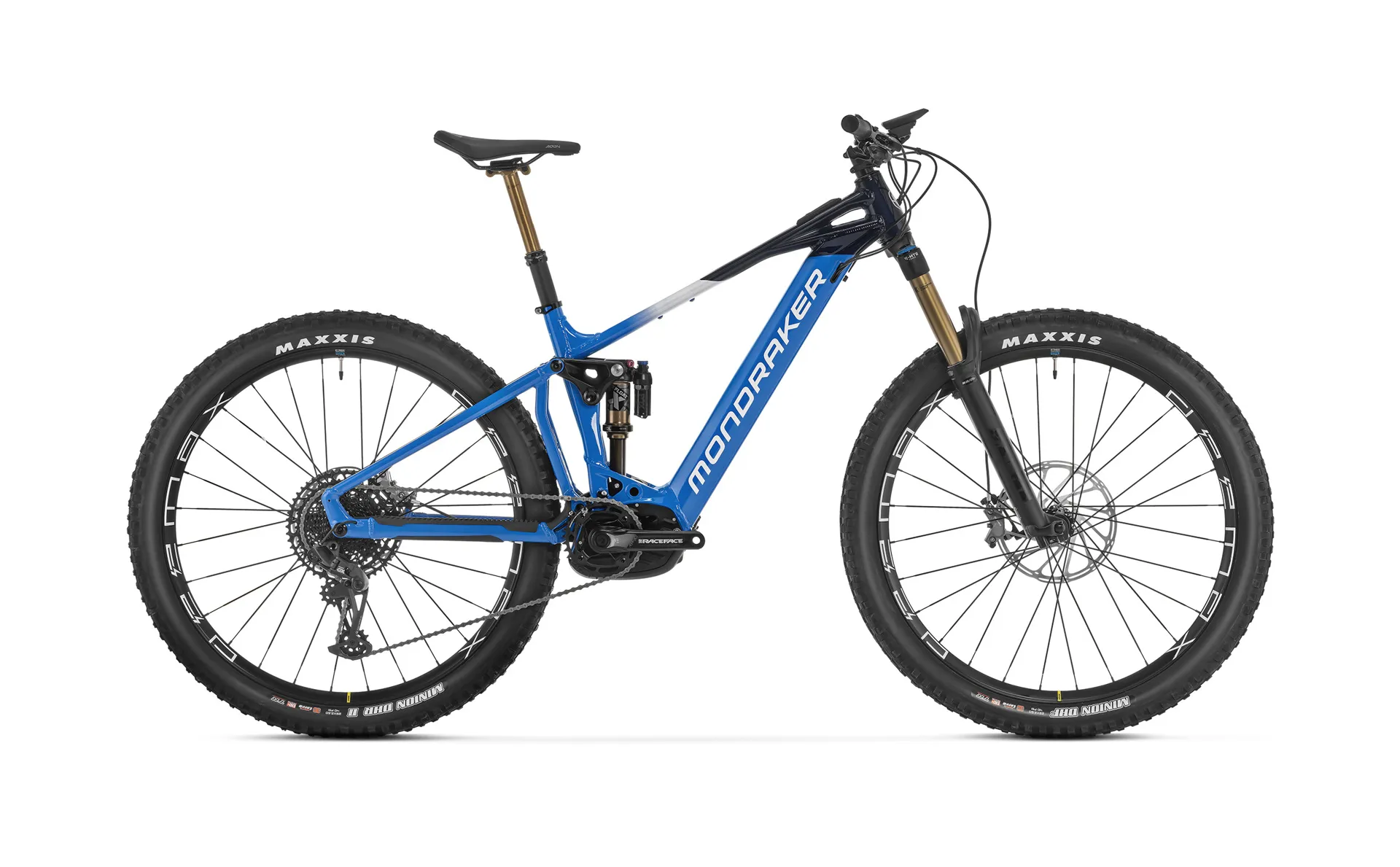

Mondraker Crafty RR Blue/White

Brand:Mondraker

Code:1024404CRAFTY RRBlue Whit

For long days riding over demanding terrains and big features, Mondraker present the Crafty electric mountain bike. All that Mondraker frame design expertise boosted with the rider favourite Bosch Smart power unit makes for an E-MTB ready for everything theEarth has to offer. The aluminium frame shares the exact same geometry as the carbon, though makes these amazing bikes available at a lower price point.

Taking full advantage of its optimized ZERO suspension system the Crafty RR soaks up the trail chatter like a dream. Then you add FORWARD GEOMETRY and a STEALTH ALLOY EVO frame to give you spectacular agility and the most fun ride you can imagine. The Fox 38 fork together with Fox’s Float X shock absorber, both from the Factory range, provide mind-blowing control whatever the situation and however gnarly things get

Bosch Smart System-

The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.

Technical Information
FRAMECrafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
SIZESS: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCKFox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGSmedium compression, medium rebound, air volume spacer 0.2
FORKFox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
HEADSETOnoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEMOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAROnoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPSOnoff Desert, 1lock-on, 135mm
SEATPOSTFox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
SADDLEFIZIK Terra Aidon X5 145mm
FRONT BRAKESram Code Bronze, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKESram Code Bronze, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVERSram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
RIMSMavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
SPOKESMavic J-bend double butted, contactless lacing
FRONT HUBMavic, Boost 15x110mm, IS 6 bolts
REAR HUBMavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
FRONT TIREMaxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TIREMaxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSETRace Face Aeffect ebike, 165mm
RINGSSram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAINSram NX Eagle, 12s, Powerlock
REAR DERRAILLEURSram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERSSram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
CASSETTESram PG-1230, 11-50T, 12s
DERAILLEUR HANGERMondraker M068
DISPLAYBosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
MOTORBosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
BATTERYBosch Powertube 750Wh
WEIGHT25,9 kg
Sizing Information
  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+
