Mondraker Crafty Carbon R 2025 - Black/Nimbus Grey/Tonic Gold

Season:2025

Brand:Mondraker

Code:25340CRAFTYCARBONRBLACK

Mondraker Crafty Carbon 2025 - The Icon Is Back!

The Mondraker Crafty Carbon has always been a standout in the world of enduro mountain biking. For 2025, Mondraker introduces a new Crafty Carbon R, taking everything that made the Crafty great and elevating it to new heights.

The new Crafty Carbon boasts a redesigned carbon fiber frame that's lighter, stronger, and more versatile than ever before. The frame is available in five different sizes, each with its own unique geometry to ensure the perfect fit for every rider. The Crafty Carbon also features a new Zero Suspension System that delivers unmatched grip and control in even the most challenging terrain.

Powering the Crafty Carbon is Bosch's latest-generation Performance CX Gen 5 motor, which is both more powerful and more efficient than ever before. The motor is paired with an 800Wh battery, giving you the range you need to tackle the toughest trails.

BOSCH CX PERFORMANCE: LATEST VERSION

A significant update to the new Crafty Carbon range, is the addition of the highly anticipated, totally revamped 2025 Bosch Performance CX Gen 5. The market leader among full power motors, the CX has been an intrinsic part of every Crafty Carbon since its launch in 2020. Bosch’s new motor incorporates an updated design architecture with two mounting points instead of three, a 100g reduction in weight and a reduction in its overall size.

This updatedBosch CXhas the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.

One additional function of the new motor is the ‘Hill Hold’ mode which, when activated by holding the minus button, keeps the bike from rolling backwards on slopes until you start pedalling. The same option also serves to stop the bike from rolling backwards while being pushed uphill.

Mondraker Crafty Carbon R 2025 - Black/Nimbus Grey/Tonic Gold

KEEPING EVERYTHING UNDERCONTROL: PURION 400 DISPLAY

One of the novelties of the new Bosch CX system and the new Crafty Carbon range is the all-new Purion 400 display. A complete revamp compared to previous generations; it sits on the bar next to the stem well out of harm’s way.

Easy to read thanks to its 1.6” colour screen, it can be configured to show information selected by the rider and also comes with audible beeps for notifications andsettings.

Mondraker Crafty Carbon R 2025 - Black/Nimbus Grey/Tonic Gold

REMOVABLE BATTERIES: 800Wh AND 600Wh. YOU CHOOSE

The new Crafty Carbon comes fitted with Bosch’s new 800Wh and 600Wh batteries. All-new and improved and assembled using 21700 cell technology, they offer increased efficiency and better energy density than ever before, resulting in a smaller package and reduced overall weight. Combined with the new motor software and electronics of the CX system, the Crafty Carbon is significant more efficient than previous generations. The reduced system weight of the motor and 800Wh battery combined results in a 500g weight saving compared to the previous generation Crafty with the 750Wh battery. The Crafty Carbon R and RR come fitted with the 800Wh battery for greater range, while the RR S, XR and RR SL models come with the 600Wh version to keep the weight down. That said, the batteries are removable (and interchangable) via a quick-lock system.

Mondraker Crafty Carbon R 2025 - Black/Nimbus Grey/Tonic Gold

AIM: OPTIMIZATION

As with the recently released SLY, Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.

A standout feature is the incorporation of two different chainstay lengths dependant on frame size. Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size. The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm, ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.

Technical Information
  • Frame
    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles
  • Shock
    Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
  • Fork
    Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
  • Motor
    Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
  • Battery
    Bosch Powertube 800Wh
  • Display
    Purion 400 / Bosch Mini Remote / Bosch System Controller
  • Headset
    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
  • Chainring
    RaceFace, 34T, steel, direct mount
  • Crank
    RaceFace Aeffect-R ebike, 160mm
  • Shifters
    Shimano XT M8100, Rapid Fire Plus, 12 Speed
  • Cassette
    Shimano XT M8100, 10-51T Hyperglide+, 12 Speed
  • Rear derailleur
    Shimano XT M8100, SGS, Shadow+, 12 Speed
  • Chain
    Shimano XT 8100, 12 Speed
  • Handlebar
    OnOff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
  • Stem
    OnOff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
  • Brakes
    Shimano XT M8120, 4 piston caliper / MT800 ICE-Tech 203mm CenterLock rotor
  • Wheels
    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes, Front Boost 15x110mm, Rear Boost 12x148mm
  • Front Tyre
    Maxxis Minion DHF, 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  • Rear Tyre
    Maxxis Minion DHR II, 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  • Seatpost
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
  • Saddle
    Ergon SM-10
  • Grips
    OnOff Forest, CNC lock-on, 135mm
Sizing Information

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+

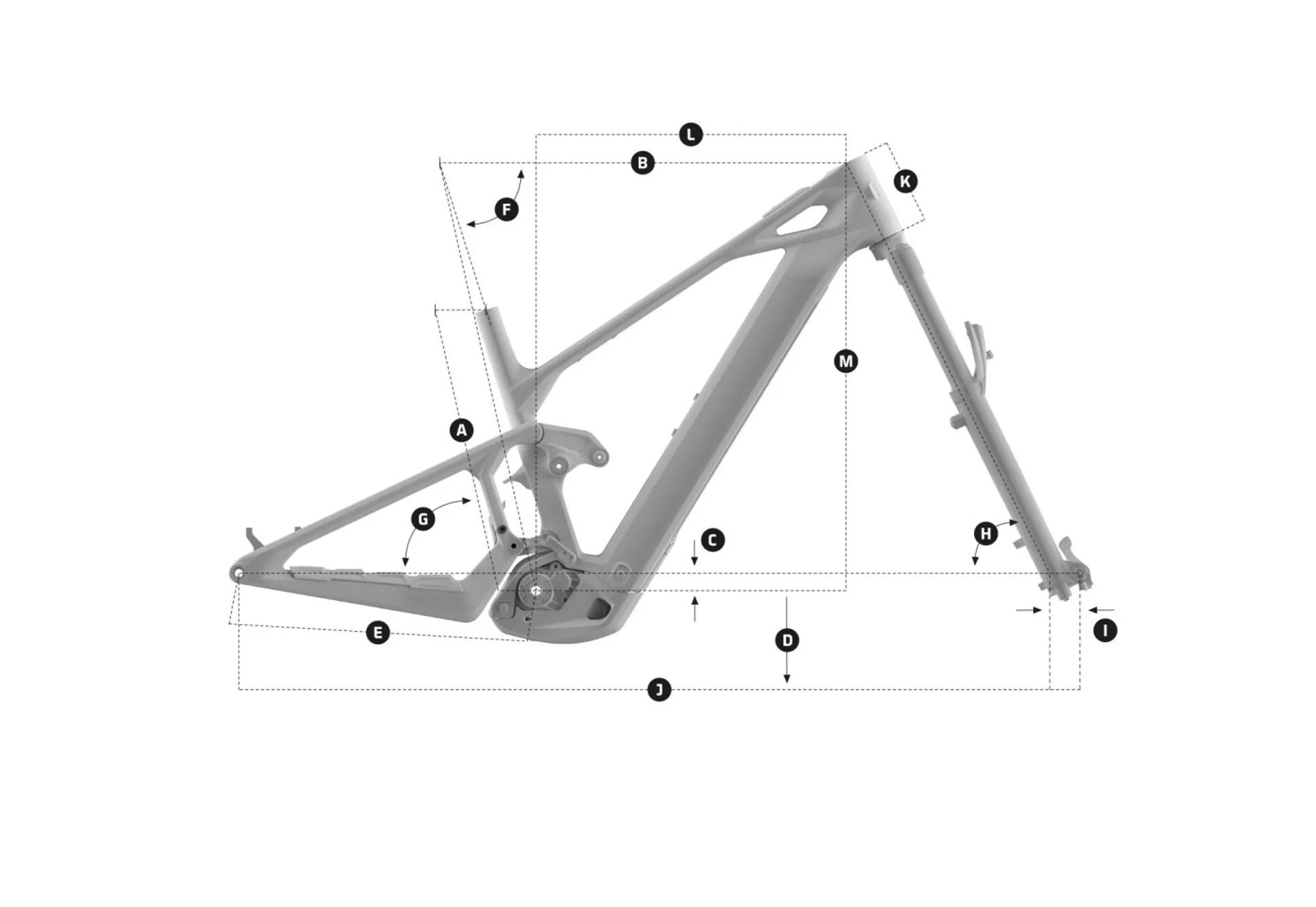

Mondraker Crafty Carbon R 2025 Geometry

e-MTB ENDURO / CRAFTY CARBON (STANDARD)

SizeSMM/LLXL
A Seat Tube Length380 mm410 mm435 mm460 mm490 mm
B Top Tube Length581 mm596 mm618 mm640 mm662 mm
C Bottom Bracket Drop-25 mm-25 mm-25 mm-25 mm-25 mm
D Bottom Bracket Height350 mm350 mm350 mm350 mm350 mm
E Chainstay Length455 mm455 mm455 mm465 mm465 mm
F Seat Tube Angle. Actual73°73°73°73°73°
G Seat Tube Angle. Effective77.95°77.95°77.95°77.95°77.95°
H Head Tube Angle64.5°64.5°64.5°64.5°64.5°
I Fork Offset44 mm44 mm44 mm44 mm44 mm
J Wheelbase1240 mm1255 mm1280 mm1314 mm1338 mm
K Head Tube Length120 mm120 mm130 mm140 mm150 mm
L Reach445 mm460 mm480 mm500 mm520 mm
M Stack638 mm638 mm647 mm666 mm665 mm

e-MTB ENDURO / CRAFTY CARBON (LOW)

SizeSMM/LLXL
A Seat Tube Length380 mm410 mm435 mm460 mm490 mm
B Top Tube Length582 mm597 mm619 mm641 mm663 mm
C Bottom Bracket Drop-30 mm-30 mm-30 mm-30 mm-30 mm
D Bottom Bracket Height345 mm345 mm345 mm345 mm345 mm
E Chainstay Length456 mm456 mm456 mm456 mm456 mm
F Seat Tube Angle. Actual72.65°72.65°72.65°72.65°72.65°
G Seat Tube Angle. Effective77.6°77.6°77.6°77.6°77.6°
H Head Tube Angle64.15°64.15°64.15°64.15°64.15°
I Fork Offset44 mm44 mm44 mm44 mm44 mm
J Wheelbase1241 mm1256 mm1281 mm1315 mm1339 mm
K Head Tube Length120 mm120 mm130 mm140 mm150 mm
L Reach441 mm456 mm476 mm496 mm516 mm
M Stack641 mm641 mm650 mm659 mm668 mm
