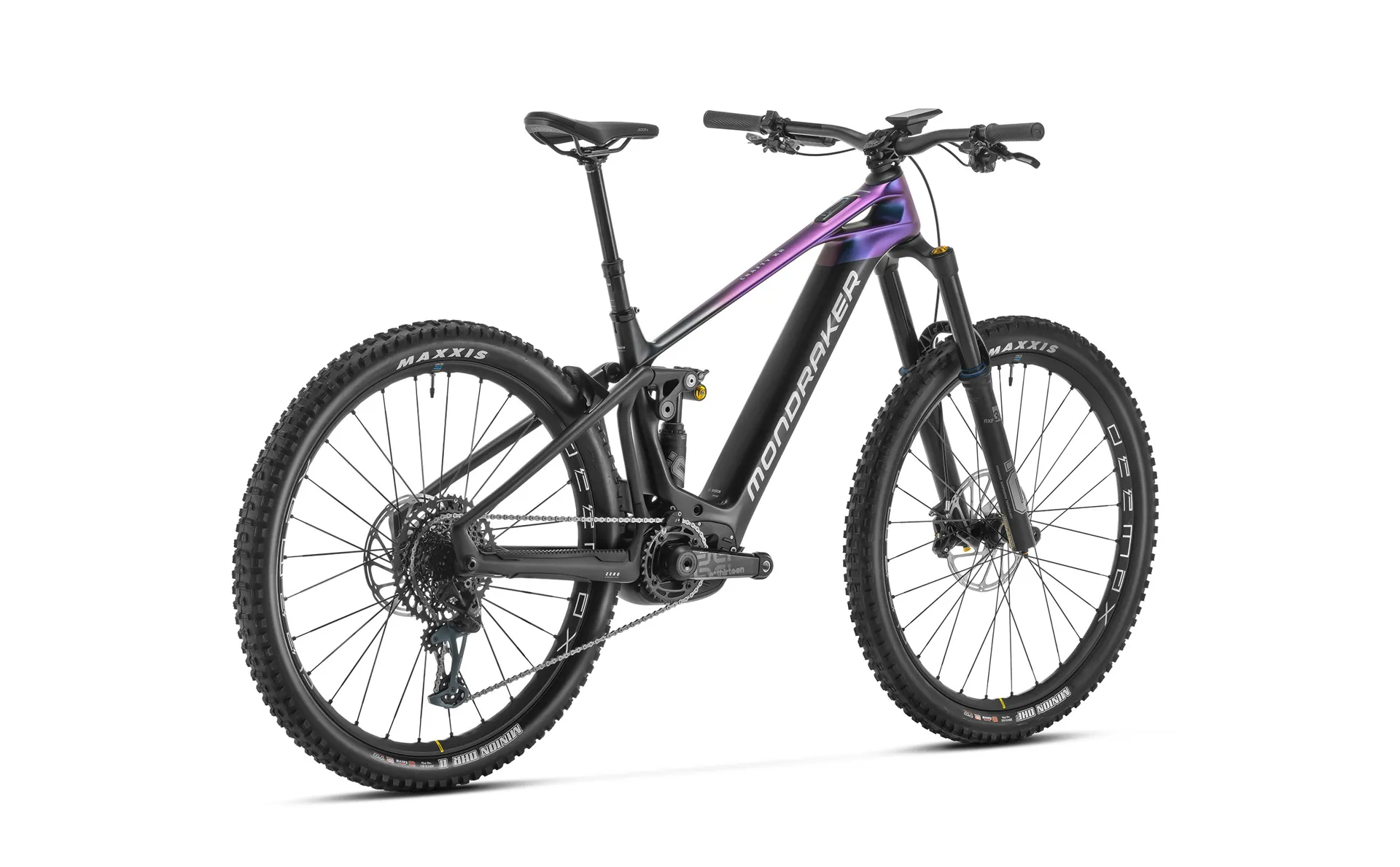

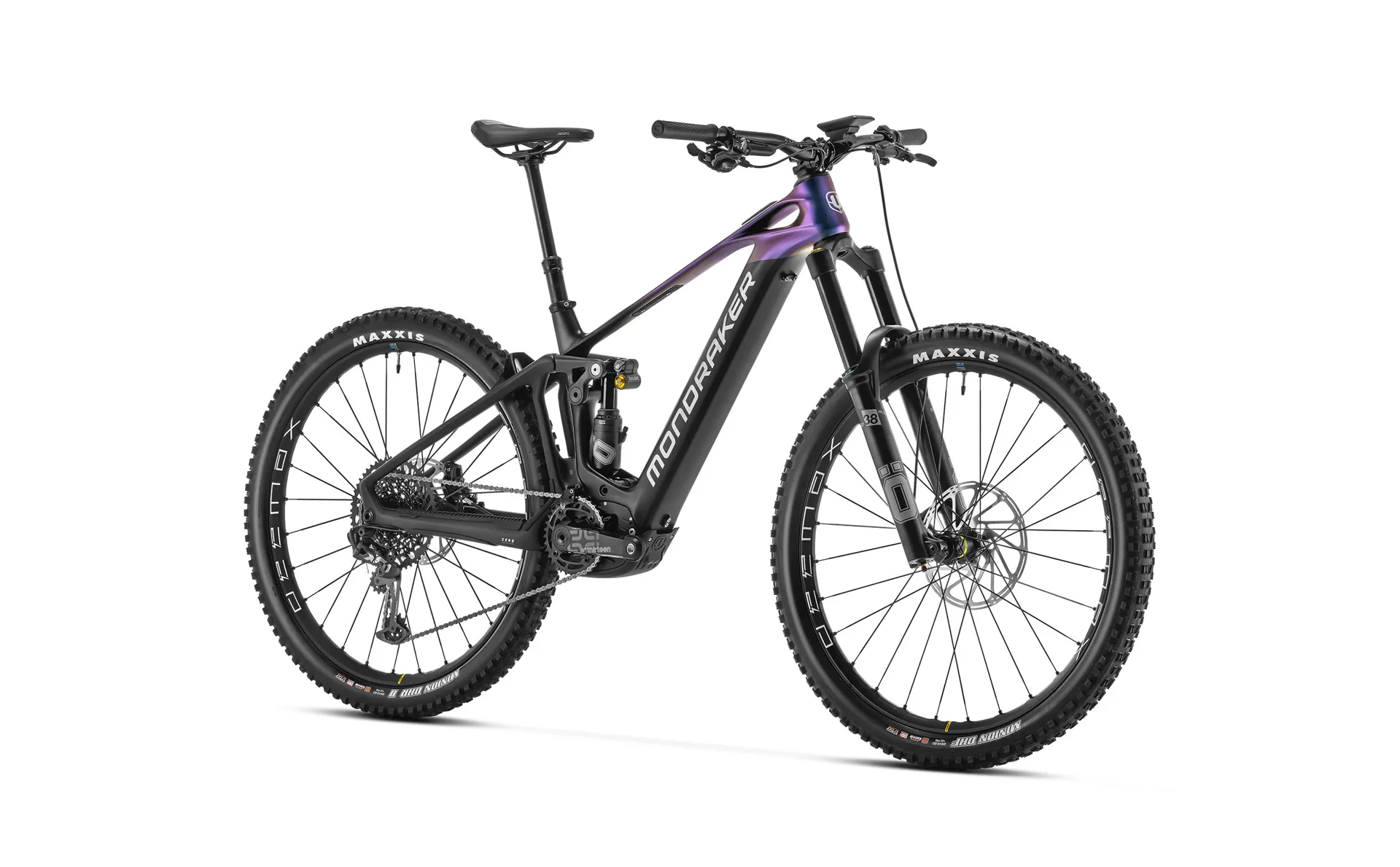

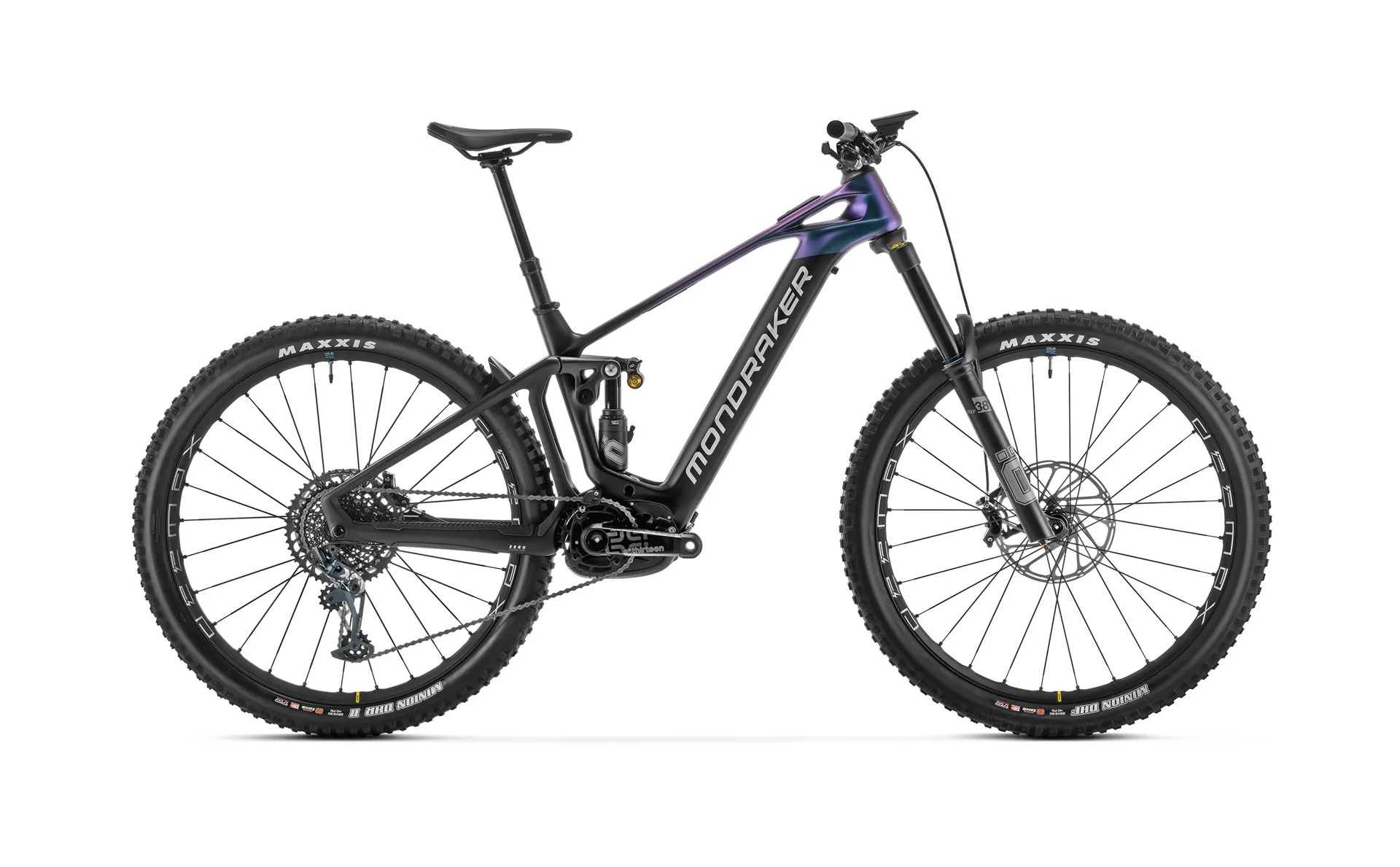

CRAFTY CARBON XR Black/Polaris

Brand:Mondraker

Code:1024436CRAFTY CARBON XRBl

For long days riding over demanding terrains and big features, Mondraker present the Crafty electric mountain bike. All that Mondraker frame design expertise boosted with the rider favourite Bosch Smart power unit makes for an E-MTB ready for everything theEarth has to offer.

The Crafty Carbon XR is a bestseller when it comes to E-MTB's. Offering a truly balanced setup it feels agile, reactive and efficient whether you’re riding uphill or down. The frame’s Zero Suspension System is optimized for you to enjoy the trail whatever surprises it brings. You’ve got Bosch’s Smart System motor with its all-new wireless Mini Remote control and integrated System Controller to keep your cockpit clear. Then you’ve got a 750Wh battery to keep the trails flowing by without ever having to worry about range anxiety.It's got everything you need ready to go.

Bosch Smart System-

The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.

Technical Information
FrameCrafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link,HHGinternal cable routing,MAXcapacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear ShockÖhlinsTTXAir 205×65mm. Settings: high speed compression lever with climb mode, low-speed
compression, rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock SettingsC20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
ForkÖhlinsRXF38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15×110mm axle,
offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression,
rebound, air preload, ramp chamber
HeadsetAcros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
StemONOFFKrypton FG 30mm,CNC, 31.8mm barbore
HandlebarONOFFKrypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GripsOnoff Desert, 1lock-on, 135mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm,
M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
SaddleFIZIKTerra Aidon X5 145mm
Front BrakeSram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor,
steel-backed metal sintered pads
Rear BrakeSram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor,
steel-backed metal sintered pads
RimsMavic E-Deemax S 29, 30mm internal width, Maxtal welded,PFP, tubeless, 28 spokes
SpokesMavic straightpull duble butted, contactless lacing
Front HubMavic, Boost 15×110mm, IS 6 bolts
Rear HubMavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front TyreMaxxis MinionDHF29×2.6, tubeless ready, 3CMAXXTERRA,EXO+ Protection, 120TPI, folding bead
Rear TyreMaxxis MinionDHRII 29×2.6, tubeless ready, 3CMAXXTERRA,EXO+ Protection, 120TPI, folding bead
CranksetE.13TRSRace carbon ebike, 165mm
ChainringSRAMX-Sync 2 Eagle 34T, steel, narrow-wide, 104BCD
ChainSRAMNX Eagle, 12s, Powerlock
Rear DerailleurSRAMX01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
ShifterSRAMTrigger GX Eagle, 12s, X-Actuation 1:1, single click
CassetteSRAMXG-1275, 10-52T, 12s
BatteryBosch Powertube 750Wh
Derailleur HangerSramUDH
DisplayBosch Kiox 300
MotorBosch Performance Line CX-Race (25Km/h) Smart System
BatteryBosch Powertube 750Wh (battery weight 4.4kg)
ChargerBosch 4A (2.1h 50% – 6h 100%)
DisplayBosch System Controller / Bosch Kiox 500
RemoteBosch Mini Remote
Quoted Weight23.3kg
Max System Weight150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Sizing Information

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+

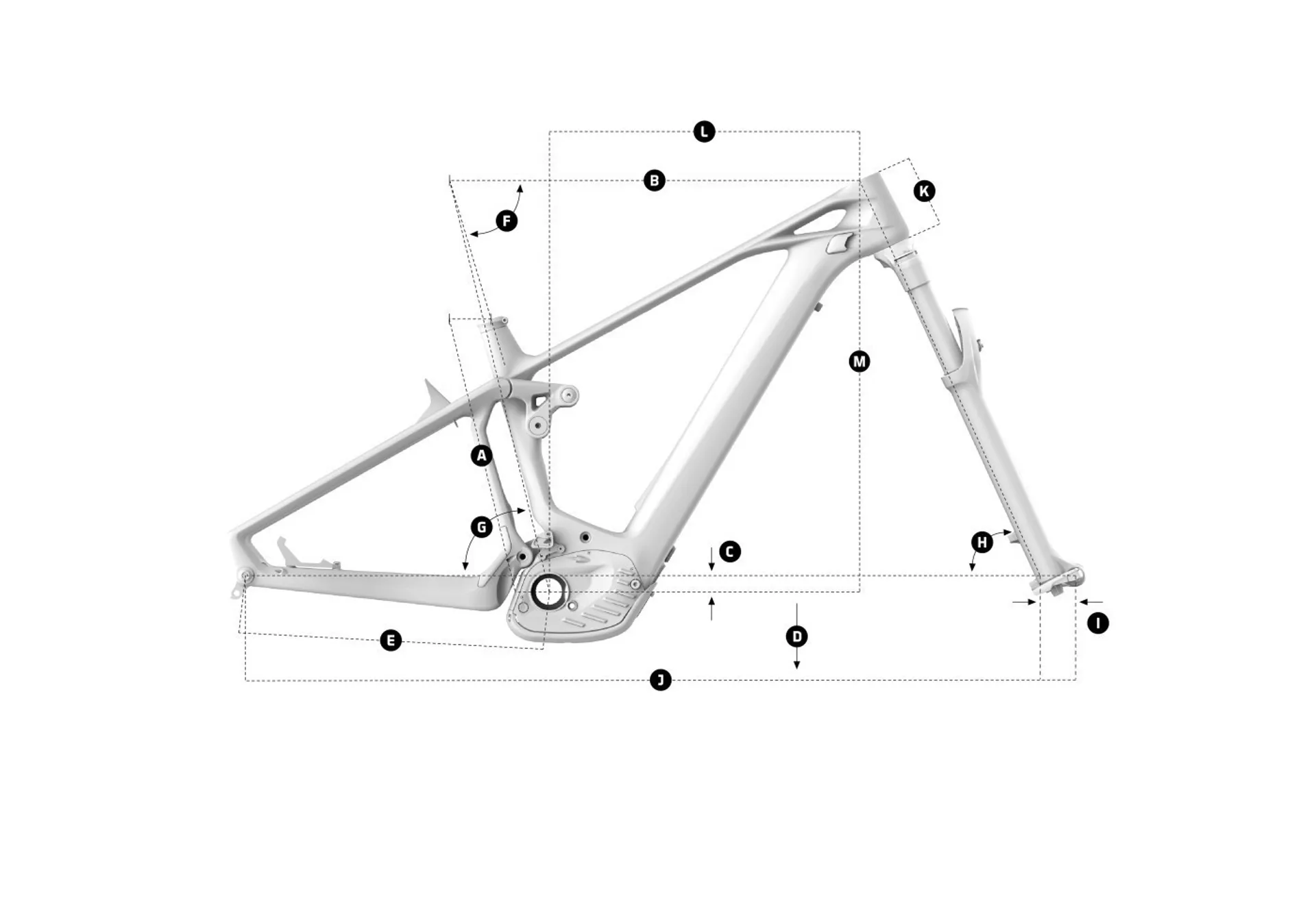

Mondraker Crafty Carbon XR
FRAME SIZE
SMLXL
ASeattube length380 mm420 mm450 mm480 mm
BToptube length615 mm635 mm660 mm680 mm
CBottom bracket drop-17 mm-17 mm-17 mm-17 mm
DBottom bracket height358 mm358 mm358 mm358 mm
EChainstay length455 mm455 mm455 mm455 mm
FSeat tube angle72,5°72,5°72,5°72.5°
GEffective seattube angle75°75°75°75°
HHeadtube angle64,5°64.5°64,5°64.5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1235 mm1255 mm1280 mm1300 mm
KHeadtube length110 mm110 mm130 mm130 mm
LReach440 mm460 mm480 mm500 mm
MStack632 mm632 mm650 mm650 mm
