Chaser RX Grey/Black/Yellow
Chaser RX Grey/Black/Yellow
Mondraker

Chaser RX Grey/Black/Yellow

£5,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS
----

Our policy lasts 30 days.

If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery

Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.
If you’ve done all of this and you still have not received your refund yet, please contact us at info@spokesofbagshot.com.

Sale items (if applicable)

Sale price items will be refunded at the price paid.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at customerserivce@spokesonline.com, and send your item to: Spokes Online, 55 High Street, Bagshot, GU19 5AH, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.
If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Spokes Online, 55 High Street, Bagshot, GU19 5AH, United Kingdom.
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.
Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

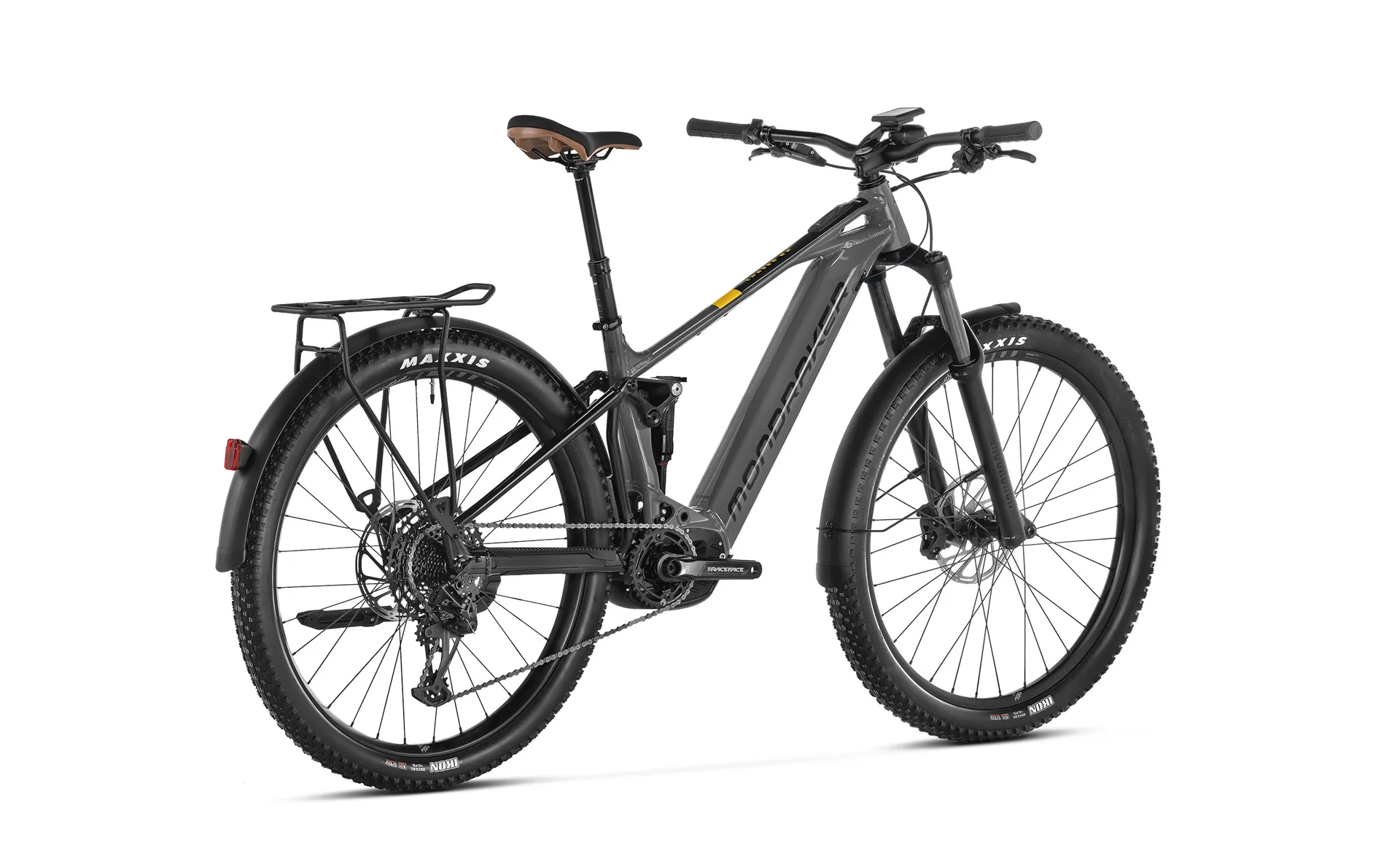

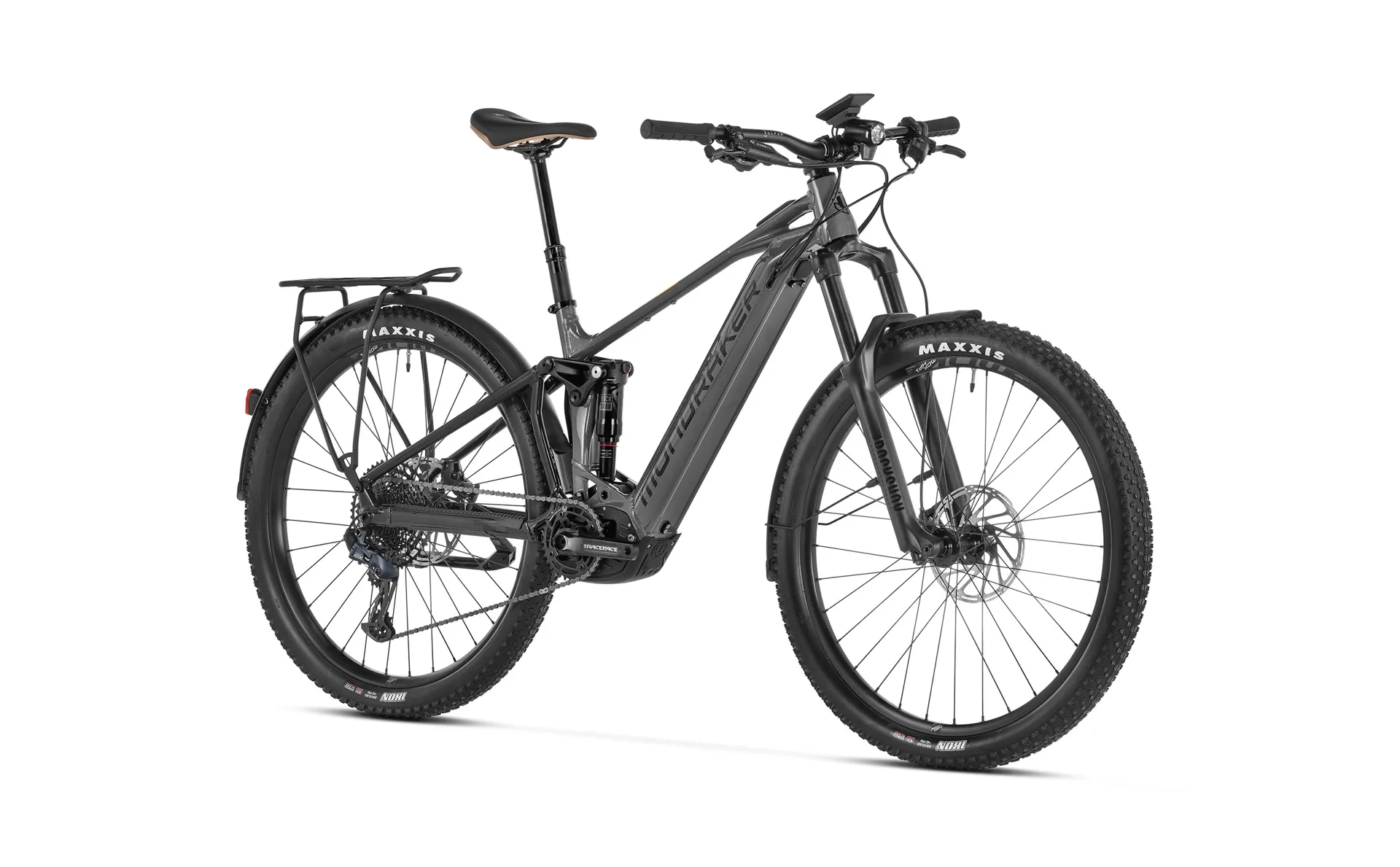

Chaser RX Grey/Black/Yellow

Brand:Mondraker

Code:1024352CHASER RXGray Blac

With double suspension, 2.6” wide tyres and the latest generation Bosch motor, getting out of town at the weekend to disconnect from your routine will be easier than ever before, as well as safer and more comfortable.

The CHASER RX raises the Mondraker Urban Cross concept to new unexpected levels.

Technical Information
FrameChaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link,HHGinternal cable routing,MAXcapacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Rear ShockRockShox Deluxe Select R DebonAir, 205×60mm. Settings: Low-speed rebound, air preload. Trunnion
top mount, 25×10mm bottom bushings
Shock SettingsDebonAir Progressive, Light compression, Linear rebound, 1 Token
ForkRockShox 35 Silver TK 29, 150mm, TurnKey, Solo Air, tapered steerer tube, Boost 15×110mm axle,
35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock,
rebound, air preload
HeadsetONOFFSaturn tapered for 1-1/8” to 1-1/2” head tube,ACBsealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
StemONOFFSulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HandlebarONOFFSulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GripsOnoff Twin, 1lock-on, 135mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever, S size: 405×95-125mm, M size:
458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
SaddleMDKurban
Front BrakeSram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear BrakeSram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
RimsMDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
SpokesCN round stainless steel
Front HubFormula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts
Rear HubFormula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts
Front TyreMaxxis Ikon 29×2.6, tubeless ready, dual compound,EXOprotection, 60TPI, folding bead
Rear TyreMaxxis Ikon 29×2.6, tubeless ready, dual compound,EXOprotection, 60TPI, folding bead
CranksetRace Face Aeffect ebike, 165mm
ChainringSRAMX-Sync 2 Eagle 34T, steel, narrow-wide, 104BCD
ChainSRAMSX Eagle, 12s, Powerlock
Rear DerailleurSram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
ShifterSRAMTrigger SX Eagle, 12s, X-Actuation 1:1, single click
CassetteSRAMPG-1210, 11-50T, 12s
Derailleur HangerMondraker M068
Front Light50LUX output DC 6-12V, waterproof Alloy cage
Rear LightFender Mount, w/ Reflective, e-bike version, 6-12V
MudguardsAlloy blackMDKcustom fenders
RackAlloyMDKrear Rack, Max loading 25kg
KickstandMassload KSA18-40
DisplayBosch System Controller / Bosch Kiox 500
RemoteBosch Mini Remote
MotorBosch Performance Line CX Cruise (25Km/h) GEN4 BS3
BatteryBosch Powertube 750Wh
PedalsUrban pedal resin black
Quoted Weight______
Max System Weight150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Sizing Information
Frame SizeMinimum HeightMaximum Height
S165cm (5’5”)170cm (5’7”)
M170cm (5’7”)180cm (5’11”)
L175cm (5’9”)187cm (6’1”)
XL185cm (6’1”)195cm (6’5”)

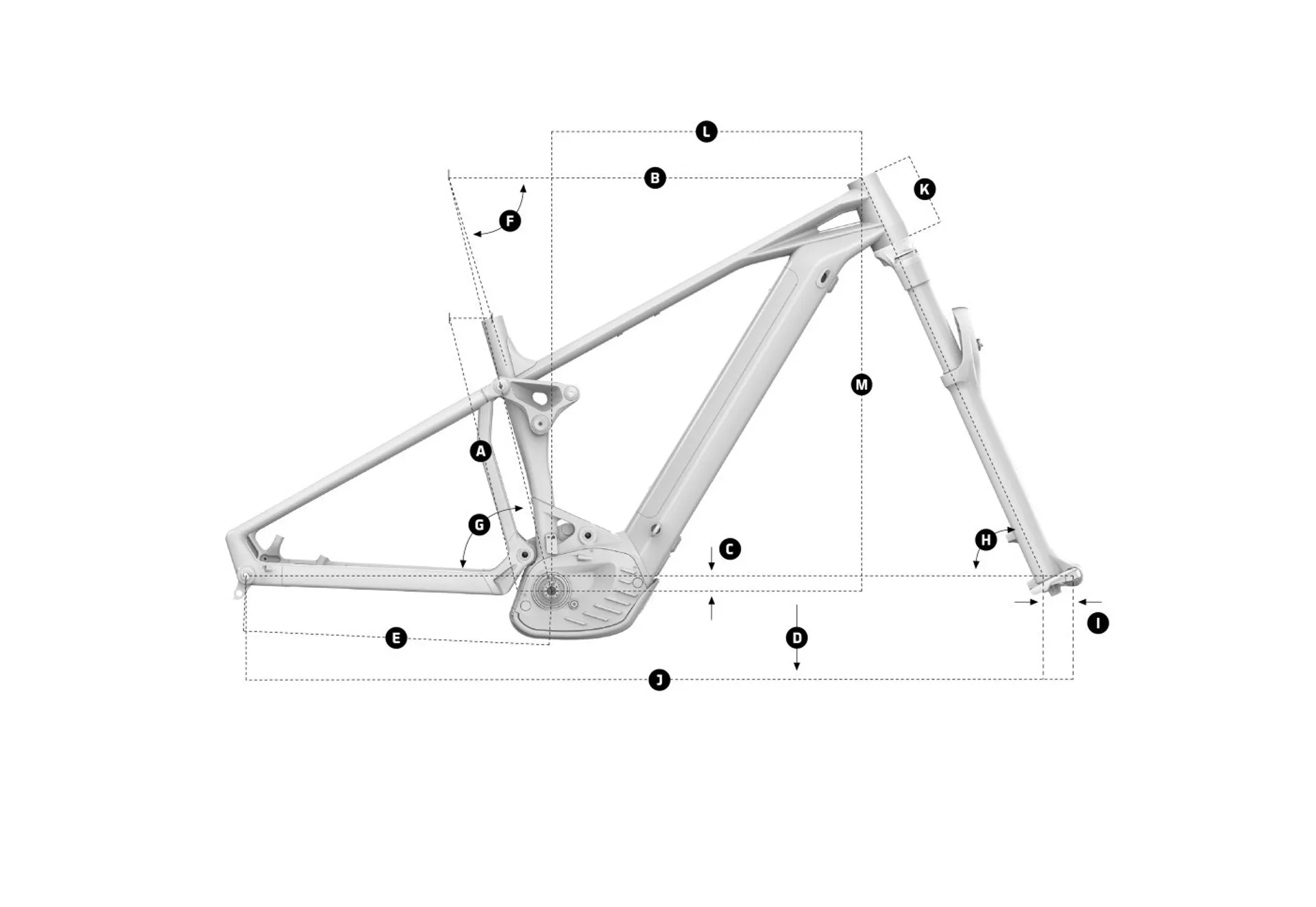

Frame SizeDimensionSMLXL
ASeat Tube Length380mm420mm450mm490mm
BToptube Length605mm625mm650mm670mm
CBottom Bracket Drop-25mm-25mm-25mm-25mm
DBottom Bracket Height350mm350mm350mm350mm
EChainstay Length455mm455mm455mm455mm
FSeat Tube Angle73.5°73.5°73.5°73.5°
GEffective Seat Tube angle76°76°76°76°
HHeadtube Angle65.5°65.5°65.5°65.5°
IFork Offset44mm44mm44mm44mm
JWheelbase1225mm1245mm1265mm1285mm
KHeadtube length110mm110mm130mm130mm
LReach450mm470mm490mm510mm
MStack622mm622mm640mm640mm
